Novel Flute Design Indoor Optical Cable Anti - Ultraviolet Harmless To Environment
Novel Flute Design Indoor Optical Cable Anti - Ultraviolet Harmless To Environment
Novel Flute Design Indoor Optical Cable Anti - Ultraviolet Harmless To Environment
Novel Flute Design Indoor Optical Cable Anti - Ultraviolet Harmless To Environment
Specifications
Brand Name :
OMC or OEM
Model Number :
OM1 12F Mini-breakout 0.9mm LSZH Orange
Place of Origin :
China
MOQ :
500M
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
1000000KM per month
Delivery Time :
3 days
Packaging Details :
1KM in a wooden drum
Place of Origin: :
Guangdong, China (Mainland)
Brand Name: :
OEM or OMC
Model Number: :
Fiber Optic Cable
Cable Type: :
Mini break out cable
Fiber Type: :
OM1 12F Mini-breakout 0.9mm LSZH Orange
Fiber Count: :
12 Fiber
Flammability Rating: :
LSZH
Coating Color: :
Orange
Tensile Strength (long/short term): :
400/1320N
Crush Load (long/short term): :
200/1000 (N/100mm)
200/1000 (N/100mm): :
10D/20D (mm)
Operating Temperature: :
-20 to +60°C
Certification :
ROHS and ISO
Description

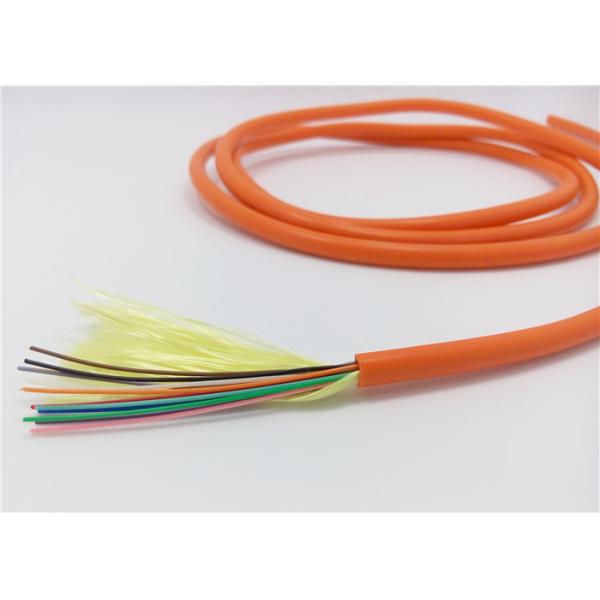

OM1 12F Mini-breakout 0.9mm LSZH Orange Multi-fiber Indoor Fiber Cable

Non-unitized Tight-Buffered Mini break out (4-48 fibers)

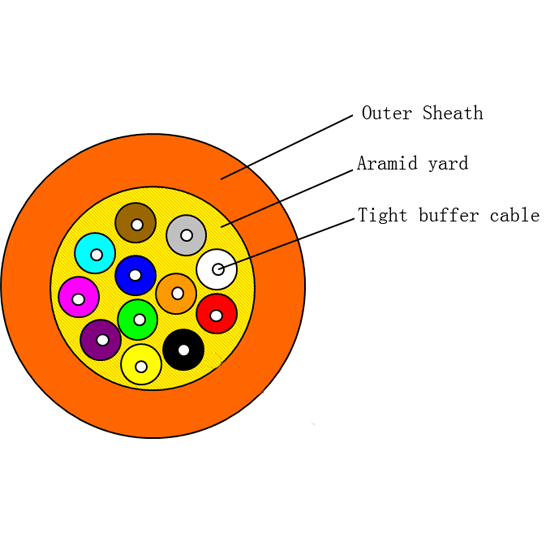

Non-unitized Tight-Buffered Mini break out cable contains several tight-buffered fibers bundled under the same jacket with Kevlar strength members and sometimes fiberglass rod reinforcement to stiffen the cable and prevent kinking. With aramid yarn as a reinforcing member, the cable is light weight, softness and easy to peel. It is widely used as pigtails and jumpers for communication equipments.

Unitized Tight Buffered Distribution Indoor Fiber Cable

Unitized Tight Buffered Distribution Indoor Fiber Cable contains several tight-buffered fibers bundled under the same jacket with Kevlar strength members and sometimes fiberglass rod reinforcement to stiffen the cable and prevent kinking. Since the fibers are not individually reinforced, these cables need to be terminated inside a fiber enclosure to protect individual fibers and for distribution use in datacenter.

Standards

Comply with standard GR-409, IEC 60794-2-20/21, meet the requirements of UL approval for OFNR.

Characteristics

- Unitized design for distributing cables.

- FRP, fillers used as strength members

- Flexible, flame-retardant & color coded outer jacket

- 900μm tight buffered fibers can be directly terminated

- Adopt strict process and raw materials control to guarantee the lifespan of 15 years

- Compact structure, flexible, small bending radius, excellent stress, strain properties

- The jacket anti-corrosion, anti-water, anti-ultraviolet radiation, flame-retardant and harmless to environment

- All dielectric structure design, without electromagnetic induction effect

Novel Flute Design Indoor Optical Cable Anti - Ultraviolet Harmless To Environment

Novel Flute Design Indoor Optical Cable Anti - Ultraviolet Harmless To Environment

Specification

Fiber Type G652D,G655,G657,OM1,OM2,OM3,OM4
Coating Material PVC, OFNR,OFNP,LSZH,LSOH
Fiber cores No. 4 6 8 12 16 24 48
OD (mm) 4.8±0.2 5.2±0.2 6.2±0.2 6.8±0.2 7.4±0.4 8.2±0.4 12.5±0.5
Max Tensile Strength (N) Short term 270 330 480 600 660 720 1200
Long term 90 110 160 200 220 240 520
Min Bending Radius (mm) Dynamic 20D 20D 20D 20D 20D 20D 20D
Static 10D 10D 10D 10D 10D 10D 10D
Max crush resistance (N/100mm) 1000
Temperature range PVC: -20°C ~+90°C ;LSZH:-20°C ~+70°C
Application:

-For premises wiring

-As backbone in LANs

-Optical communication cables used in fiber enclosures

-Internal cable for horizontal distribution or riser applicationsation

OMC offers two types of cable package. Package 1 is usually for indoor, light weight cables. Package 2 is usually for outdoor, heavy weight cables. Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements.

Novel Flute Design Indoor Optical Cable Anti - Ultraviolet Harmless To Environment

Purchasing Help

Ideal Solution for Distributing Cables

In situations where the fibers will be mated and unmated frequently, or where there is general access to equipment such as in datacenter, it is advisable to place terminated fibers in a fiber enclosure to avoid damage to the connector or fiber interface. The tight buffered distribution cable are widely used in building backbone and horizonatal cabling to distributing cable from telecommunications room to working areas.
