Unitube No - Armored Outdoor Fiber Optic Cable
Unitube No - Armored Outdoor Fiber Optic Cable
Specifications
Brand Name :
OMC or OEM
Model Number :
Unitube No-armored Cable GYXY
Place of Origin :
China
MOQ :
500M
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal, Credit Card
Supply Ability :
1000000KM per month
Delivery Time :
Within a week
Packaging Details :
1KM in a wooden drum
Place of Origin: :
Guangdong, China (Mainland)
Brand Name: :
OEM or OMC
Model Number: :
Unitube No-armored Cable GYXY
Fiber Count: :
2-144F
Flammability Rating: :
LSZH
Coating Color: :
Black
Tensile Strength (long/short term): :
400/1320N
Crush Load (long/short term): :
200/1000 (N/100mm)
200/1000 (N/100mm): :
10D/20D (mm)
Operating Temperature: :
-20 to +60°C
Certification :
ROHS and ISO
Description

Unitube No-armored Cable GYXY Outdoor Fiber Cable

Product details

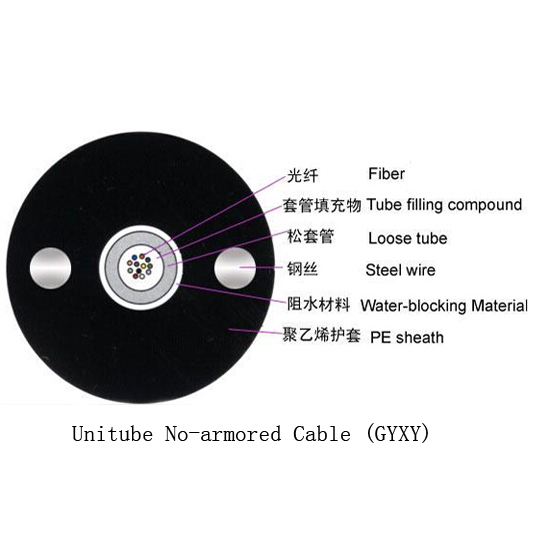

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. Over the tube, water-blocking material is applied to keep the cable watertight. Two parallel steel wires are placed at the two sides. The cable is completed with a polyethylene (PE) sheath.

Characteristics

Good mechanical and temperature performance

High strength loose tube that is hydrolysis resistant

Special tube filling compound ensure a critical protection of fiber

Two parallel steel wires ensure tensile strength

PE sheath protects cable from ultraviolet radiation

Small diameter, light weight and friendly installation

Long delivery length

Technical Parameters.

Part No. Fibers

Cable OD

(mm)

Weight

Kg/km

Tensile strength

Long term/short term

(N/1m)

Crush resistance

Long term/short term

(N/1m)

Bending Radius

Static/Dynamic

(mm)
GYXY-2~12X 2~12 9 77 600/1500 300/1000 10D/20D
GYXY-2~12X 2~12 10 104 1000/3000 1000/3000 10D/20D

Note:

Suffix X denotes fiber type.

The nominal value of the PE sheath thickness is 0.8mm.

Unitube No - Armored Outdoor Fiber Optic Cable

Package

OMC offers two types of cable package. Package 1 is usually for indoor, light weight cables. Package 2 is usually for outdoor, heavy weight cables. Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements.

Unitube No - Armored Outdoor Fiber Optic Cable
