Specifications
Brand Name :
OMC or OEM
Model Number :
H002
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal, Credit Card
Supply Ability :
100000 pcs per month
Delivery Time :
3-7 days
Packaging Details :
One piece in a paper carton
Place of Origin: :
Guangdong, China (Mainland)
Brand Name: :
OMC or OEM
Model Number: :
H002
Application: :
Telecom
Certification: :
RoHS
Color: :
Black
Material: :
PC, ABS, PPR
Warranty: :
3 Years
Dimension: :
320×210×85 (mm)
Weight: :
2650g – 2800g
cable size: :
8mm~20mm
Capacity: :
Bunchy: 12-120 (cores)
cable port: :
6 pieces
Description

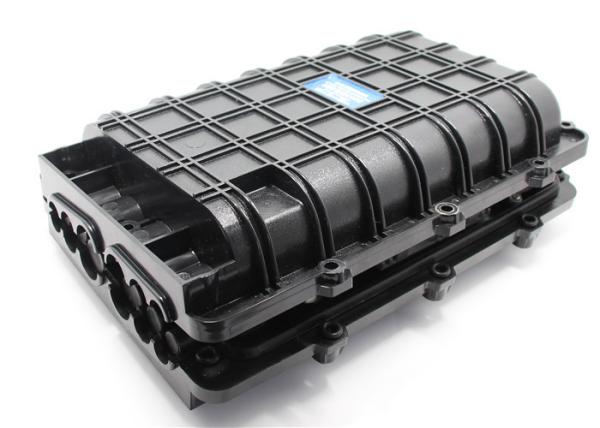

H002 Inline type 6 port Fiber Optic Joint Closure

FOSC is a device which have function of optical transmission link, providing several of fiber optical cable through, branching and related connecting protection. IP safety rate is IP65-68. Some of them can be installed 1x2:32 PLC splitter or 2X2:16 PLC splitter. The product is excellent in sealing performance, easy for installation, wide application. It's your best choice for fiber connection.

1. Scope of application

This Installation Manual is suit for the Fiber Optic Splice Closure (Hereafter abbreviated as FOSC), as the guidance of proper installation.

The scope of application is: aerial, underground, pipeline, handhole. The ambient temperature ranges from -40 to 65℃.

OMCH002

2. Basic structure and configuration

2.1 Dimension and capacity

Outside dimension (LxW xH) 320×210×85 (mm)
Weight (excluding outside box) 2650g – 2800g
Number of inlet/outlet ports 6 (pieces) on one side
Diameter of fiber cable Φ8—Φ20 (mm)
Capacity of FOSC Bunchy: 12—120 (Cores)

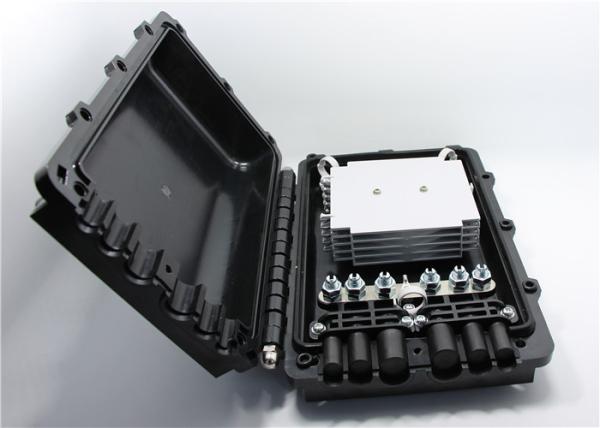

2.2 Main components

No. Name of components Quantity Usage Remarks
1 Housing(bottom) 1 set Protecting fiber cable splices in whole

Internal diameter:

240*148*86(mm)
2 Housing(cover) 1 set Protecting fiber cable splices in whole

Internal diameter:

240*148*86(mm)
3

Fiber optic splice tray

(FOST)

Max 8 trays (bunchy) or 6 trays(ribbom)

 Fixing heat shrinkable protective sleeve and holding fibers
4 Seal fitting 1 set Sealing between FOSC cover and FOSC bottom
5 Port plug 6 pieces Sealing empty ports
6 Fixed bolt 1 set Fixing the housing

2.3 Main accessories and special tools

No. Name of accessories Quantity Usage Remarks
1 Heat shrinkable protective sleeve Protecting fiber splices Configuration as per capacity
2 Nylon tie Fixing fiber with protective coat Configuration as per capacity
3 Insulation tape 1 roll Enlarging diameter of fiber cable for easy fixing
4 Seal tape 1 roll Enlarging diameter of fiber cable which fits in with seal fitting Configuration as per specification
5 Hanging hook 1 set For aerial use
6 Earthing wire 1 piece Putting through between earthing devices
7 Abrasive cloth 1 piece Grind the fiber
8 Labeling paper 1 piece Labeling fiber
9 M6 Special wrench 1 pieces Fixing small bolts of housing
10 M10 Special wrench 1 pieces Tighting nut of reinforecd core
11 Instruction manual 1 pieces standard installation

2.4 package

NO. specification carton size(cm) capacity N.W Remarks
1 inner box 33*23*10.5 1pcs 2.75-2.9kg Configuration as per weight
2 outer box 73*35*45 12pcs 33-34.8kg Configuration as per weight
