FTTH Fiber Optic Patch Cables Figure 8 Aerial Self Supporting Drop Cord GJYXFCH
FTTH Fiber Optic Patch Cables Figure 8 Aerial Self Supporting Drop Cord GJYXFCH
FTTH Fiber Optic Patch Cables Figure 8 Aerial Self Supporting Drop Cord GJYXFCH
FTTH Fiber Optic Patch Cables Figure 8 Aerial Self Supporting Drop Cord GJYXFCH
Specifications
Brand Name :
OMC or OEM
Place of Origin :
China
Payment Terms :
Western Union, T/T, L/C
Description

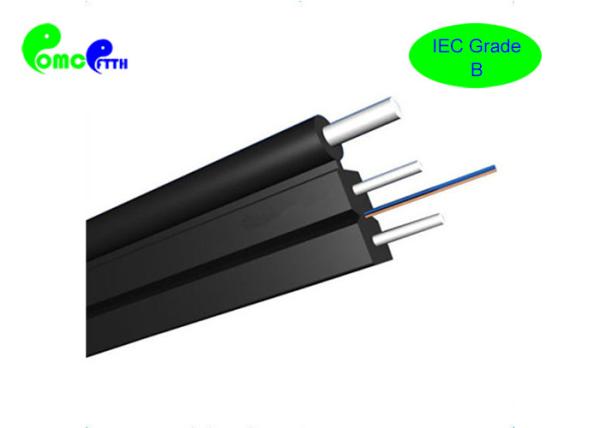

FTTH Fiber Optic Figure 8 Aerial Self-supporting Drop cable-GJYXFCH

Self-supporting FTTH drop cable is constructed with one or two single-mode fiber (G.657A ). The cable is protected by a dielectric strength member made of fiberglass reinforced plastic (FRP), steel wire and a LSZH outer jacket. Designed for outdoor installation, the cable is well suited for connections between the dome closure and small dwelling unit/warehouse and independent villas.

Characteristics

l Self-supporting structure, light weight, easy to install

l Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property

l Steel wire as additional strength member has high tensile strength

l Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber

l Simple structure, light weight and high practicability

l Fibers count is 1-12 cores, can be other fiber cores upon request.

l Novel flute design, easily strip and splice, simplify the installation and maintenance

l Durable and flame retardant LSZH sheath, low smoke zero halogen

Parameters:

Cable

Fibers

Cable Size(mm)

Cable Wt(kg/km)

Tensile strength

Long/short term(N)

Crush Strength

(N/100m)

Banding Radius

Static/Dynamic (mm)

GJYXFCH -1

1

(2.0±0.1)x(5.2±0.1)

20

300/600

2200

15/30

GJYXFCH -2

2

(2.0±0.1)x(5.2±0.1)

20

300/600

2200

15/30

Storage Temp: -20°C ~+50°C

Other fibers please contact our sales representative.

Application

Outdoor aerial application

Used in the FTTH projects

High speed optical routes in building

High performance optical network operation

Ideal Solution by Using Self-supporting FTTH Drop Cable

A high-capacity FTTH network gives you opportunities to build a competitive advantage and maintain an eco-sustainable network that consumes less power. With simple structure and light weight, self-supporting FTTH drop cable is highly recommended for the connection of outdoor and indoor cabling.

FTTH Fiber Optic Patch Cables Figure 8 Aerial Self Supporting Drop Cord GJYXFCH
