4.5X8.1mm FTTH Flat Aerial Drop Cable 1-8 Core Optical Fiber G657A G652D For FTTA
4.5X8.1mm FTTH Flat Aerial Drop Cable 1-8 Core Optical Fiber G657A G652D For FTTA
4.5X8.1mm FTTH Flat Aerial Drop Cable 1-8 Core Optical Fiber G657A G652D For FTTA
4.5X8.1mm FTTH Flat Aerial Drop Cable 1-8 Core Optical Fiber G657A G652D For FTTA
4.5X8.1mm FTTH Flat Aerial Drop Cable 1-8 Core Optical Fiber G657A G652D For FTTA
4.5X8.1mm FTTH Flat Aerial Drop Cable 1-8 Core Optical Fiber G657A G652D For FTTA
4.5X8.1mm FTTH Flat Aerial Drop Cable 1-8 Core Optical Fiber G657A G652D For FTTA
4.5X8.1mm FTTH Flat Aerial Drop Cable 1-8 Core Optical Fiber G657A G652D For FTTA
4.5X8.1mm FTTH Flat Aerial Drop Cable 1-8 Core Optical Fiber G657A G652D For FTTA
4.5X8.1mm FTTH Flat Aerial Drop Cable 1-8 Core Optical Fiber G657A G652D For FTTA
Specifications
Brand Name :
OMC or OEM
Model Number :
FTTH Flat aerial drop cable
Certification :
ROHS and ISO
Place of Origin :
China
MOQ :
2000 Meters
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
5000000 meters
Delivery Time :
5~10 working days
Packaging Details :
Customized
Product Name :
FTTH Flat aerial drop cable
Size :
4.5*8.1mm
Fibers Count :
1-8 cores
Standards :
IEC 60794, ITU-T G.657.A1, A2, B3, RUS, TIA-598-C
Temperature Range :
-40°C ~ +70°C
Tight Buffer :
LSZH, 900 ± 50 μm
Description
Outdoor 4.5*8.1mm FTTH Flat aerial drop cable 1-24 core optical fiber G657A

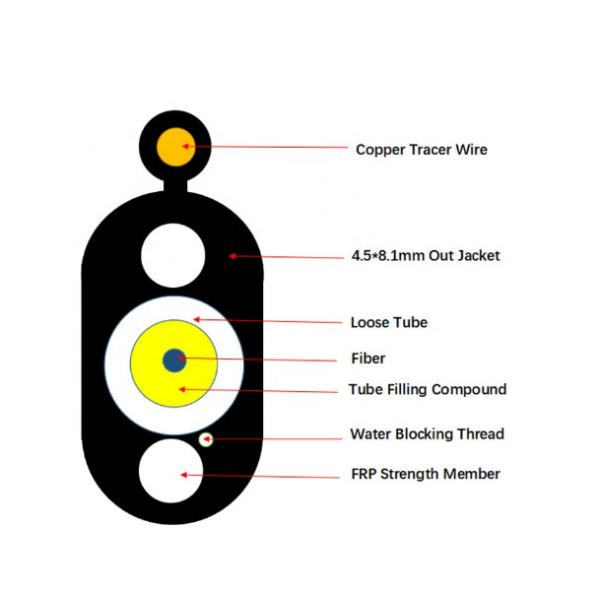

Flat FTTH put in side with 2 FRP, the optical fiber unit positioned in the Loose tube. Two parallel strength member are placed at the two sides and have loose tube to protect the inside FTTH, outside sheath is PE.

Specification:
Items
Description
Number of fiber
1
Fiber Color
Blue
Fiber type
G652D/G657A1/G5657A2/G657B3
Strength member
material
FRP
diameter
1.2±0.1mm
Inner Sheath
material
LSZH Loose Tube
diameter
2.5mm±0.1mm
Color
Yellow
Out sheath
material
PE
Color
Black
Thickness
0.9mm±0.1mm
Cable size (Height * width)
4.5x8.1±0.2mm
Cable weight/km
45KG±2KG
4.5X8.1mm FTTH Flat Aerial Drop Cable 1-8 Core Optical Fiber G657A G652D For FTTA4.5X8.1mm FTTH Flat Aerial Drop Cable 1-8 Core Optical Fiber G657A G652D For FTTA
Features
1. Good mechanical and environment characteristic
2. Anti-UV characteristic meet the requirements of relevant standards
3. The mechanical characteristic meet the requirements of relevant standards
4. Big capacity data transmission
5. Meet various requirements of market and clients
