Specifications
Brand Name :
OMC or OEM
Model Number :
FC Fiber Optic OTDR Launch Cable Box
Certification :
RoHS,SGS,ISO
Place of Origin :
China
MOQ :
1
Price :
US $ 85-100
Payment Terms :
L/C, T/T,Paypal
Supply Ability :
10000 Piece/Pieces per Month
Delivery Time :
3-7 working days
Packaging Details :
54*40*35cm
Product name :
FC Fiber Optic OTDR Launch Cable Box
Length x Width x Height :
27.5 x 15.3 x 7.6cm
Fiber Type :
G.652D/G.657A
Connector Type :
FC
Polishing Type :
UPC
Material :
SR Polypropylene
Color :
Color
Weight :
1kg(package included )
Operating Temperature :
-40°C to +55°C
Typical Loss :
<0.5dB @ 1310nm for 1000 meters
Description

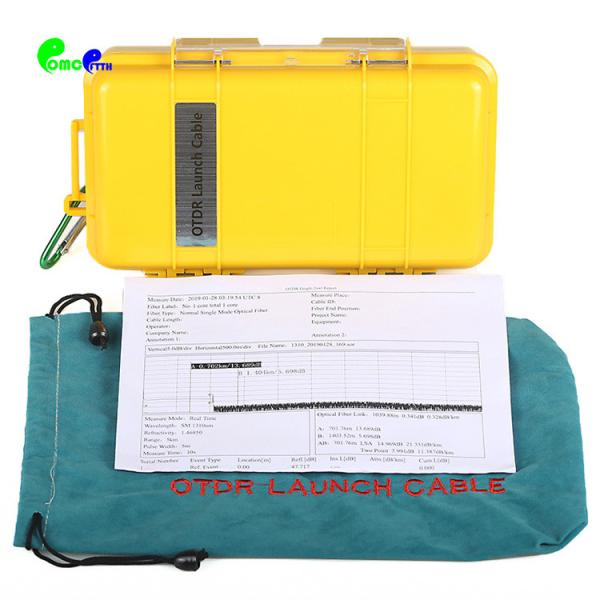

1km FC OTDR Single Mode Fiber Optic Tools OTDR Launch Cable Box

1km FC OTDR Single Mode Fiber Test Dead Zone Eliminator Fiber Rings FTTH Tools Fiber Optic OTDR Launch Cable Box

An OTDR launch cable, which connects the OTDR to the link-under-test, discloses the insertion loss and reflectance of the near-end connection. It is often available on a small spool or within a “launch box”, which is used to create the proper conditions for testing another similar optical fiber for faults. This method avoids undesirable variations in loss and distance measurements. A launch fiber will help to overcome the blind spot or Dead Zone of an OTDR brought about by high launch power or faults near the launch end of the fiber.

Specifications of OTDR Launch Cable Box

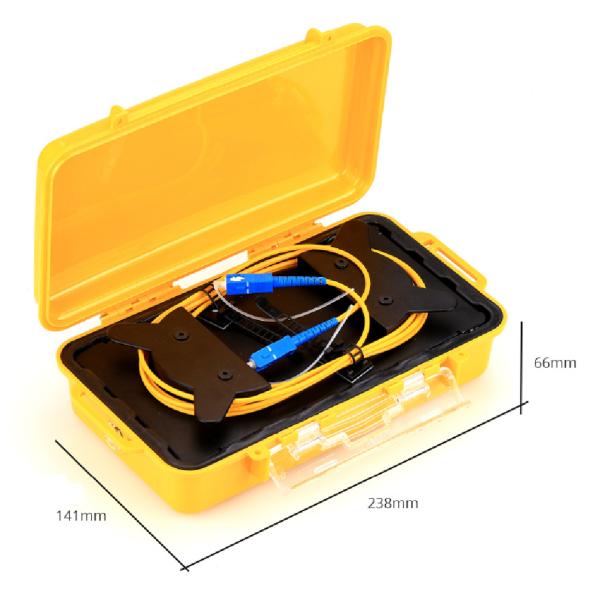

Length x Width x Height 238 x 141 x 66mm
Fiber Type G.652D/G.657A/OM1/OM2/OM3/OM4
Connector Type FC/SC/LC selectable
Polishing Type APC/UPC selectable
Material SR Polypropylene
Color Yellow
Weight 1kg(package included )
Operating Temperature -40°C to +55°C
Typical Loss

<0.5dB @ 1310nm for 1000 meters

<0.5dB @ 850nm for 1000 meters

Products details of OTDR Launch Cable Box

Place the necessary length of fiber between the OTDR and the fiber-under-test

Help to make a more precise measurement with an OTDR

Discloses the insertion loss and reflectance of the near-end connection

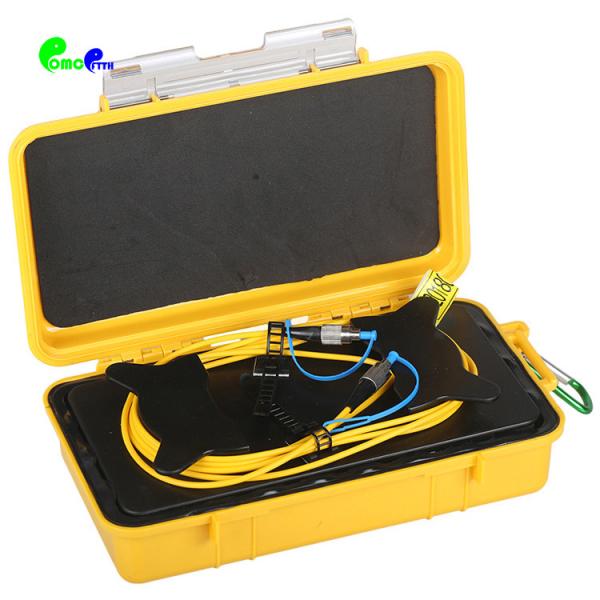

1km FC OTDR Single Mode Fiber Optic Tools OTDR Launch Cable Box

1km FC OTDR Single Mode Fiber Optic Tools OTDR Launch Cable Box Robust Metal Retractor Make the box easy to carry in actual testing
1km FC OTDR Single Mode Fiber Optic Tools OTDR Launch Cable Box Built-in Cable Management. Helps to reduce cable stress and save space.
1km FC OTDR Single Mode Fiber Optic Tools OTDR Launch Cable Box Auto Purge Valve, Elaborate air vent valve regulates the pressure automatically.


Features of OTDR Launch Cable Box

Full-spectrum single mode fiber

Small macro bending radii, comply with G.657A or G.652D standard

Small attenuation value

Suitable for any optical testing environment

Mainly used to compensate for the OTDR test blind area, central fiber

Without any fusion joint, small volume, light weight Easy to carry

Length 500M, 1KM, 2KM... 5KM (custom)

Loss less than or equal to 0.5dBmkm

Water and dust prove allowing the unit to be taken into almost any environment

Non­metal construction will not dent, corrode, or conduce electricity

Application of OTDR Launch Cable Box

Widely used with OTDR to help minimize measurement uncertainty indoor or outdoor

1km FC OTDR Single Mode Fiber Optic Tools OTDR Launch Cable Box
