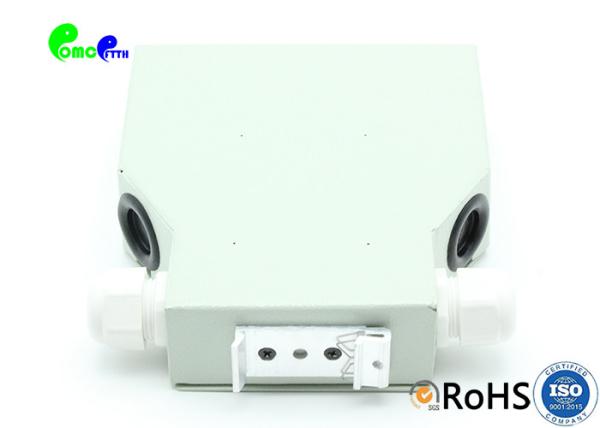

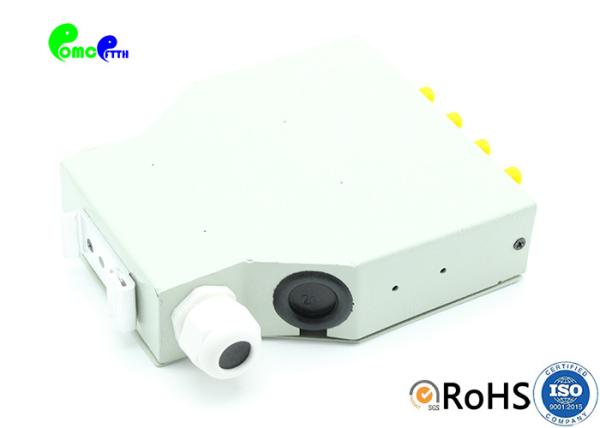

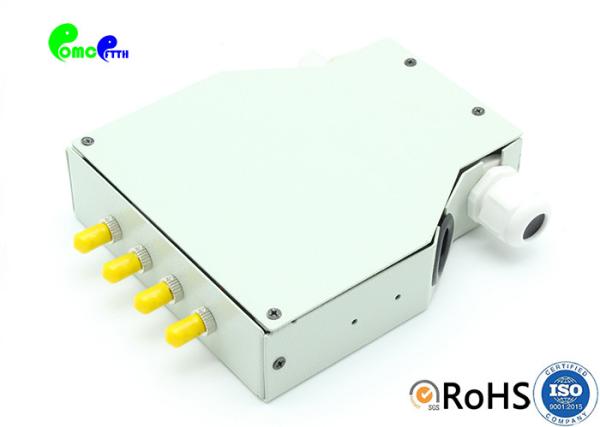

ST Rack Mount 4F Fiber Terminal Box Din Rail Optical Splice Closure

FTTH 4 Port ST Rack Mount Fiber Optic Din Rail Box Fiber Terminal Box Splice Closure

Din Rail Patch Panel is metal box special designed to be snapped on din rail, DIN RAIL fiber box accepts one modular panel making it ideal for smaller fiber count applications of up to 24 fibers. This compact enclosure makes it possible to direct terminations or fusion splices in much smaller protected areas.

Features

Cold-roll steel, electrostatic painting
Suitable for different adapters: FC, SC, ST, LC …

2pcs cable entry/exit ports; 12pcs pigtail entry/exit ports
Max. 12pcs adapters can be loaded

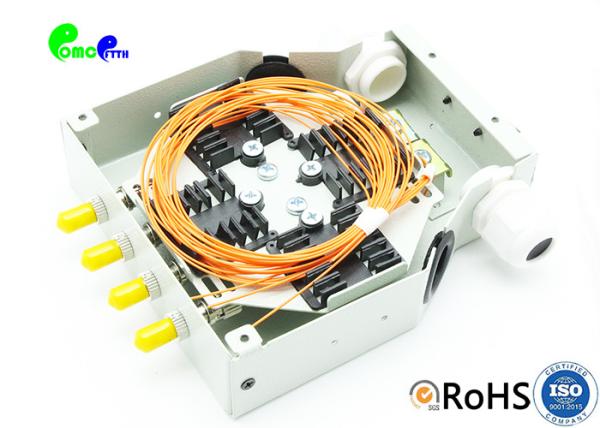

Integrated splice holders (fusion splices)
Rear or aside DIN rail fixation
2x rear entries (PG 11 cable gland)
Grey color (RAL 7035)

Dimensions: 140x 129 x 37 mm

Application

Suitable for Pigtail, ribbon and bunch cable connect distribution
Used for wall-mounted applications
Used in FTTH, Telecommunications, CATV etc.
