Specifications
Brand Name :
OMC or OEM
Model Number :
1X16 Mini Plug-in Module Type PLC Splitter
Certification :
RoHS,SGS,ISO
Place of Origin :
China
MOQ :
1
Price :
US $ 12.5-14
Payment Terms :
L/C, T/T,Paypal
Supply Ability :
100000 Piece/Pieces per Month
Delivery Time :
3-7 working days
Packaging Details :
54*40*35cm
Product name :
1X16 Mini Plug-in Module Type PLC Splitter
Channel Number :
1X16
Operation Wavelength :
1260~1650nm
Insertion Loss (Max) :
13.8/14.1
Return Loss :
UPC≥50dB APC≥60dB
Directivity :
≥55dB
Uniformity (Max.) :
1.0dB
Operating Temperature :
-40~+85℃
Use :
FTTX
No. of Fiber :
16
Description

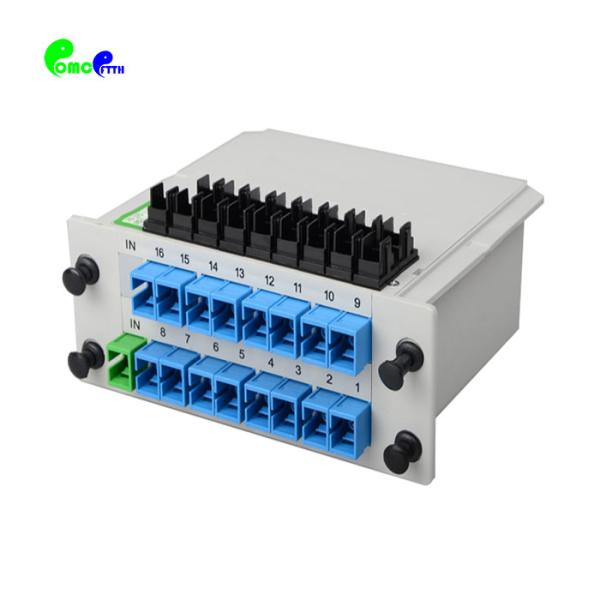

1650 nm Fiber Optic Splitter 1x16 PLC Splitter LGX Box Cassette Card Inserting

1x16 PLC Splitter LGX Box Cassette Card Inserting PLC Splitter Mini Plug-in Module Type 16 Port Fiber Optic Splitter

Planar lightwave circuit (PLC) splitter is an optical power distribution device based on the integrated waveguide of quartz plate. With the features of small size, wide range of operating wavelength, stable reliability and good uniformity, It’s widely used in PON,ODN,FTTX point to connect between termination device and central office to achieve the signal splitter.

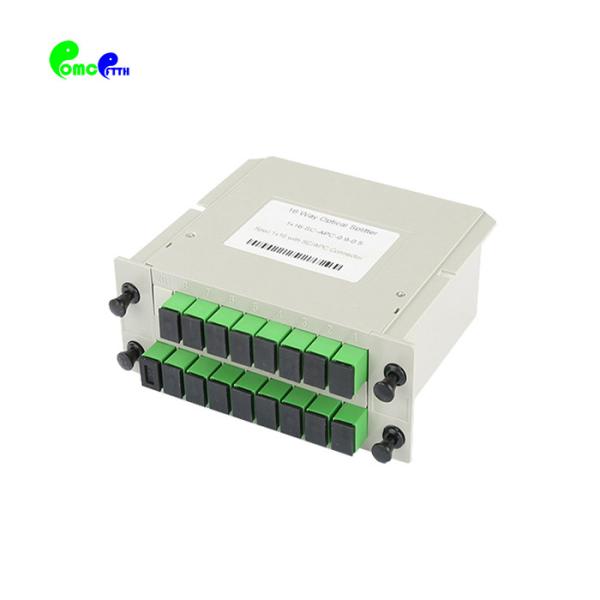

1650 nm Fiber Optic Splitter 1x16 PLC Splitter LGX Box Cassette Card Inserting

OMC ‘s Mini Plug-in module Type PLC Splitter family has 1x2, 1x4, 1x8, 1x16, 1x32 PLC splitter, with specifications that are tailored for different applications and markets. Wide bandwidth, compact size. All products meets, ROHS, GR-1209-CORE-2001 and GR-1221-CORE-1999.

Specification

Parameter Unit Specification (P Grade)
Operation Wavelength nm 1260~1650
Channel Number   1X2 1X4 1X8 1X16 1X32 1X64
Insertion Loss with Connector (Max) dB 4.1/4.4 7.4/7.9 10.5/11.0 13.8/14.1 17.1/17.4 20.4/21.0
Insertion Loss without Connector (Max) dB 3.8/4.1 7.1/7.6 10.2/10.7 13.5/13.8 16.8/17.1 20.1/20.7
Uniformity (Max.) dB 0.6 0. 7 0.8 1.0 1.5 2.0
Polarization Dependent Loss dB 0.2 0.2 0.2 0.3 0.3 0.3
Return Loss dB ≥45(PC);50(UPC);60(APC)
Directivity dB ≥55

Parameter Unit Specification (P Grade)
Operation Wavelength nm 1260~1650
Channel Number   2X2 2X4 2X8 2X16 2X32 2X64
Insertion Loss with Connector (Max) dB 4.4/4.6 7.7/8.1 10.8/11.3 14.1/14.4 17.4/17.7 20.6/21.3
Insertion Loss without Connector (Max) dB 4.1/4.3 7.4/7.8 10.5/11 13.8/14.1 17.1/17.4 20.3/21.0
Uniformity (Max.) dB 0.6 0. 7 0.8 1.0 1.5 2.0
Polarization Dependent Loss dB 0.2 0.2 0.2 0.3 0.3 0.5
Return Loss dB ≥45(PC);50(UPC);60(APC)
Directivity dB

≥55

Environmental Conditions

Operating Temperature -40~+85
Storage Temperature -40~+85
Operating Humidity %RH ≤93
Storage Humidity %RH ≤93

Cable Infor

Fiber type G657A1
Pigtail cable 900um
Connector SC, LC,FC,ST,…….
2xN Splitter Only Single Chip

Dimension (mm)

1650 nm Fiber Optic Splitter 1x16 PLC Splitter LGX Box Cassette Card Inserting

Small Size and Compact Design

Usually mounted in the FTTx box for fiber optic signal distribution, saving time and space but still providing reliable protection for fiber optic splitter

1650 nm Fiber Optic Splitter 1x16 PLC Splitter LGX Box Cassette Card Inserting

1650 nm Fiber Optic Splitter 1x16 PLC Splitter LGX Box Cassette Card Inserting
