G657A1 1X32 PLC Splitter Terminal Box Fiber Optic Equipment 32 Way
G657A1 1X32 PLC Splitter Terminal Box Fiber Optic Equipment 32 Way
G657A1 1X32 PLC Splitter Terminal Box Fiber Optic Equipment 32 Way
G657A1 1X32 PLC Splitter Terminal Box Fiber Optic Equipment 32 Way
G657A1 1X32 PLC Splitter Terminal Box Fiber Optic Equipment 32 Way
G657A1 1X32 PLC Splitter Terminal Box Fiber Optic Equipment 32 Way
G657A1 1X32 PLC Splitter Terminal Box Fiber Optic Equipment 32 Way
G657A1 1X32 PLC Splitter Terminal Box Fiber Optic Equipment 32 Way
G657A1 1X32 PLC Splitter Terminal Box Fiber Optic Equipment 32 Way
G657A1 1X32 PLC Splitter Terminal Box Fiber Optic Equipment 32 Way
G657A1 1X32 PLC Splitter Terminal Box Fiber Optic Equipment 32 Way
G657A1 1X32 PLC Splitter Terminal Box Fiber Optic Equipment 32 Way
Specifications
Brand Name :
OMC or OEM
Model Number :
1*32 PLC Splitter
Certification :
RoHS,SGS,ISO
Place of Origin :
China
MOQ :
10
Price :
US $ 13.1-14.9
Payment Terms :
L/C, T/T,Paypal
Supply Ability :
100000 Piece/Pieces per Month
Delivery Time :
3-7 working days
Packaging Details :
54*40*35cm
Product name :
1*32 PLC Splitter
Operation Wavelength :
1260~1650
Insertion Loss :
17.1/17.4
Return Loss :
≥60
Fiber type :
G657A1
Pigtail cable :
900um
Cassette size :
80x20x6
Operating Temperature :
-40~+85℃
Use :
FTTX
No. of Fiber :
32
Description

G657A1 1X32 PLC Splitter Terminal Box Fiber Optic Equipment 32 Way

1*32 PLC Splitter PLC Splitter Terminal Box Hot Selling Fiber Optic Equipment 32 Way Fiber Optic PLC Splitter

Planar lightwave circuit (PLC) splitter is an optical power distribution device based on the integrated waveguide of quartz plate. With the features of small size, wide range of operating wavelength, stable reliability and good uniformity, It’s widely used in PON,ODN,FTTX point to connect between termination device and central office to achieve the signal splitter.

G657A1 1X32 PLC Splitter Terminal Box Fiber Optic Equipment 32 Way

Specification

Parameter Unit Specification (P Grade)
Operation Wavelength nm 1260～1650
Channel Number 　 1X2 1X4 1X8 1X16 1X32 1X64
Insertion Loss with Connector (Max) dB 4.1/4.4 7.4/7.9 10.5/11.0 13.8/14.1 17.1/17.4 20.4/21.0
Insertion Loss without Connector (Max) dB 3.8/4.1 7.1/7.6 10.2/10.7 13.5/13.8 16.8/17.1 20.1/20.7
Uniformity (Max.) dB 0.6 0. 7 0.8 1.0 1.5 2.0
Polarization Dependent Loss dB 0.2 0.2 0.2 0.3 0.3 0.3
Return Loss dB ≥45(PC)；50(UPC)；60(APC)
Directivity dB ≥55

Parameter Unit Specification (P Grade)
Operation Wavelength nm 1260～1650
Channel Number 　 2X2 2X4 2X8 2X16 2X32 2X64
Insertion Loss with Connector (Max) dB 4.4/4.6 7.7/8.1 10.8/11.3 14.1/14.4 17.4/17.7 20.6/21.3
Insertion Loss without Connector (Max) dB 4.1/4.3 7.4/7.8 10.5/11 13.8/14.1 17.1/17.4 20.3/21.0
Uniformity (Max.) dB 0.6 0. 7 0.8 1.0 1.5 2.0
Polarization Dependent Loss dB 0.2 0.2 0.2 0.3 0.3 0.5
Return Loss dB ≥45(PC)；50(UPC)；60(APC)
Directivity dB ≥55

Environmental Conditions

Operating Temperature ℃ -40～+85
Storage Temperature ℃ -40～+85
Operating Humidity %RH ≤93
Storage Humidity %RH ≤93

Dimension (mm)

Splitter 1X2 1X4 1X8 1X16 1X32 1X64
Cassette size 60×7×4 60×7×4 60×7×4 60×12×4 80x20x6 100x40x6
Splitter 2X2 2X4 2X8 2X16 2X32 2X64
Cassette size 60×7×4 60×7×4 60×7×4 60×12×4 80x20x6 100x40x6

Cable Information

Fiber type G657A1
Loose Tube 900um
Connector SC, LC,FC,ST,…….
2xN Splitter Only Single Chip

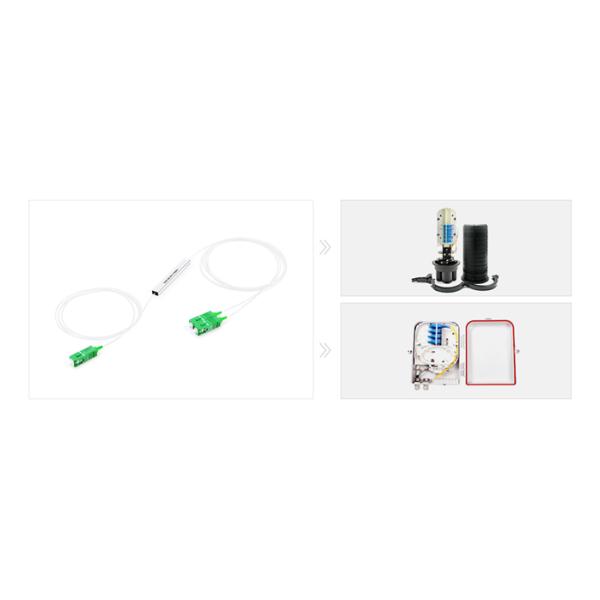

Application

Simple and Easy Connection

Blockless PLC splitter can be easily installed in fiber splice closure, optical distribution box for space saving and no need to splice.

G657A1 1X32 PLC Splitter Terminal Box Fiber Optic Equipment 32 Way

Best Alternative for FTTx Solution

Being installed in an outside plant enclosure, PON splitter is used to distribute or combine optical signals, which gives carriers the ability to split optical signals to multiple homes or businesses.

G657A1 1X32 PLC Splitter Terminal Box Fiber Optic Equipment 32 Way

Our Services

1, Free samples--- we can supply free products for testing .

2, Brand---OEM service acceptable

3, Payment terms---Nice payment. Like T/T, Western Union, Paypal etc.

4, Quality Level---High quality as per your requirements.

5, Competitive price---The manufacturer having our own factory has the advantage.

6, Delivery Time--- Usually 3 days. Less than a week.

8, Optical Network Project Consultant---Professional experts help you.

9, New Products development for customer---We can produce it for you with pattern.

10, logistic solution--- Cost-effective ways can be chosen for you.

Company Information

OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network’s needs.

Quality is life of OMC. Our firm commitment is to deliver world class product to our customers and forever exceed their expectations. We also offer Solid after sales support i.e. 3 years product warranty under no conditions

OMC treat our customers, suppliers, and employees as our respectable partners. We very happy to share our success with them. Offering best products to our customers, Long-term/Loyal partnership to our supplier and good salary/welfare to our employees. OMC also spare no effort to care our society and environment. With a grateful heart, OMC will go firmly to the bright way that we are longing for.

We hereby gather in OMC, with plentiful passion and professional techniques to service customers all over the world
