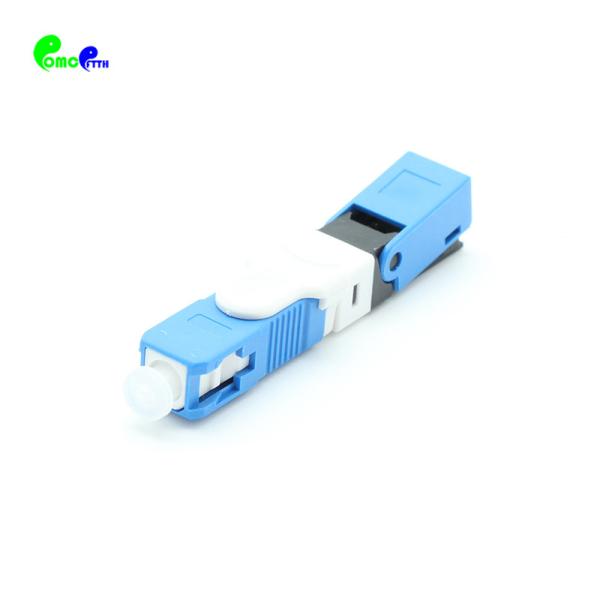

Ceramic Ferrule FTTH Products SC UPC FTTH Fast Connector Singlemode

ESC250D Fiber Optic Quick Connector SC APC/UPC Singlemode FTTH Fast Connector

Field Fast installation connector also be called Field fast installation connector or FIC. It is a new kind of connector that could be used in FTTH project scene.

Our FIC products have been factory-polished, eliminating the need for any polishing materials, thereby enabling the preparation and termination of optical fibers in a fraction of the time of other conventional methods. The connector also uses V-groove mechanical splice principals and therefore the use of an epoxy is not required for the termination of the connector.

This Fast Connector offers convenience in assembling and strong stability. It allows simple optical core connection without any additional practices, or adhesives. It does not require a working space by connecting itself in the challeng-ing environments such as a telephone pole and a manhole. It reconnects the cables and reduces the connection de-fect rate by an installer error in the field.

The Fast Connector series are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and with the expansion of FTTH, is already proving itself to be the connector of choice by incumbents, municipalities, utilities & alternative carriers.

Our FIC series are now available in SC, LC, or FC variants, catering for 250um to 900um, and 2.0mm, 3.0mm diameter single mode and multimode fiber types, including Multi-mode 62.5/125um and Multi-mode 50/125um. The single-mode versions are available with UPC or APC ferrules.

Specifications

Feature:

• No epoxy and polishing required
• Quick and easy fiber termination
• Precision mechanical alignment insures low insertion loss
• Superior optical performance
• Streamlined component design, convenient operation
• Pre-installed, on-site assembly without end face grinding and consideration
• Uses proven, molded v-groove technologies

Working principle

Installation introduction

Assembly of the connector requires only normal fiber preparation tools: a fiber stripping tool, wipes and a fiber cleav- er. They don’t need to polishing, no epoxy, No electrical power supply, no fused the fiber. Just Strip the buffer, cleave and clean the fiber and then insert the fiber into the Fast Connector. Installation takes just minutes and couldn't be easier.

Related Tools:

1, FTTH Drop cable stripper, To strip the Bow type 2x3mm Drop cable

2, 0.9mm/2.0mm/3.0mm Fiber Cable Stripper. To Strip those round cable and bare fiber of 2x3mm Drop cable

3, Fiber cleaver to cut the fiber of Cable&Fiber

4, Use the Length guard board cut the fiber in requested length.

5, Alcohol, For Fiber Clean after cut

6, Cleanroom Wipes, for Fiber Clean after Alcohol Cleaned

Application in FTTX:

• Fiber optic communication system and telecommunication networks
• Fiber optic data transmission
• CATV
• Optical access network
• Fiber to the Subscriber (FTTX) applications
• Optical cable interconnection
• Maintenance or emergency restoration of fiber networks
• Repair and replacement requirements
• Fiber optic equipment

Packaging

FAQ:

1. Are you the real factory?

Yes,we are the real factory more than 10 years

2. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.

3. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.

4. What is your delivery time?

Within 24 hours for normal kinds of fiber optic cable;

3~5 days for fiber optic patch cords with 10000 connectors.

5. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.

6. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.

7. Payment

For large orders: T/T, L/C

For small orders: T/T,Western Union and Paypal are acceptable
