LC Fiber Optic Cable Pigtail With 0.9mm 12 Colors Mini Breakout Cable

Fiber Optic LC UPC pigtail,LC APC Pigtail with 0.9mm 12 colors, 2.0mm , 3.0mm , 4 - 144F Mini breakout cable , 4 - 12F ribbon fanout cable with OEM Service

The fiber optic pigtail is normally a tight/Tight buffered fiber cable with a connector pre terminated on one end and exposed fiber on the other. The end is stripped and fusion spliced to a single or multi-fiber trunk. When utilized properly, the fiber optic pigtail allows light signal transmission with minimal return loss and low attenuation. Make sure your network is reinforced with OMC’s fiber pigtails, as ours are manufactured of superior quality materials.

The Pigtail are available in both single and multimode versions with either APC or UPC polish types. Our fiber pigtails come with a partial outer jacket protecting the Tight/Loose buffers from damage. If installed in a high density application,the outer jacket can be easily removed to accommodate a tighter bend radius for the pigtails.

We offer Individual single pigtails, Discounted 6 packs, or 12 Packs pigtails set; 4-144F Mini breakout cable;4 - 12F ribbon fanout cable with OEM Service

Products Materials

G652D,G657A1,G657A2/B2,G657B3,OM1,OM2, OM3, OM4, OM5 Fibers 900um, 1.2mm,1.6mm,1.7mm,1.8mm,2.0mm,2.4mm,2.6mm,2.8mm OD cable PVC (Riser/OFNR),LSZH,Plenum (OFNP) Jacket materials

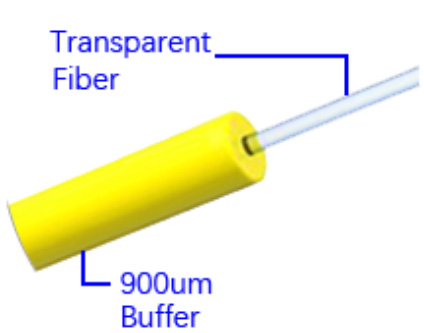

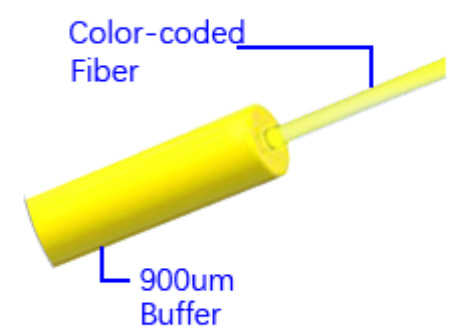

Standard 900um Cable	Color-coded 900um Cable

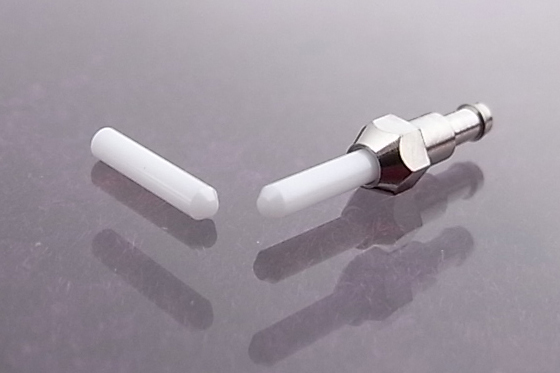

	High quality SM Ceramic ferrule, Good concentricity<0.5um High quality MM Ceramic ferrule, Good concentricity<4.0um

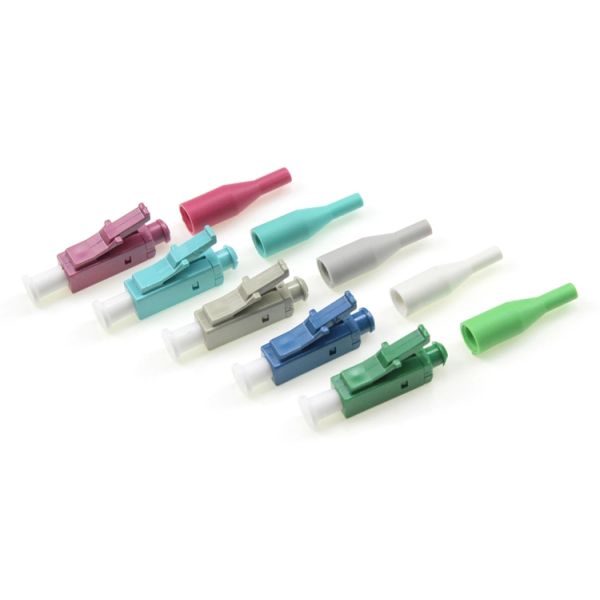

	Standard connectors LC Good Repeatability and Interchangeability

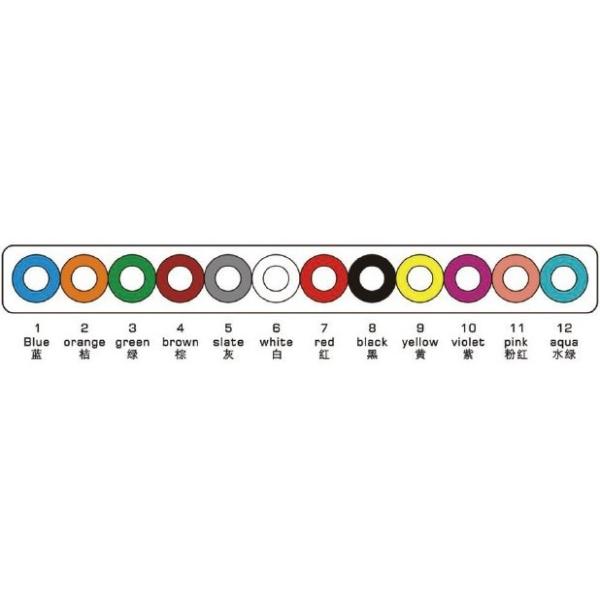

Available for 12 colors,The 900um buffer and fiber same color coded

Optical Specifications

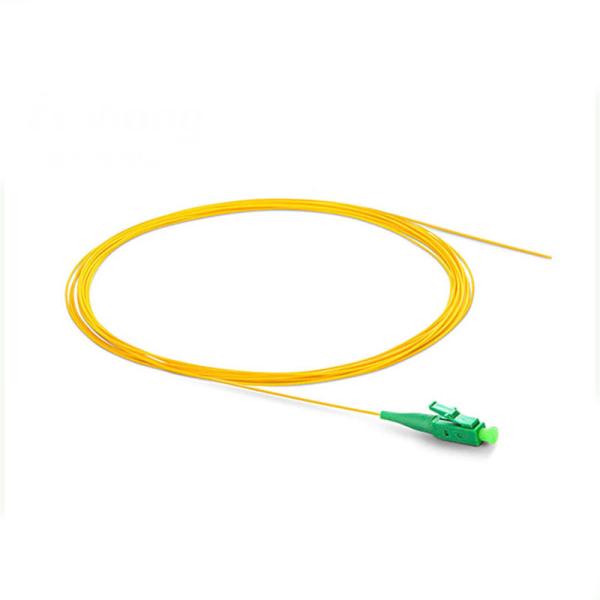

Standard 900um Fiber Pigtail

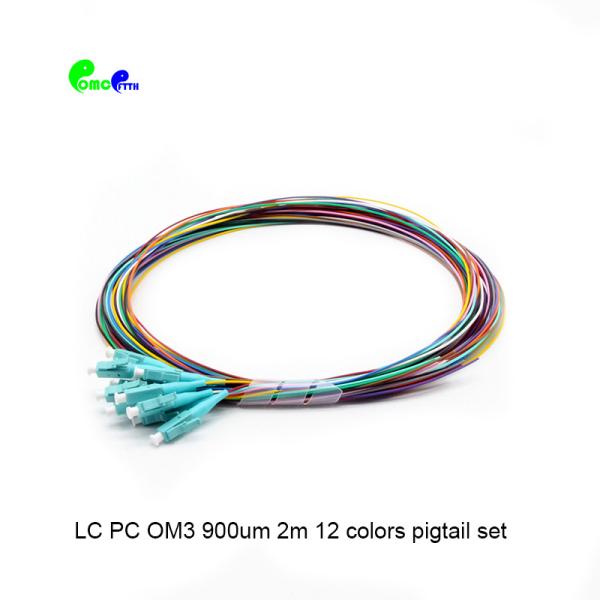

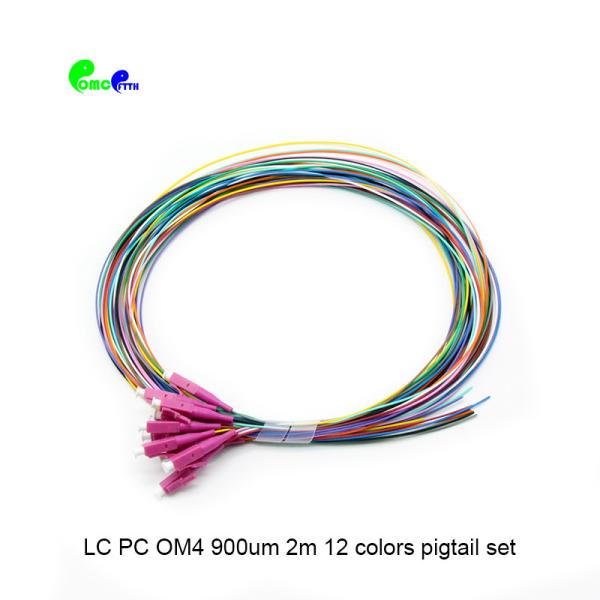

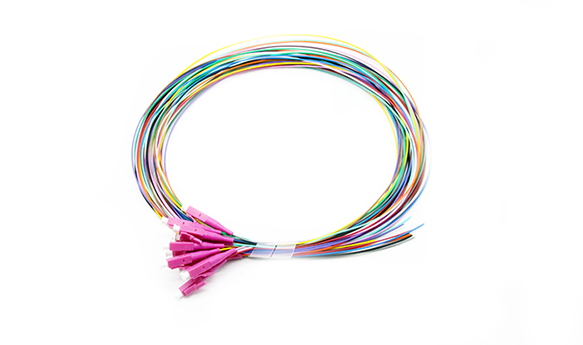

Standard 6-12F Color-Coded 900um Fiber pigtails set

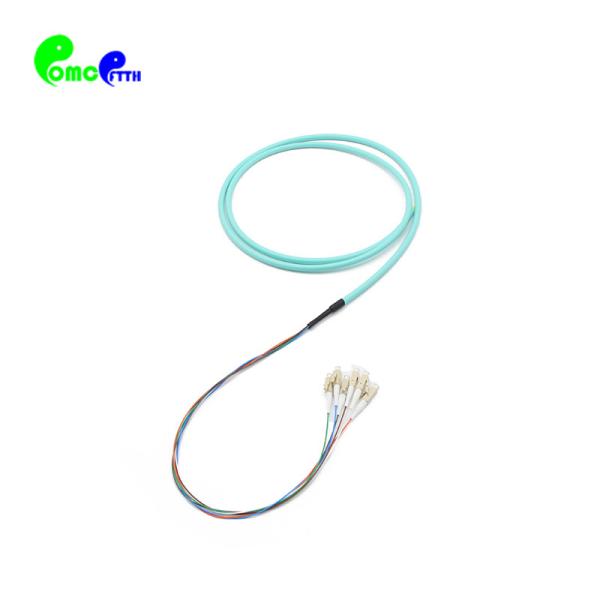

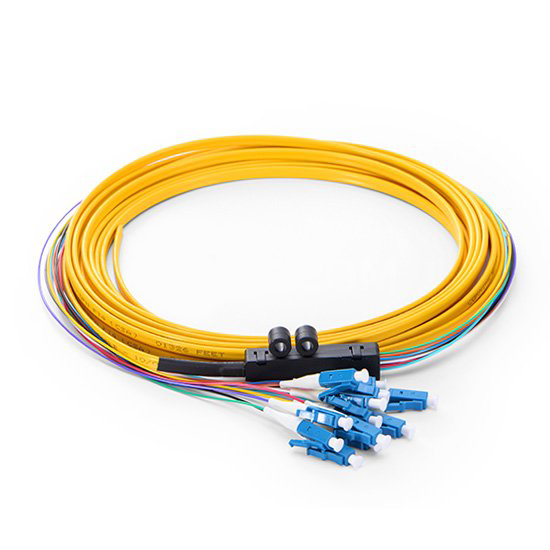

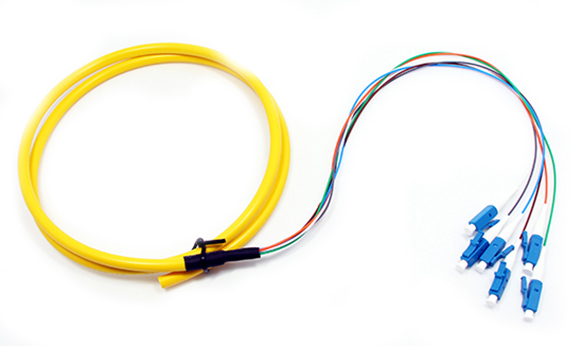

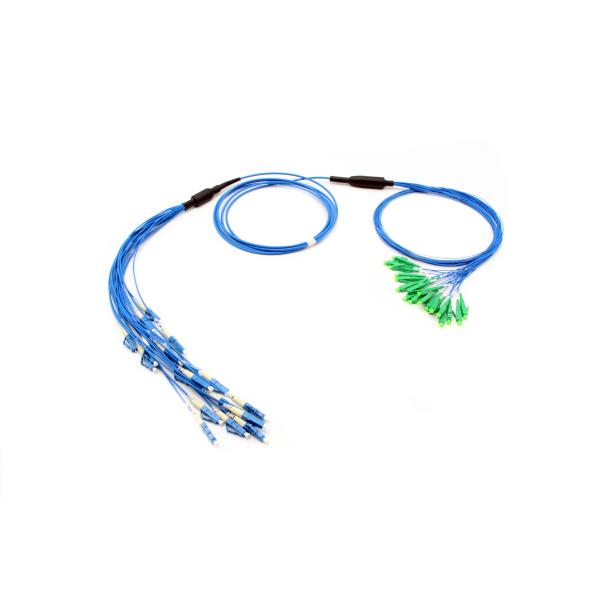

4-144F Pre-terminated 900um cable fiber pigtail

4-12F Ribbon fanout 900um pigtail

3-144F Pre-terminated Micro-Fiber fanout Pigtail&patch cord

-Standard quality

-IEC Grade B quality

Geometric Specification( only available after customer requested)

Standard Compliance

• TIA 604 (FOCIS)
• TIA/EIA 492AAAE
• IEC 61754
• IEC 60793-2-10
• IEC61300-3-35
• YD/T1272.1-2003
• RoHS, ISO9001 Compliant

Features

• High quality zirconia ferrules.
• Good repeatability and interchange.
• Flame-retardant, rugged and dura- ble jacket.
• 100% optically tested for insertion loss to ensure high quality

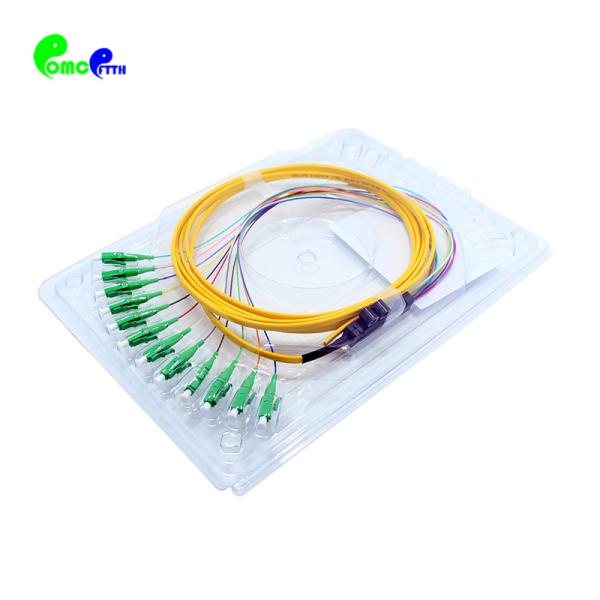

Packaging

This easily taken and well-protected fiber optical cable package has been labelled and marked by OMC as de- fault .Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm . Which carton to be used depends on goods Qty . Packing can be customized.

Fiber Optic Pigtail - method one :

Fiber Optic Pigtail - method two :

FAQ:

1. Are you the real factory?

Yes,we are the real factory more than 10 years

2. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.

3. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.

4. What is your delivery time?

Within 24 hours for normal kinds of fiber optic cable;

3~5 days for fiber optic patch cords with 10000 connectors.

5. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.

6. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.

7. Payment

For large orders: T/T, L/C

For small orders: T/T,Western Union and Paypal are acceptable

Standard 900um Cable	Color-coded 900um Cable
