IEC Grade B Fiber Optic Patch Cables OM1 OM2 OM3 OM4 OM5 OS2 Fiber Types

IEC Grade B Fiber Patch Cord SC / LC / FC / ST /MU / E2000 / MTJR, APC/UPC polishing, with SM / OM1 / OM2 / OM3 / OM4 / OM5 cable

The patch cord can be used in interconnect or cross-connect path connecting the incoming fibers to the electronic equipment and providing patching within the fiber paths.

OMC’s Patch cables are manufactured and tested in compliance with TIA 604 (FOCIS), IEC 61754 and YD/T industry standards. OM1, OM2, OM3, OM4, OM5 or OS2 fiber types to meet the demand of Gigabit Ethernet, 10 Gigabit Ethernet and high speed Fiber Channel. Every termination through rigorous parameter test to ensure the highest in network performance.

Products Materials

	G652D,G657A1,G657A2/B2,G657B3,OM1,OM2, OM3, OM4, OM5 Fibers 900um, 1.2mm,1.6mm,1.7mm,1.8mm,2.0mm,2.4mm,2.6mm,2.8mm OD cable PVC (Riser/OFNR),LSZH,Plenum (OFNP) Jacket materials
	High quality SM Ceramic ferrule, Good concentricity<0.5um High quality MM Ceramic ferrule, Good concentricity<4.0um

Connector Type

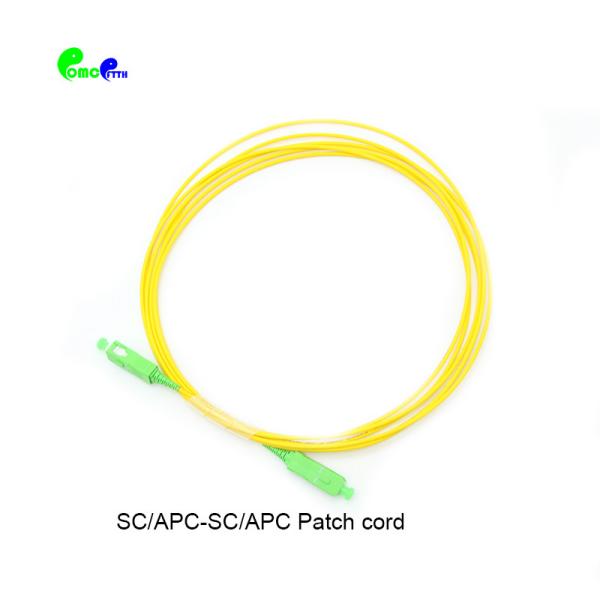

	LC Standard boot . Short boot Typical Applications : High-density connections, SFP and SFP+ transceiv- ers, XFP transceivers.		SC Standard boot ,Short boot Typical Applications : Tele- com; GPON; EPON; GBIC.

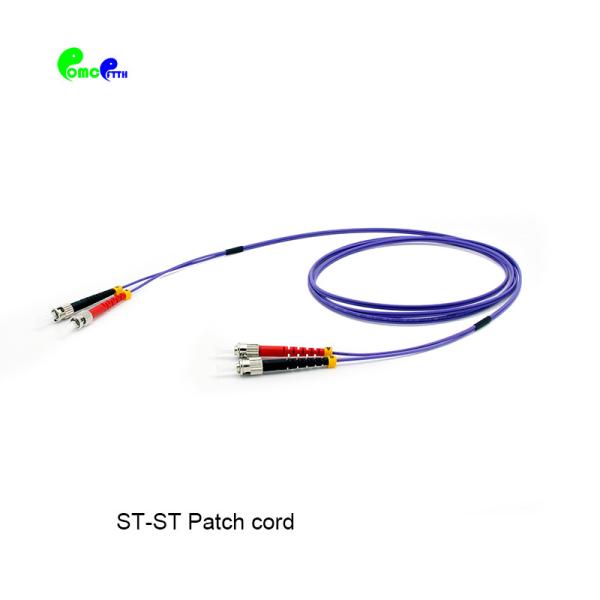

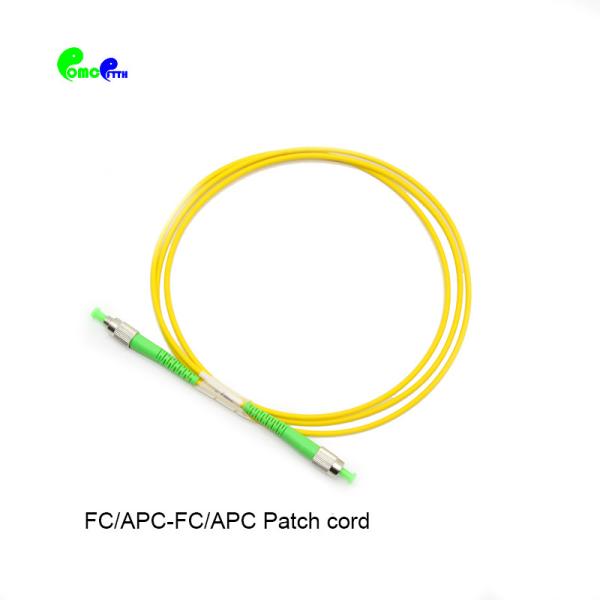

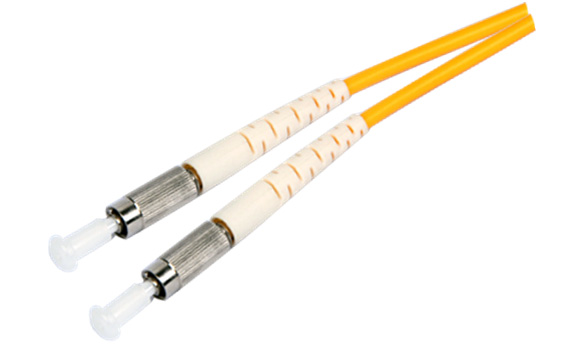

	FC Standard boot Typical Applications : Datacom, Telecom, measurement equip- ment, single-mode lasers		ST Standard boot Typical Applications : Datacom

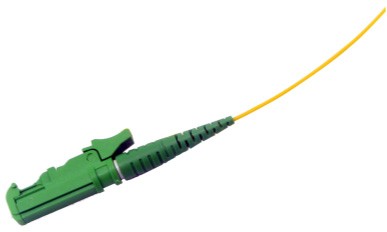

	E2000 Typical Applications : Telecom, DWDM		MU Standard boot Typical Applications: LAN, Telecommunication Network

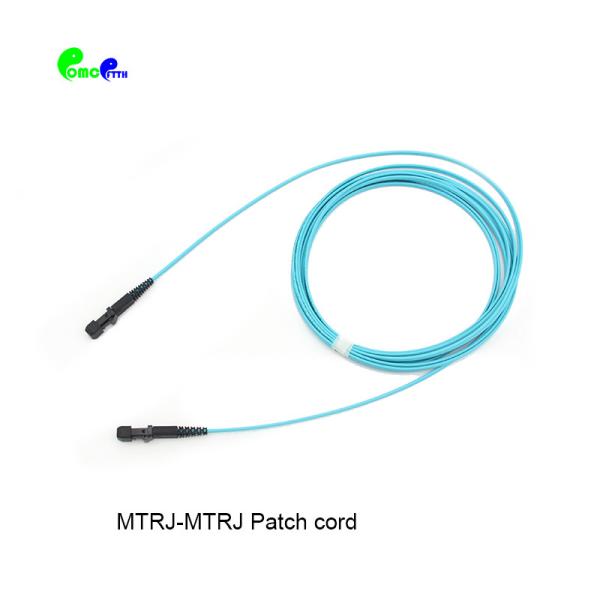

	MTRJ Standard boot		DIN Standard boot

Connector Standard

SC: TIA/EIA, FOCIS3, GR-326.NTT-SC IEC61754-4 and JIS C5973.
LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.
FC: EIA /TIA-604-04, FOCIS4, NTT-FC, GR-326. IEC61754-13 and JIS C5973
ST: TIA/EIA, FOCIS2, GR-326. IEC61754-2 and JIS C5973 Etc.

E2000: IEC61754-15
MU: TIA/EIA-604-3A, GR-326.NTT-MU, JIS and IEC.

MTRJ: TIA/EIA, FOCIS12, GR-326. IEC and JIS C5973.

DIN: IEC61754-3

Optical Specifications-Standard quality

Optical Specifications--IEC Grade B quality

Polishing Method

UPC(Ultra-Polished connector

APC( 8 Angled Polished connector

Polishing End-face SM

SM APC Polishing SM UPC Polishing

Polishing End-face MM

MM PC Polishing

Standard Compliance

• TIA 604 (FOCIS)
• TIA/EIA 492AAAE
• IEC 61754
• IEC 60793-2-10
• IEC61300-3-35
• YD/T1272.1-2003
• RoHS, ISO9001 Compliant

Features

• High quality zirconia ferrules.
• Good repeatability and interchange.
• Flame-retardant, rugged and dura- ble jacket.
• 100% optically tested for insertion loss to ensure high quality

Packaging

This easily taken and well-protected fiber patch cable package has been labelled and marked by OMC as default .Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm . Which carton to be used depends on goods Qty . Packing can be customized.

Packing method one:

Packing method two:

FAQ:

1. Are you the real factory?

Yes,we are the real factory more than 10 years

2. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.

3. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.

4. What is your delivery time?

Within 24 hours for normal kinds of fiber optic cable;

3~5 days for fiber optic patch cords with 10000 connectors.

5. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.

6. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.

7. Payment

For large orders: T/T, L/C

For small orders: T/T,Western Union and Paypal are acceptable
