5MW 10MW VFL FTTH Optical Light Source Teste power meter+VFL OPMV-02
5MW 10MW VFL FTTH Optical Light Source Teste power meter+VFL OPMV-02
5MW 10MW VFL FTTH Optical Light Source Teste power meter+VFL OPMV-02
5MW 10MW VFL FTTH Optical Light Source Teste power meter+VFL OPMV-02
5MW 10MW VFL FTTH Optical Light Source Teste power meter+VFL OPMV-02
5MW 10MW VFL FTTH Optical Light Source Teste power meter+VFL OPMV-02
5MW 10MW VFL FTTH Optical Light Source Teste power meter+VFL OPMV-02
5MW 10MW VFL FTTH Optical Light Source Teste power meter+VFL OPMV-02
Specifications
Brand Name :
OMC or OEM
Model Number :
fiber tool kit
Certification :
ROHS and ISO
Place of Origin :
China
MOQ :
1pcs
Price :
35usd
Payment Terms :
L/C, , T/T, Western Union,paypal,alibaba
Supply Ability :
10000
Delivery Time :
5-8days
Packaging Details :
Inner PE Bag and carton
type :
Optical Fibers
Application :
Fiber optical Network
Measurable range :
-70～+10dbm
Probe type :
InGaAs
Wavelength range :
850、980、1300、1310、1490、1550、1625
Time for auto off（min） :
10 minutes
Description

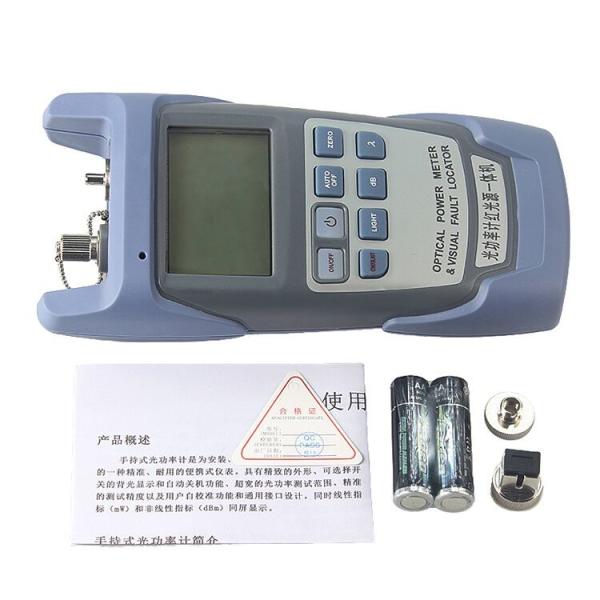

Optical Power Meter&VFL:OPMV-02

Specification:

This portable optical power meter with red light source is an accurate portable instrument with long service time specially designed for the installation, operation and maintenance of fiber-optical network. It features fine appearance, controllable backlight display, automatic power off, supper wide testing range for optical power, high accuracy, self-calibration and universal interface. What’s more, the linearity index(mW) and nonlinear index (dBm) will be displayed in a same screen. The optical power meter can be used alone for saving power.

Feature:

The optical power meter with red light of 10mW or 1mW features open self-calibration which could be operated by the user.

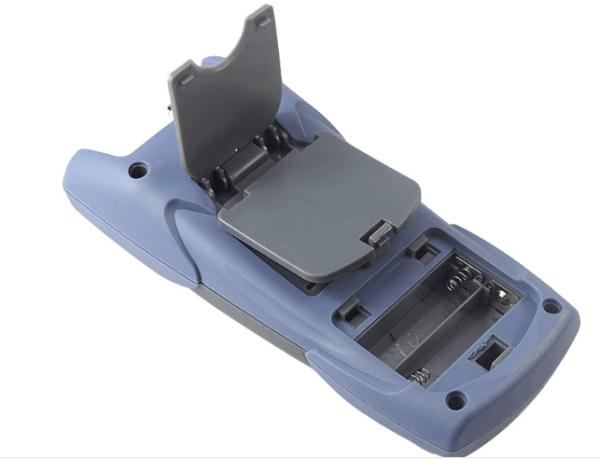

With two AA batteries, the optical power meter can work continuously for 40 hours. It can work continuously if working with a red light source of 10mW, or 42 hours with a red light source of 1mW.

the linearity index(mW) and nonlinear index (dBm) will be displayed on the same screen of the optical power meter.

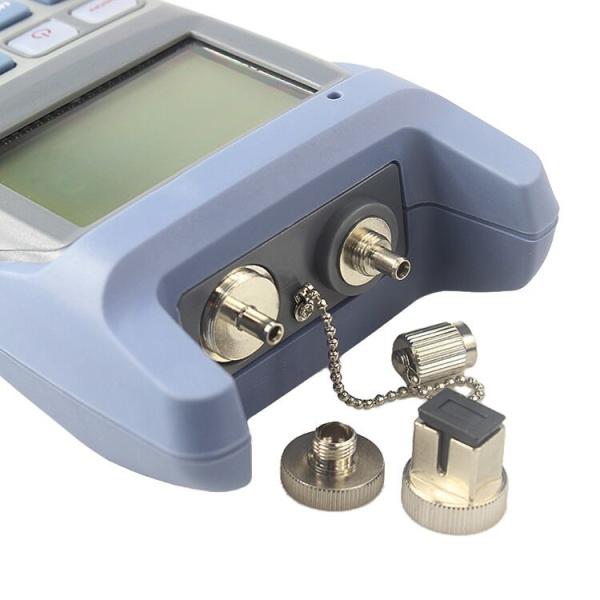

Special universal interface for FC/SC/ST, easy to transformation.

Optional auto off.

Optional backlight display.

Optional steady/flashing red light.

TECHNICAL SPECIFICATIONS

Part No. OPMV-02
Measurable range -70～+10dbm
Probe type InGaAs
Wavelength range 800～1700nm
Standard wavelength(nm) 850,980,1300,1310,1490,1550,1625
Display resolution linear display: 0.1% logarithmic display: 0.01dBm
Working temperature(℃) -10～+60℃
Storage temperature(℃) -25～+70℃
Time for auto off(min) 10 minutes
Continuous working time with batteries No less than 40 hours
Boundary dimension(mm) 180×83×28
Power supply Two chargeable lithium battery or AA alkaline battery
Weight(g) 210g
Suffix of the model &1 &10
Output power of the red light >1mW >10mW
Output wavelength of the red light 650nm
Optical fiber adapter of the red light ST/SC/FC & 2.5mm Universal Adapter

5MW 10MW VFL FTTH Optical Light Source Teste power meter+VFL OPMV-025MW 10MW VFL FTTH Optical Light Source Teste power meter+VFL OPMV-025MW 10MW VFL FTTH Optical Light Source Teste power meter+VFL OPMV-025MW 10MW VFL FTTH Optical Light Source Teste power meter+VFL OPMV-02

Product Name
Optical FTTH Tool Kit tool
Place of Origin
Guangdong, China (Mainland)
Application
FTTH FTTB FTTX Network
Fiber Type
Single Fiber Single Mode/Multi mode
Power Saving
Backlight off, Auto shutdown
