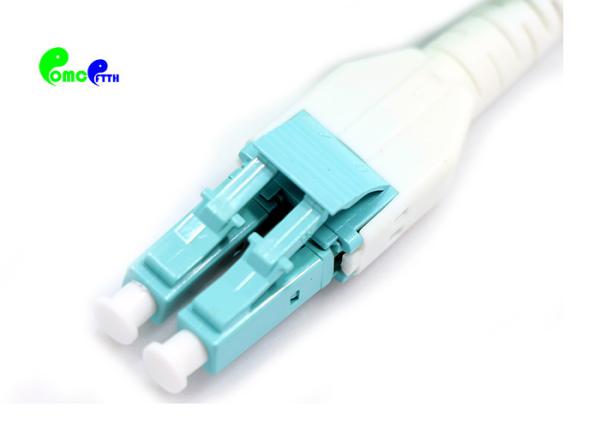

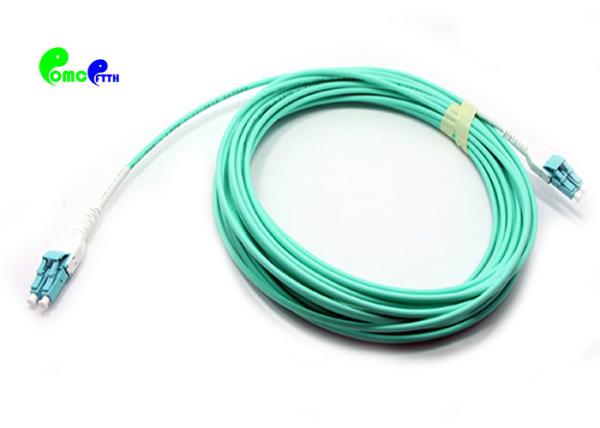

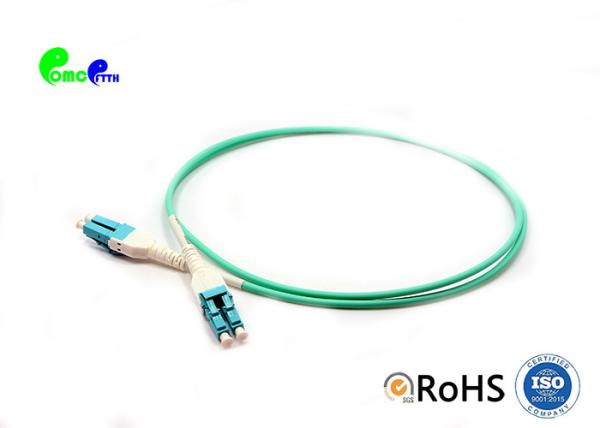

OM3 10G Uniboot LC PC - LC PC Fiber Patch Cord uni-tube Duplex 3.0mm 50 / 125 LSZH for 10G Application
OM3 10G Uniboot LC PC - LC PC Fiber Patch Cord uni-tube Duplex 3.0mm 50 / 125 LSZH for 10G Application
OM3 10G Uniboot LC PC - LC PC Fiber Patch Cord uni-tube Duplex 3.0mm 50 / 125 LSZH for 10G Application
OM3 10G Uniboot LC PC - LC PC Fiber Patch Cord uni-tube Duplex 3.0mm 50 / 125 LSZH for 10G Application
OM3 10G Uniboot LC PC - LC PC Fiber Patch Cord uni-tube Duplex 3.0mm 50 / 125 LSZH for 10G Application
OM3 10G Uniboot LC PC - LC PC Fiber Patch Cord uni-tube Duplex 3.0mm 50 / 125 LSZH for 10G Application
OM3 10G Uniboot LC PC - LC PC Fiber Patch Cord uni-tube Duplex 3.0mm 50 / 125 LSZH for 10G Application
OM3 10G Uniboot LC PC - LC PC Fiber Patch Cord uni-tube Duplex 3.0mm 50 / 125 LSZH for 10G Application
OM3 10G Uniboot LC PC - LC PC Fiber Patch Cord uni-tube Duplex 3.0mm 50 / 125 LSZH for 10G Application
OM3 10G Uniboot LC PC - LC PC Fiber Patch Cord uni-tube Duplex 3.0mm 50 / 125 LSZH for 10G Application
Specifications
Brand Name :
OEM or OMC
Model Number :
OM3 10G Uniboot LC PC - LC PC Fiber Patch Cord
Certification :
ISO9001, RoSH
Place of Origin :
China
MOQ :
5pcs
Price :
Negotiable
Payment Terms :
Western Union, T/T, Paypal
Supply Ability :
1000000pcs per month
Delivery Time :
3-7days

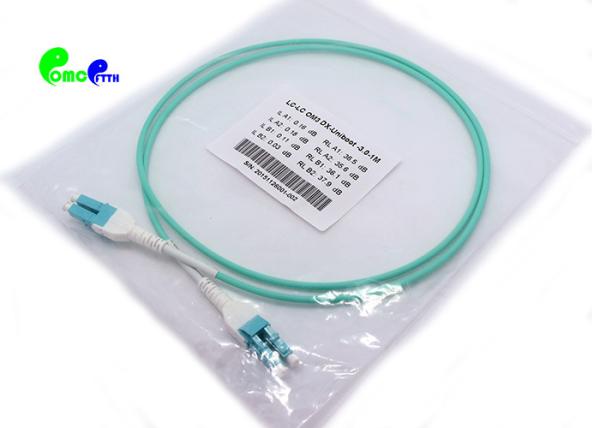

Packaging Details :
One piece in a plastic bag, several pieces in the carton of 54*39*35cm carton
Products :
OM3 10G Uniboot LC PC - LC PC Fiber Patch Cord
Insertion loss :
≤0.3dB(IEC Grade C)
Return loss :
≥35dB(min)
Cable OD :
3.0mm Unit-tube cable
Fiber Type :
50/125 OM3
Material :
PVC/LSZH Jacket
Operating temperature :
-40~+75 Degree
Description

OM3 10G Uniboot LC PC - LC PC Fiber Patch Cord uni-tube Duplex 3.0mm 50 / 125 LSZH ,Plenum and Riser jacket material for 10G Application

The Uniboot patch cord utilizes a special “round duplex” cable that allows duplex transmission within a single cable, and it reduces cable management space comparing to standard patch cords.

As the networking environment of today becomes increasingly dependent on high speed and high density solutions, effective cable management is a real issue. The key concern is how to manage more cable in a smaller amount of space.

Our uniboot fiber patch cord reduces cable management space by up to 68% compared to standard patch cords. The patch cord utilizes a special “round duplex” cable that allows duplex transmission within a single 3mm cable. As a result of these features our uniboot patch cord offers improved airflow and visibility of equipment within a high density network environment. Our uniboot patch cord is available in a wide variety of cable materials including LSZH, Plenum and Riser.

OMC's LC Uniboot cable assemblies offer the best solution for high-density applications, data centers, interconnect and cross connector, private networks and premise installations.

Connector’s Standard:

LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.

Products details.

OM3 10G Uniboot LC PC - LC PC Fiber Patch Cord uni-tube Duplex 3.0mm 50 / 125 LSZH for 10G Application

Optical Specifications:

Fiber Connector Uniboot LC to Uniboot LC Fiber Type

OM3:Aqua
Cable OD&Jacket 3.0mm/3.5mm PVC/LSZH Fiber Counts 2 Fibers
Insertion Loss

≤0.3dB(IEC Grade C)

 Return Loss

MM PC ≥ 35dB(min)
Pull-out Force 100N Durability 500 Cycles
AB Polarity Switchable Available Operating Temperature -40 to + 85°C

Geometric Specification( if Customer requested)

Items Parameter
Polishing PC APC
ROC LC 7~ 25 5 ~ 12
Apex Offset ≤ 50
Fiber Spherical Height ±100
Angle ± 0.5 8 ± 0.5


End-face Quality (MM)

MM PC

Zone Range (μm) Scratches Defects Reference
A: Core 0 to 65 None None

IEC 61300-3

-35:2015
B: Cladding 65 to 115 None None
C: Adhesive 115 to 135 None None
D: Contact 135 to 250 None None
E: Rest of ferrule None None

Length Tolerance

Overall Length(L)(m) length of tolerance(cm)
0<L<1 +5/-0
1<L<10 +10/-0
10<L<40 +15/-0
40<L +0.5% x L/-0

Product Highlights

Uniboot Cable VS. Standard Cable

Uniboot cable has thinner body and can reduce more surface area than standard cable.

High Quality Fibre Optic Cable Guarantee

Comprehensive performance testing makes sure the cable work more securely and data transmission more reliable and stable in your network.

OM3 10G Uniboot LC PC - LC PC Fiber Patch Cord uni-tube Duplex 3.0mm 50 / 125 LSZH for 10G Application

OM3 10G Uniboot LC PC - LC PC Fiber Patch Cord uni-tube Duplex 3.0mm 50 / 125 LSZH for 10G Application
