12F micro fanout Fiber Optic Patch Cord LC APC - LC APC SM OS2 main cable 3.0mm OD fanout 2.0mm Cable OD IEC Grade B1
12F micro fanout Fiber Optic Patch Cord LC APC - LC APC SM OS2 main cable 3.0mm OD fanout 2.0mm Cable OD IEC Grade B1
12F micro fanout Fiber Optic Patch Cord LC APC - LC APC SM OS2 main cable 3.0mm OD fanout 2.0mm Cable OD IEC Grade B1
12F micro fanout Fiber Optic Patch Cord LC APC - LC APC SM OS2 main cable 3.0mm OD fanout 2.0mm Cable OD IEC Grade B1
12F micro fanout Fiber Optic Patch Cord LC APC - LC APC SM OS2 main cable 3.0mm OD fanout 2.0mm Cable OD IEC Grade B1
12F micro fanout Fiber Optic Patch Cord LC APC - LC APC SM OS2 main cable 3.0mm OD fanout 2.0mm Cable OD IEC Grade B1
12F micro fanout Fiber Optic Patch Cord LC APC - LC APC SM OS2 main cable 3.0mm OD fanout 2.0mm Cable OD IEC Grade B1
12F micro fanout Fiber Optic Patch Cord LC APC - LC APC SM OS2 main cable 3.0mm OD fanout 2.0mm Cable OD IEC Grade B1
Specifications
Brand Name :
OEM or OMC
Model Number :
12F micro fanout Fiber Optic Patch Cord LC APC - LC APC SM OS2
Certification :
IEC-61754-7; JIS C5982; TIA-604-5(FOCIS5); Telcordia GR-1435-CORE
Place of Origin :
China
MOQ :
5pcs
Price :
Negotiable
Payment Terms :
Western Union, T/T, Paypal
Supply Ability :
1000000pcs per month
Delivery Time :
3-7days
Packaging Details :
One piece in a plastic bag, several pieces in the carton of 54*39*35cm carton
Mode :
12F micro fanout Fiber Optic Patch Cord LC APC - LC APC SM OS2
Insertion loss :
≤0.12dB(IEC Grade B)
Return loss :
≥60dB
Cable OD :
2.0mm
Fiber Type :
9/125 Single mode
Material :
PVC/LSZH Jacket
Polish Type :
APC
Wavelength :
1310/1550nm
Storage Temperature :
-45~85°C
Description

12F micro fanout Fiber Optic Patch Cord LC APC - LC APC SM OS2 main cable 3.0mm OD fanout 2.0mm Cable OD IEC Grade B1

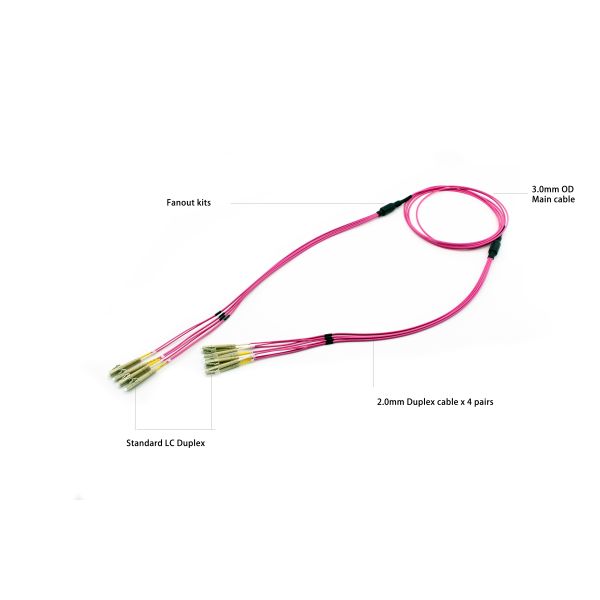

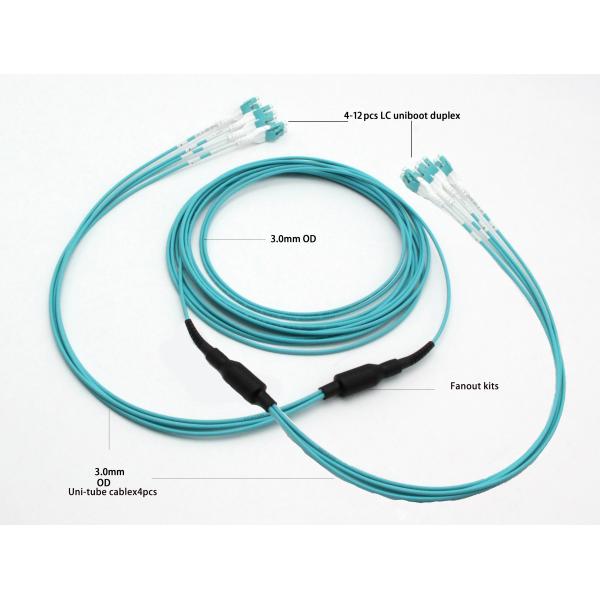

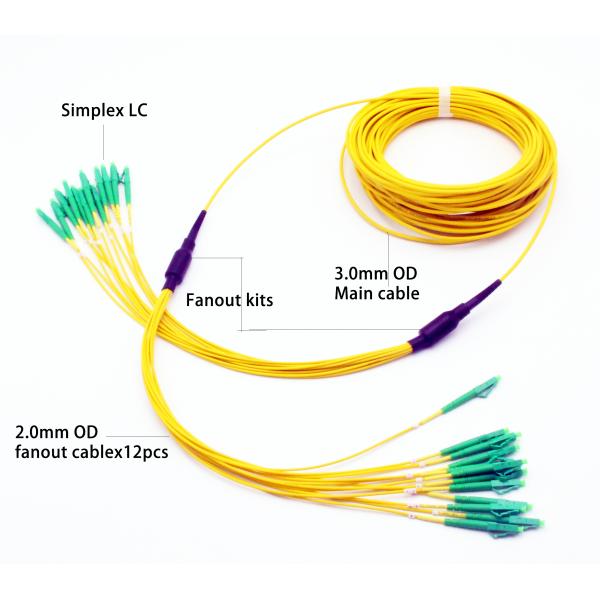

This Patch cord is pre-terminated with a OD of 3.0mm 24F micro-fiber cable. LC/APC 2.0 connector assembled at each ending. The fanout cable OD is 2.0mm. A fanout kits will be installed at the junction of main cable and fanout cable. This new design cable is with small OD but comes with 12F , Save your Optical Cabling space , Lower down cabling difficult , save time and cost.

The 9/125μm OS2 single mode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. It can also save more space for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, and any places fiber patch cables are needed.


This 9/125 OS2 single mode fiber optic cable is ideal for connecting 1G/10G/40G/100G/400G Ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.

Products details.

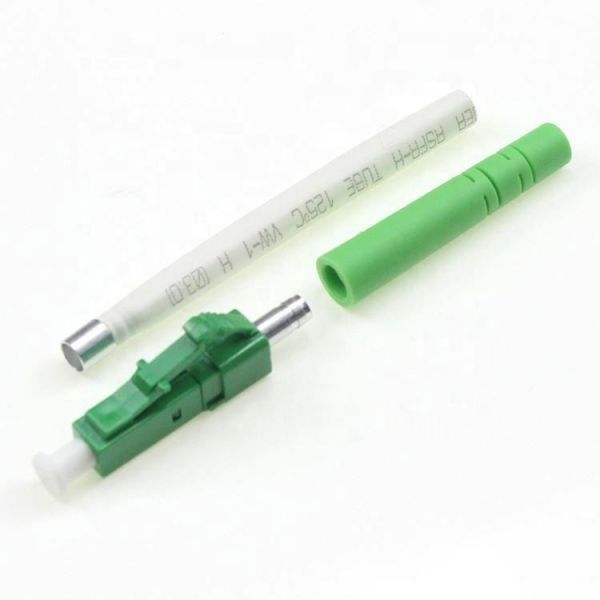

High Quality LC APC Connector meet and Compatible with many International Standard

LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.

12F micro fanout Fiber Optic Patch Cord LC APC - LC APC SM OS2 main cable 3.0mm OD fanout 2.0mm Cable OD IEC Grade B1

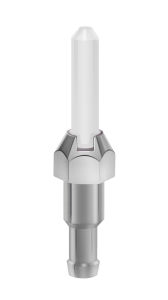

High quality SM Ceramic ferrule, Good concentricity<0.3um

12F micro fanout Fiber Optic Patch Cord LC APC - LC APC SM OS2 main cable 3.0mm OD fanout 2.0mm Cable OD IEC Grade B1

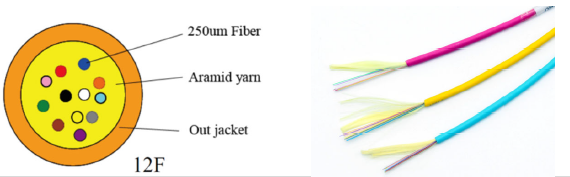

Bend insensitive 657A1 Fiber, 12Fibers in each . Offer best protection for the 250um bare fiber.

LSZH jacket, Meet CPR demand

12F micro fanout Fiber Optic Patch Cord LC APC - LC APC SM OS2 main cable 3.0mm OD fanout 2.0mm Cable OD IEC Grade B1

Fiber Count OD(mm)

Minimum allowable

Tensile Strength (N)

minimum allowable

Crush Load(N/100mm)

Minimum Bending

Radius(MM)
12 3.0±0.15

Short-term: 180；

Long-term: 90

Short-term: 500；

Long-term: 150

Static:10D

Dynamic:20D

Optical performace

Connector Type LC to LC Polish Type APC to APC
Fiber Mode OS2 9/125μm Wavelength 1310/1550nm
Insertion Loss ≤0.12dB(IEC grade B1) Return Loss ≥50dB
Fiber Grade G.657.A1 Minimum Bend Radius 10mm
Attenuation at 1310 nm 0.36 dB/km Attenuation at 1550 nm 0.22 dB/km
Fiber Count 12 Cable Diameter 3.0mm
Cable Jacket PVC/LSZH Polarity A(Tx) to B(Rx)
Operating Temperature -20~70°C Storage Temperature -40~80°C

Quality features:

YOFC G.657.A1 bend insensitive fiber

10.0mm minimum bend radius

Insertion loss and return loss testing

End-face inspection

3D interferometer test

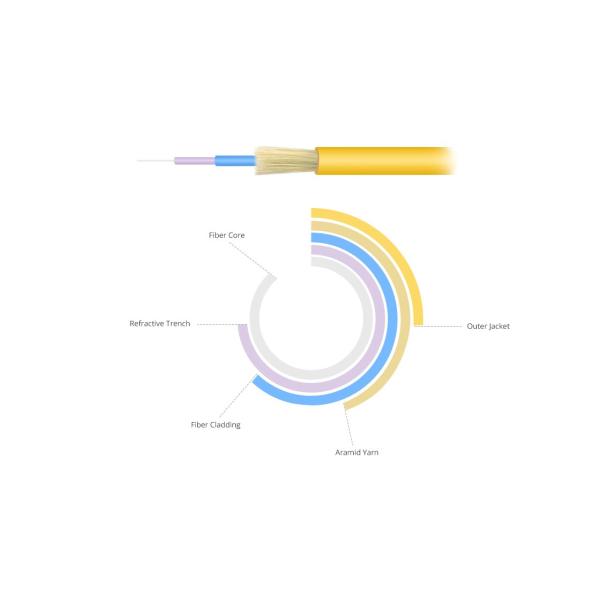

Bend Insensitive Fiber Optic Cable Structure

A unique refractive trench with low refractive index glass layer in BIF, which reduces in light dispersion upon twisting and bending, ensuring network transmission stably and fast.

12F micro fanout Fiber Optic Patch Cord LC APC - LC APC SM OS2 main cable 3.0mm OD fanout 2.0mm Cable OD IEC Grade B1

End-face Quality (SM)

SM UPC

Zone Range (μm) Scratches Defects Reference
A: Core 0 to 25 None None IEC 61300-3-35:2015
B: Cladding 25 to 115 None None
C: Adhesive 115 to 135 None None
D: Contact 135 to 250 None None
E: Rest of ferrule None None

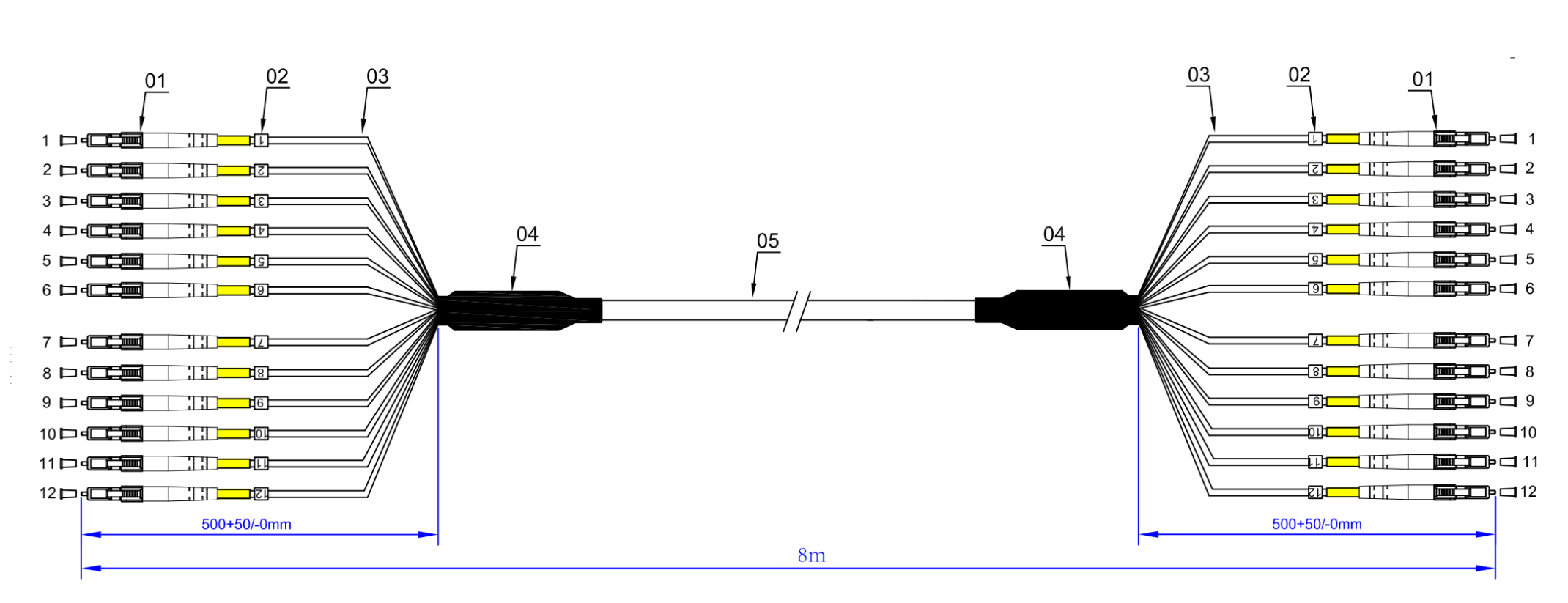

Length Tolerance

12F micro fanout Fiber Optic Patch Cord LC APC - LC APC SM OS2 main cable 3.0mm OD fanout 2.0mm Cable OD IEC Grade B1

Overall Length(L)(m) length of tolerance(cm)
0<L<1 +5/-0
1<L<10 +10/-0
10<L<40 +15/-0
40<L +0.5% x L/-0
