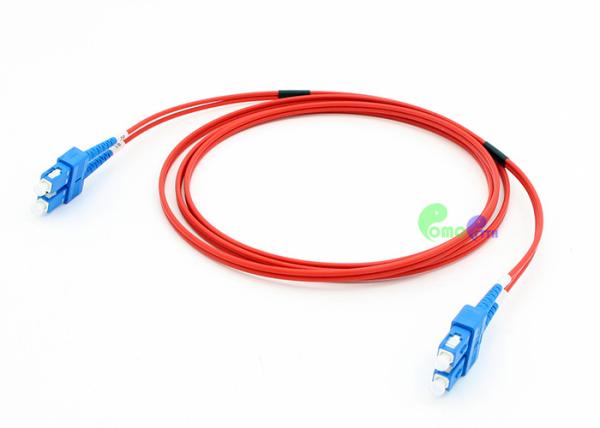

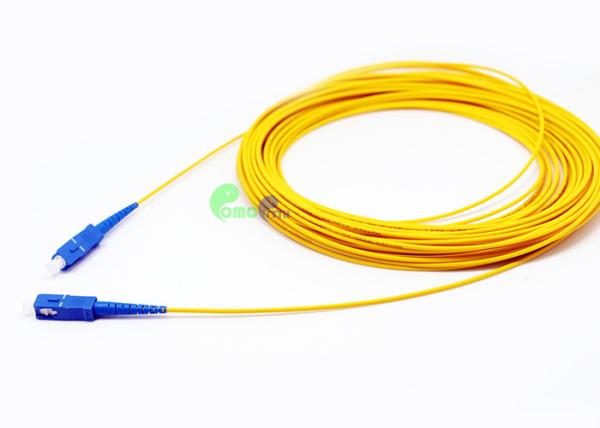

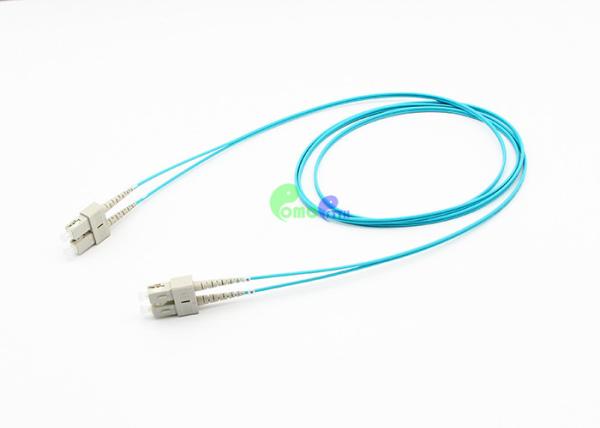

IEC Grade B SC Duplex Fiber Optic Patch Cables High Quality Zirconia Ferrules
IEC Grade B SC Duplex Fiber Optic Patch Cables High Quality Zirconia Ferrules
IEC Grade B SC Duplex Fiber Optic Patch Cables High Quality Zirconia Ferrules
IEC Grade B SC Duplex Fiber Optic Patch Cables High Quality Zirconia Ferrules
IEC Grade B SC Duplex Fiber Optic Patch Cables High Quality Zirconia Ferrules
IEC Grade B SC Duplex Fiber Optic Patch Cables High Quality Zirconia Ferrules
IEC Grade B SC Duplex Fiber Optic Patch Cables High Quality Zirconia Ferrules
IEC Grade B SC Duplex Fiber Optic Patch Cables High Quality Zirconia Ferrules
IEC Grade B SC Duplex Fiber Optic Patch Cables High Quality Zirconia Ferrules
IEC Grade B SC Duplex Fiber Optic Patch Cables High Quality Zirconia Ferrules
Specifications
Brand Name :
OMC or OEM
Model Number :
SC-SC
Certification :
ROHS and ISO
Place of Origin :
China
MOQ :
5 pcs
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T,creit card, paypal, alipay
Supply Ability :
20000 pcs per month
Delivery Time :
3-5 days after payment confirmed
Packaging Details :
One piece in a plastic bag, several pieces in the carton of 54*39*35cm carton
Quality Level :
IEC Grade B
Insertion loss :
<0.12dB (Typical), 0.25dB (Mean)
Return Loss :
MM PC>35dB; SM UPC>50dB; SM APC>60dB
Clean end face ferrule :
100% clean, no dust, no water, no scratch
OEM service :
OEM is available
Company certification :
ISO 9001:2008
Description

IEC Grade B SC patch cord SM , OS2 , OM1 , OM2 , OM3 , OM4 , APC , UPC , Simplex , Duplex Fiber optic patch cables

Premium Low IL for High Speed Data Transmission Connections.

Grade B is based on IEC 61753-1, which is stable with excellent random mating performance between each grade B connector. Max. insertion loss of random mating of grade B patch cable is ≤0.25dB, however, random mating of standard patch cable will be over 0.5dB, even over 1.0dB especially for APC connector.

OMC's fiber patch cord meets RoHS compliant, and all cables are 100% optically tested for insertion loss to ensure high quality, it is very cost-effective for network cabling.

Standard Compliance

· TIA 604 (FOCIS)

· TIA/EIA 492AAAE

· IEC 61754

· IEC 60793-2-10

· IEC61300-3-35

· YD/T1272.1-2003

· RoHS, ISO9001 Compliant

Features

· High quality zirconia ferrules.

· Good repeatability and interchange.

· Flame-retardant, rugged and durable jacket.

· 100% optically tested for insertion loss to ensure high quality

Application

· Data Center

· Enterprise

· Fiber to the X (FTTX)

· LAN and WAN

· CATV Network

· Telecommunications Network

Optical Specifications

Insertion loss

≤0.12dB mean, ≤0.25dB max.

for >97% of sample

 Interchangeability ≤0.2dB
Return loss

SM UPC≥50dB

SM APC≥60dB

MM PC≥35dB

 Vibration ≤0.2dB
Operating temperature -40~75°C Maximum pulling force

70N(2.0mm cable)

100N(3.0mm cable)
Polarity A(Tx) to B(Rx)

Random Mating IL Performance Grades

Connector Grade Master Cord 1 Random Mating Average Random Mating for 97%

Grade According to IEC 61753-1

 Grade A Not Defined Yet Not Defined Yet Not Defined Yet
Grade B ≤0.2dB ≤0.12dB ≤0.25dB
Grade C ≤0.3dB ≤0.25dB ≤0.5dB
Grade D ≤0.3dB ≤0.5dB ≤1.0dB


Notes:

1 A master cord is a perfect cord that has absolute low loss and is used as a base to measure and define the insertion

loss of the tested cord.

2 For Maximum IL, 97% to meet the specification.

3 For Random mating Grade A, specification is not determined yet.

Geometric Specification (only for 3D interferometer tested)

Test items Connectors PC End-face APC End-face
Radius of Curvature SC/FC/ST 10~25 mm 5~12 mm
LC/MU 7~25 mm 5~15 mm
Apex Offset ≤50 um
Fiber Spherical Height +/- 50 nm
Angular Offset ------

8°± 0.2°

OEM Service

1. Cable color, printing word, material of cable jacket, connector’s color

2. OEM Label, Identify ring, cable’s label,box, shipping marks

3. Different quality Level.

Physical Information

IEC Grade B SC Duplex Fiber Optic Patch Cables High Quality Zirconia Ferrules

Length tolerance: 0-5M: +5cm/-0cm ; 5-100m:+10cm/-0cm

IEC Grade B SC Duplex Fiber Optic Patch Cables High Quality Zirconia Ferrules

Packaging & Labeling

IEC Grade B SC Duplex Fiber Optic Patch Cables High Quality Zirconia Ferrules

This easily taken and well-protected fiber patch cable package has been labelled and marked by OMC as default .Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm . Which carton to be used depends on goods Qty . Packing can be customized.

IEC Grade B SC Duplex Fiber Optic Patch Cables High Quality Zirconia Ferrules

IEC Grade B SC Duplex Fiber Optic Patch Cables High Quality Zirconia Ferrules

IEC Grade B SC Duplex Fiber Optic Patch Cables High Quality Zirconia Ferrules

IEC Grade B SC Duplex Fiber Optic Patch Cables High Quality Zirconia Ferrules

IEC Grade B SC Duplex Fiber Optic Patch Cables High Quality Zirconia Ferrules
