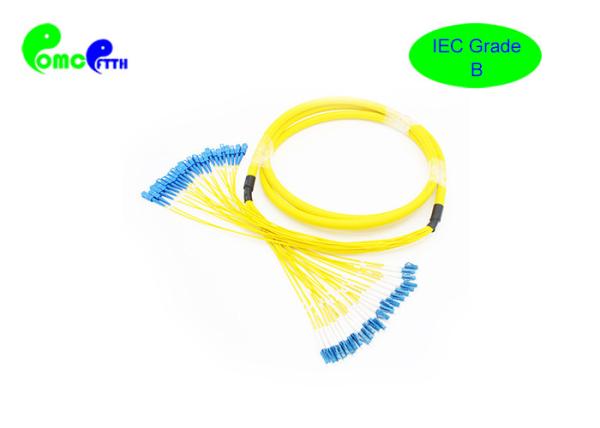

24F Pre-terminated SC UPC - LC UPC Fibre Optic Patch Cord SM 9 / 125μm with break out 2.0mm tail IEC Grade B quality
24F Pre-terminated SC UPC - LC UPC Fibre Optic Patch Cord SM 9 / 125μm with break out 2.0mm tail IEC Grade B quality
24F Pre-terminated SC UPC - LC UPC Fibre Optic Patch Cord SM 9 / 125μm with break out 2.0mm tail IEC Grade B quality
24F Pre-terminated SC UPC - LC UPC Fibre Optic Patch Cord SM 9 / 125μm with break out 2.0mm tail IEC Grade B quality
Specifications
Brand Name :
OMC or OEM
Model Number :
IEC Grade B 24F LC UPC - LC UPC Fanout 2.0mm 9 / 125μm
Certification :
RoHS ISO9001
Place of Origin :
China
MOQ :
10pcs
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000pcs per week
Delivery Time :
5-15 working days
Packaging Details :
Carton Box
Price :
Negotiable
Products :
IEC Grade B 24F LC UPC - LC UPC Fanout 2.0mm 9 / 125μm Fibre Optic Patch Cable
Insertion Loss :
≤0.12dB(IEC Grade B)
Return loss :
UPC ≥ 50dB
Wavelength :
1310/1550nm
Operating temperature :
-40~75°C
Fiber Mode :
9 / 125μm
Description

24F Pre-terminated SC UPC - LC UPC Fibre Optic Patch Cord SM 9 / 125μm with break out 2.0mm tail IEC Grade B quality

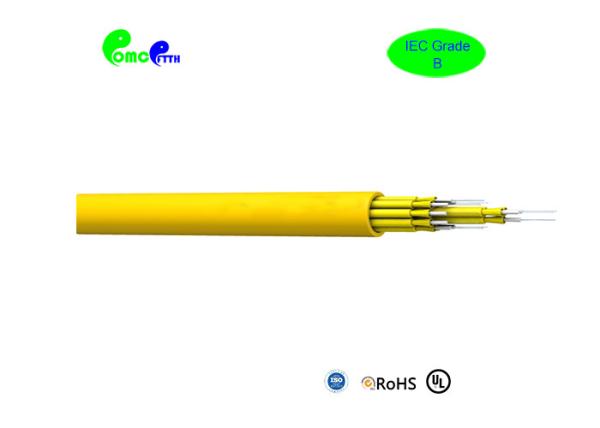

Breakout Patch cables are installation cables that are suitable for laying in buildings, primarily in cable conduits and cable trays. They are designed for direct connector assembly with no need for splice connectors.

The 9/125μm OS2 single mode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. It can also save more space for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, and any places fiber patch cables are needed.


This 9/125 OS2 single mode fiber optic cable is ideal for connecting 1G/10G/40G/100G/400G Ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.

Connector’s Standard:

LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.

Optical Specifications

Connector LC to LC Jacket OD(mm)

15.5mm
Fiber Mode 9/125μm Jacket Color

Yellow
Polish UPC Wavelength

1310/1550nm
fanout Cable OD 2.0MM Jacket Material LSZH
Insertion loss ≤0.3dB(IEC Grade C) Insertion loss ≤0.12dB(IEC Grade B)
Return loss

UPC ≥ 50dB

 Interchangeability &Vibration ≤0.2dB
Operating temperature -40~75°C Storage temperature -45~85°C

Length Tolerance

24F Pre-terminated SC UPC - LC UPC Fibre Optic Patch Cord SM 9 / 125μm with break out 2.0mm tail IEC Grade B quality

Overall Length(L)(m) length of tolerance(cm)
0<L<1 +5/-0
1<L<10 +10/-0
10<L<40 +15/-0
40<L +0.5% x L/-0

End-face Quality (SM)

Zone Range (μm) Scratches Defects Reference
A: Core 0 to 25 None None IEC 61300-3-35:2015
B: Cladding 25 to 115 None None
C: Adhesive 115 to 135 None None
D: Contact 135 to 250 None None
E: Rest of ferrule None None

Packaging
This easily taken and well-protected fiber optical cable package has been labelled and marked by OMC as de
fault .Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm . Which carton to be used depends on goods
Qty . Packing can be customized.
24F Pre-terminated SC UPC - LC UPC Fibre Optic Patch Cord SM 9 / 125μm with break out 2.0mm tail IEC Grade B quality

Company Information:

OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.

24F Pre-terminated SC UPC - LC UPC Fibre Optic Patch Cord SM 9 / 125μm with break out 2.0mm tail IEC Grade B quality

24F Pre-terminated SC UPC - LC UPC Fibre Optic Patch Cord SM 9 / 125μm with break out 2.0mm tail IEC Grade B quality

24F Pre-terminated SC UPC - LC UPC Fibre Optic Patch Cord SM 9 / 125μm with break out 2.0mm tail IEC Grade B quality

24F Pre-terminated SC UPC - LC UPC Fibre Optic Patch Cord SM 9 / 125μm with break out 2.0mm tail IEC Grade B quality

24F Pre-terminated SC UPC - LC UPC Fibre Optic Patch Cord SM 9 / 125μm with break out 2.0mm tail IEC Grade B quality

24F Pre-terminated SC UPC - LC UPC Fibre Optic Patch Cord SM 9 / 125μm with break out 2.0mm tail IEC Grade B quality

24F Pre-terminated SC UPC - LC UPC Fibre Optic Patch Cord SM 9 / 125μm with break out 2.0mm tail IEC Grade B quality

FAQ:

1. Are you the real factory?

Yes,we are the real factory more than 10 years

2. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.

3. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.

4. What is your delivery time?

Within 24 hours for normal kinds of fiber optic cable;

3~5 days for fiber optic patch cords with 10000 connectors.

5. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.

6. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.

7. Payment

For large orders: T/T, L/C

For small orders: T/T,Western Union and Paypal are acceptable
