OM5 Multimode PVC Patch Cord Fiber Jumper Duplex 1m MTRJ To MTRJ High Anti Tensility
OM5 Multimode PVC Patch Cord Fiber Jumper Duplex 1m MTRJ To MTRJ High Anti Tensility
OM5 Multimode PVC Patch Cord Fiber Jumper Duplex 1m MTRJ To MTRJ High Anti Tensility
OM5 Multimode PVC Patch Cord Fiber Jumper Duplex 1m MTRJ To MTRJ High Anti Tensility
OM5 Multimode PVC Patch Cord Fiber Jumper Duplex 1m MTRJ To MTRJ High Anti Tensility
OM5 Multimode PVC Patch Cord Fiber Jumper Duplex 1m MTRJ To MTRJ High Anti Tensility
OM5 Multimode PVC Patch Cord Fiber Jumper Duplex 1m MTRJ To MTRJ High Anti Tensility
OM5 Multimode PVC Patch Cord Fiber Jumper Duplex 1m MTRJ To MTRJ High Anti Tensility
OM5 Multimode PVC Patch Cord Fiber Jumper Duplex 1m MTRJ To MTRJ High Anti Tensility
OM5 Multimode PVC Patch Cord Fiber Jumper Duplex 1m MTRJ To MTRJ High Anti Tensility
Specifications
Brand Name :
OMC or OEM
Model Number :
MTRJ-MTRJ Duplex patch cable
Certification :
ROHS and ISO
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, Paypal
Supply Ability :
20000 per month
Delivery Time :
3-7 work days
Packaging Details :
one peace in box, several pieces in cartoon
product :
MTRJ-MTRJ Duplex MM Patch cord
Polish Type :
PC to PC
Fiber Mode :
50/125μm
Fiber Count :
Duplex
Fiber Grade :
OM2
Cable Diameter :
3.0mm
Insertion Loss :
≤0.3dB
Return Loss :
≥30dB
Cable Color :
Green
Storage Temperature :
-45~85°C
Description

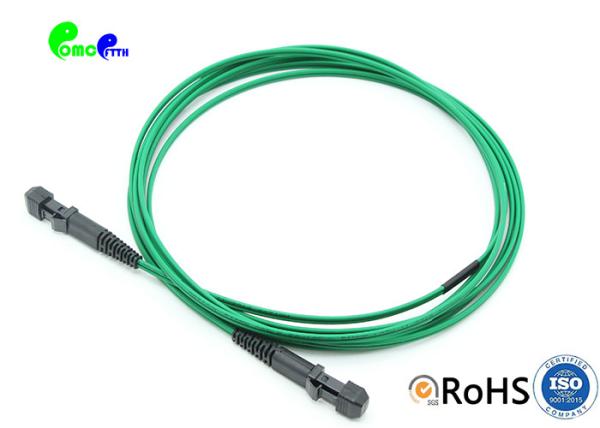

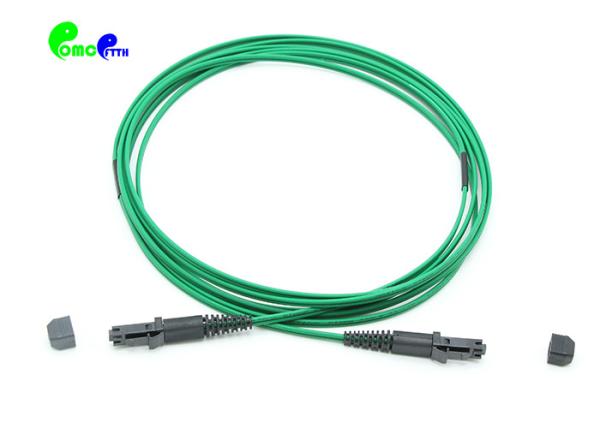

1m MTRJ to MTRJ Duplex OM5 Multi Mode PVC (OFNR) 3.0mm Fiber Optic Patch Cable Fiber Jumper

Patch Cords are used to provide optical connection for fiber optic electronics. The use of the patch cord provides a quick and easy method for routing fiber patches in data centers, head-ends, cellular hubs and central offices. The patch cord can be used in interconnect or cross-connect path connecting the incoming fibers to the electronic equipment and providing patching within the fiber paths. Patch Cords include simplex, duplex and Multi-fibers assemblies.

OMC’s Patch cables are manufactured and tested in compliance with TIA 604 (FOCIS), IEC 61754 and YD/T industry standards. OM1, OM2, OM3, OM4, OM5 or OS2 fiber types to meet the demand of Gigabit Ethernet, 10 Gigabit Ethernet and high speed Fiber Channel. Every termination through rigorous parameter test to ensure the highest in network performance.

Connector’s Standard:

MTRJ: TIA/EIA, FOCIS12, GR-326. IEC and JIS C5973.

Features:

High anti-tensility; High anti-pressure

High bent Resistance; Anti-bite from rodent animals

Flexible, convenient to connection and easy to deploy

Don’t worry about damage in project, Save space

PRODUCTS SPECIFICATIONS:

Connector MTRJ Polish PC
Fiber Mode 50/125μm Jacket Color MM:Green
Cable OD 3.0mm Wavelength MM:850nm
Cable Type Duplex Jacket Material LSZH/PVC/OFNR/OFNP
Insertion loss

≤0.3dB(IEC Grade C)

≤0.12dB(IEC Grade B)

 Crush Resistance(N/100mm)

Long term 3000;

short term:5000
Return loss MM PC ≥ 30dB(min) Interchangeability &Vibration ≤0.2dB
Tensile Strength(N)

Long term 100;

short term:200

 Operation&Storage temperature -45~85°C

End-face Quality (MM)

Zone Range (μm) Scratches Defects Reference
A: Core 0 to 65 None None IEC 61300-3-35:2015
B: Cladding 65 to 115 None None
C: Adhesive 115 to 135 None None
D: Contact 135 to 250 None None
E: Rest of ferrule None None

Length Tolerance

Overall Length(L)(m) length of tolerance(cm)
0<L<1 +5/-0
1<L<10 +10/-0
10<L<40 +15/-0
40<L +0.5% x L/-0

OM5 Multimode PVC Patch Cord Fiber Jumper Duplex 1m MTRJ To MTRJ High Anti Tensility

Company Information

OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.

OM5 Multimode PVC Patch Cord Fiber Jumper Duplex 1m MTRJ To MTRJ High Anti TensilityOM5 Multimode PVC Patch Cord Fiber Jumper Duplex 1m MTRJ To MTRJ High Anti Tensility

High Quality Fibre Optic Cable Guarantee

Comprehensive performance testing makes sure the cable work more securely and data transmission more reliable and stable in your network.

OM5 Multimode PVC Patch Cord Fiber Jumper Duplex 1m MTRJ To MTRJ High Anti Tensility

Certification:

Our products are confirmed by these certifications

OM5 Multimode PVC Patch Cord Fiber Jumper Duplex 1m MTRJ To MTRJ High Anti Tensility

OM5 Multimode PVC Patch Cord Fiber Jumper Duplex 1m MTRJ To MTRJ High Anti Tensility

OM5 Multimode PVC Patch Cord Fiber Jumper Duplex 1m MTRJ To MTRJ High Anti Tensility

OM5 Multimode PVC Patch Cord Fiber Jumper Duplex 1m MTRJ To MTRJ High Anti Tensility

FAQ:

1. Are you the real factory?

Yes,we are the real factory more than 10 years

2. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.

3. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.

4. What is your delivery time?

Within 24 hours for normal kinds of fiber optic cable;

3~5 days for fiber optic patch cords with 10000 connectors.

5. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.

6. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.

7. Payment

For large orders: T/T, L/C

For small orders: T/T,Western Union and Paypal are acceptable
