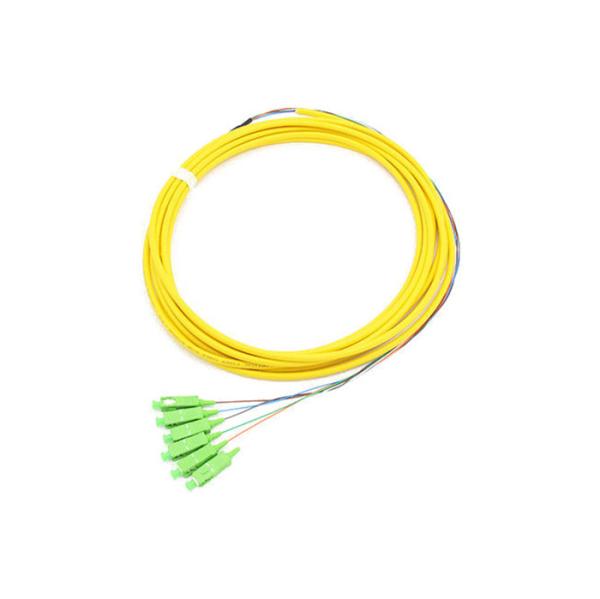

SC APC Pre-terminated Breakout 0.9mm Optical Fiber Pigtail 6 Fibers OS2 G652D 5m PVC Yellow Patch Cable

Pre-terminated Patch cable also be called Bunch/Distribution patch cable or Mini breakout patch cable. It’s a installation cables that are suitable for laying in buildings, primarily in cable conduits and cable trays. They are designed for direct connector assembly with no need for splice connectors.

OMC’s Patch cables are manufactured and tested in compliance with TIA 604 (FOCIS), IEC 61754 and YD/T industry standards. OM1, OM2, OM3, OM4, OM5 or OS2 fiber types to meet the demand of Gigabit Ethernet, 10 Gigabit Ethernet and high-speed Fiber Channel. Every termination through rigorous parameter test to ensure the highest in network performance.

Connector’s Standard:

SC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.

Optical Specification

End-face Quality (SM)

Features

1. 100% pre-terminated and tested in factory to ensure transfer performance.

2. Rapid configuration and networking, reduce installation time.

3. Supports 40G and 100G network applications.

4. Low insertion loss and added loss.

5. Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available.

6. High back loss, small volume, light weight.

7. End-face geometry and quality superior than IEC and Telcordia standards.

8. LSZH, OFNP, OFNR cable jacket.

9. Mechanical performance: IEC 61754-20 standard.

10. RoHS and REACH materials compliant.

Product Highlights

A Variety of Applications in Different Equipments

Widely used in CATV, FTTH/FTTX, telecommunication networks, premise installations, Data processing networks, LAN/WAN network, and more.

Length Tolerance

Application:

The 9/125μm OS2 single mode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. It can also save more space for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, and any places fiber patch cables are needed.

This 9/125 OS2 single mode fiber optic cable is ideal for connecting 1G/10G/40G/100G/400G Ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.
