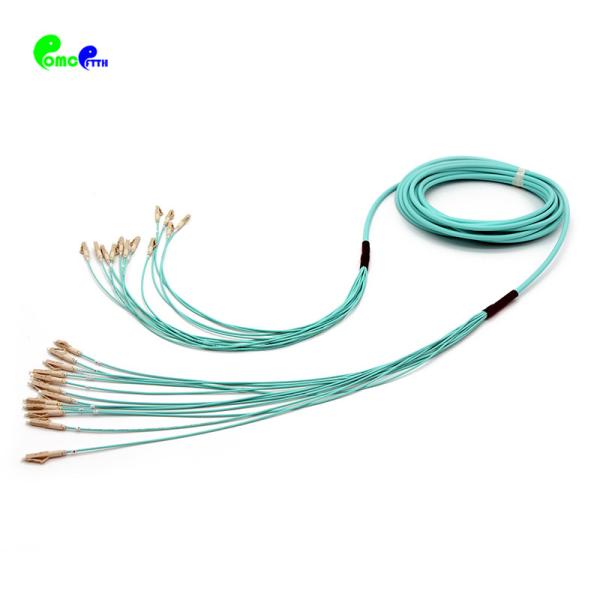

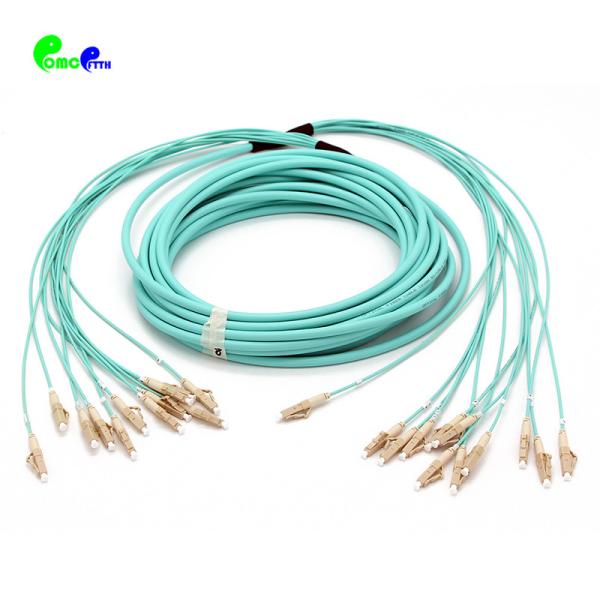

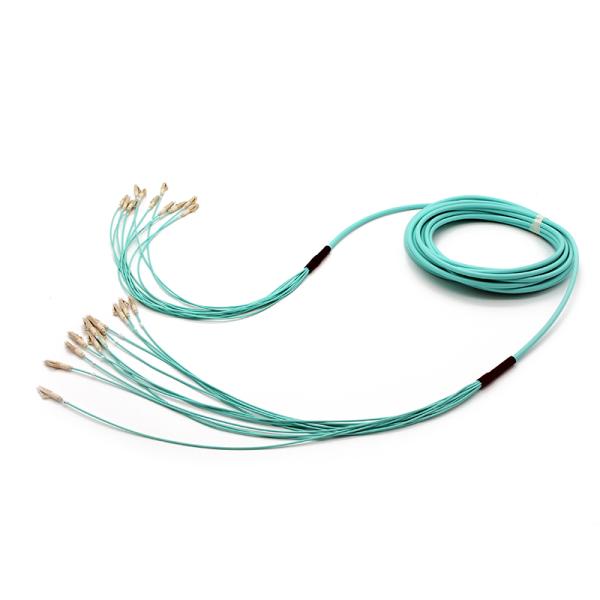

Low loss Fiber Optic Patch Cables 12F LC - LC OM3 50/125 Breakout 2mm 10M patch cord LSZH Aqua color
Low loss Fiber Optic Patch Cables 12F LC - LC OM3 50/125 Breakout 2mm 10M patch cord LSZH Aqua color
Low loss Fiber Optic Patch Cables 12F LC - LC OM3 50/125 Breakout 2mm 10M patch cord LSZH Aqua color
Low loss Fiber Optic Patch Cables 12F LC - LC OM3 50/125 Breakout 2mm 10M patch cord LSZH Aqua color
Low loss Fiber Optic Patch Cables 12F LC - LC OM3 50/125 Breakout 2mm 10M patch cord LSZH Aqua color
Low loss Fiber Optic Patch Cables 12F LC - LC OM3 50/125 Breakout 2mm 10M patch cord LSZH Aqua color
Specifications
Brand Name :
OMC or OEM
Model Number :
LC-LC OM3 Breakout 2.0mm
Place of Origin :
China
MOQ :
1 pcs
Price :
USD 10-30
Payment Terms :
Western Union, L/C, T/T,creit card, paypal, alipay
Supply Ability :
300000 pcs per month
Delivery Time :
3-5 days after payment confirmed
Packaging Details :
One piece in a plastic bag, several pieces in the carton of 54*39*35cm carton
Certification :
ROHS and ISO
Product Name :
LC 12F Breakout Patch Cable
Connector :
LC MM PC
Insertion loss :
<0.2dB (Typical), 0.3dB (Max)
Return Loss :
PC>35dB
Quality Level :
IEC Grade C
100% 3D interference tested :
Available
Clean end face ferrule :
100% clean, no dust, no water, no scratch
OEM service :
OEM is available
Description

Low loss Fiber Optic Patch Cables 12F LC-LC OM3 50/125 Breakout 2mm patch cord LSZH Aqua

Patch Cables are used to provide optical connection for fiber optic electronics. The use of the patch cord provides a quick and easy method for routing fiber patches in data centers, head-ends, cellular hubs and central offices.

The patch cord can be used in interconnect or cross-connect path connecting the incoming fibers to the electronic equipment and providing patching within the fiber paths.

OMC’s Breakout fiber patch cable can be used as a building backbone or horizontal distribution, and they are operating in an uncontrolled or harsh environment.

Products info

Fiber count 12 Fiber Mode 50/125μm
Connector Type1 LC/PC Connector Type2 LC/PC
Fiber Mode 50/125μm Breakout length 0.5m
Wavelength 850/1310nm Jacket Material PVC/LSZH
Insertion loss ≤0.3dB Interchangeability ≤0.2dB
Return loss ≥50dB Vibration ≤0.2dB
Operating temperature -40~75°C Storage temperature -45~85°C

Geometric Specification (only for 3D interferometer tested)

Test items Connectors PC End-face APC End-face
Radius of Curvature LC 7~25 mm 5~15 mm
Apex Offset ≤50 um
Fiber Spherical Height +/- 50 nm
Angular Offset ------ 8°± 0.2°

Low loss Fiber Optic Patch Cables 12F LC - LC OM3 50/125 Breakout 2mm 10M patch cord LSZH Aqua color

Low loss Fiber Optic Patch Cables 12F LC - LC OM3 50/125 Breakout 2mm 10M patch cord LSZH Aqua color

CUSTOM option

OMC also provides a full set of OEM services, such as fiber connector, length, color, fiber grade, specification, material, package etc.

Packaging & Labeling

Low loss Fiber Optic Patch Cables 12F LC - LC OM3 50/125 Breakout 2mm 10M patch cord LSZH Aqua color

This easy to take and well-protected fiber optical cable package has been labelled and marked by OMC as default.

How to Choose The Right Fiber Optic Cable Type?

PS:The difference of OM4 and OM3 fiber mode as the following
1. OM4 was developed specifically for VSCEL laser transmission and allows 10 Gig / second link distances of up to 550 Meters (compared to 300M with OM3).
2. The effective modal bandwidth for OM4 is more than double that of OM3.
3. For OM4 patch cable it is 4700 MHz.km while for OM3 it is 2000 MHz.km.

Designation Fiber Dia.(μm) Type Fast Ethernet 100BASE-FX 1 Gigabit Ethernet 1000BASE-SX 1 Gigabit Ethernet 1000BASE-LX 10Gbps Ethernet 10GBASE 40Gbps Ethernet 40GBASE SR4 100Gbps Ethernet 100GBASE SR4
OM1 62.5/125 Multimode 2000 Meters 275 Meters 550 Meters 33 Meters Not supported Not supported
OM2 50/125 Multimode 2000 Meters 550 Meters 550 Meters 82 Meters Not supported Not supported
OM3(Laser Optimized) 50/125 Multimode 2000 Meters 550 Meters 550 Meters 300 Meters 100 Meters(SR4) 100 Meters(SR4)
OM4(Laser Optimized) 50/125 Multimode 2000 Meters 550 Meters 550 Meters 400 Meters 150 Meters(SR4) 150 Meters(SR4)
Singlemode 9/125 Singlemode 2000 Meters 5km at 1310nm 5km at 1310nm 10km at 1310nm N/A N/A

How to correctly choose between PVC, LSZH and OFNP?

Fiber patch cables are now widely used for indoor applications like buildings, factories, office parks ,campuses and so on. Whether you choose PVC, LSZH or OFNP jacket depends on where you're going to run the cable.

Low loss Fiber Optic Patch Cables 12F LC - LC OM3 50/125 Breakout 2mm 10M patch cord LSZH Aqua color
