Fiber Optic Patch cable SC LC FC ST Simplex Duplex SM 9 / 125 OM1 OM2 OM3 OM4 OM5 OFNR OFNP LSZH PVC Cable

FIber Patch Cables are used to provide optical connection for fiber optic electronics. The use of the patch cord provides a quick and easy method for routing fiber patches in data centers, head-ends, cellular hubs and central offices. The patch cord can be used in interconnect or cross-connect path connecting the incoming fibers to the electronic equipment and providing patching within the fiber paths. Patch Cords include simplex, duplex and Multi-fibers assemblies.

OMC’s Patch cables are manufactured and tested in compliance with TIA 604 (FOCIS), IEC 61754 and YD/T industry standards. OM1, OM2, OM3, OM4, OM5 or OS2 fiber types to meet the demand of Gigabit Ethernet, 10 Gigabit

Ethernet and high speed Fiber Channel. Every termination through rigorous parameter test to ensure the highest in network performance.

Connector’s Standard:

SC: TIA/EIA, FOCIS3, GR-326.NTT-SC IEC61754-4 and JIS C5973.

LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.

FC: EIA /TIA-604-04, FOCIS4, NTT-FC, GR-326. IEC61754-13 and JIS C5973

ST: TIA/EIA, FOCIS2, GR-326. IEC61754-2 and JIS C5973 Etc.

MU: TIA/EIA-604-3A, GR-326.NTT-MU, JIS and IEC.

MTRJ: TIA/EIA, FOCIS12, GR-326. IEC and JIS C5973.

DIN: IEC61754-3

E2000: IEC61754-15

Available Connector:

Patch cable types

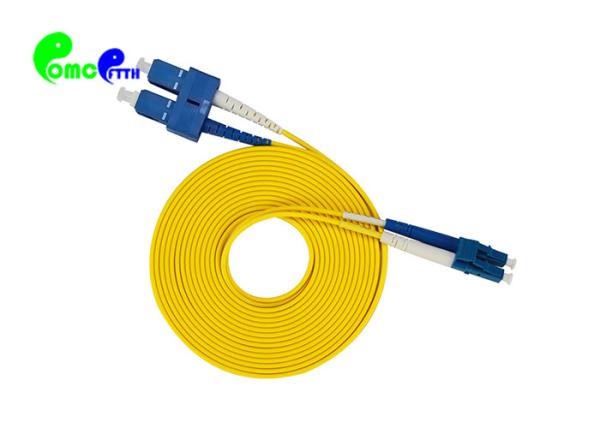

SIngle mode Patch cables

This 9/125 OS2 single mode fiber optic cable is ideal for connecting 1G/10G/40G/100G/400G Ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.

Specification:

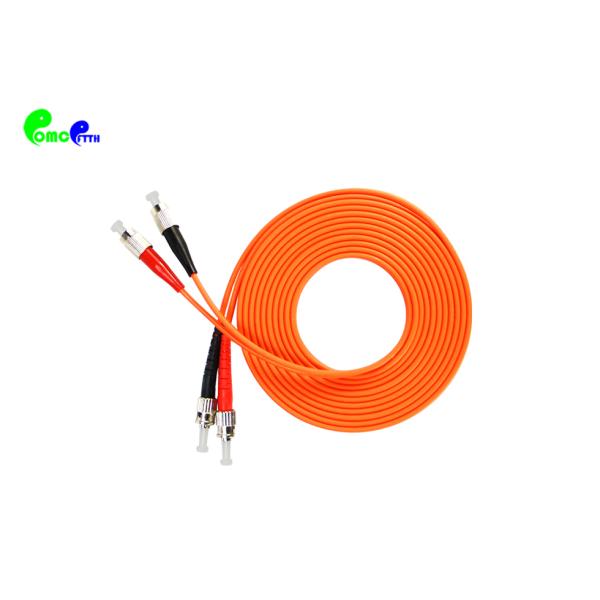

MM OM1 62.5/125 Patch cables

This 62.5/125 OM1 multimode fiber optic cable is ideal for connecting 100/1000BASE-SX transceivers etc. for fast Ethernet, gigabit Ethernet and fiber channel applications.

Specification:

MM OM2 50/125 Patch cables

This 50/125 OM2 multimode fiber optic cable is ideal for connecting 1000BASE-SX, SFP transceivers etc. for gigabit Ethernet and fiber channel applications.

Specification:

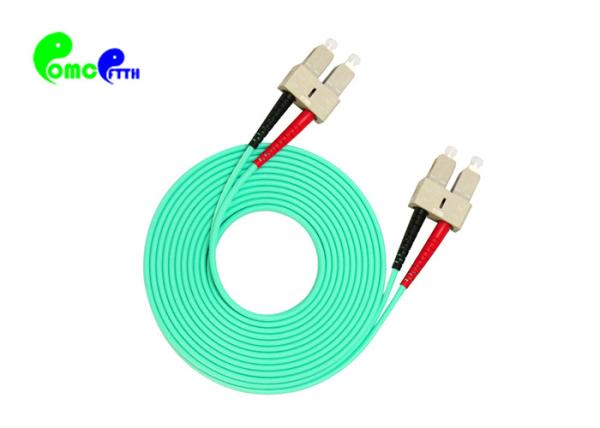

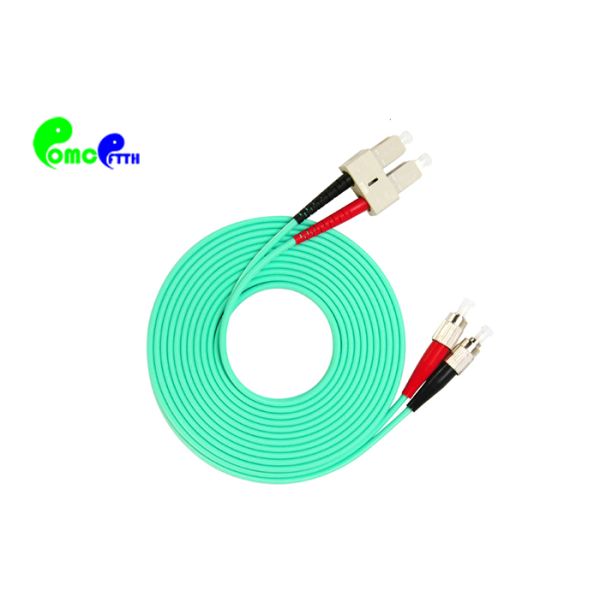

MM OM3 50/125 Patch cables

This 50/125 OM3 multimode fiber optic cable is ideal for connecting 10G SR, 10G LRM, SFP+ transceivers etc. for 10G/40G/100G Ethernet connections and is the preferred fiber specification for 10G Ethernet connections.

Specification:

MM OM4 50/125 Patch cables

This 50/125 OM4 multimode fiber optic cable is ideal for connecting 40G BIDI SR, 10G SR, QSFP+, SFP+ transceivers etc. for 10G/40G/100G Ethernet connections and is the preferred fiber specification for 40G/100G applications.

Specification:

MM OM5 50/125 Patch cables

OM5 meets TIA-492AAAE and draft IEC 60793-2-10 A1a.4 requirements while completely backward compatible with existing OM4 networks and applications. It meets RoHS compliant and the fiber patch cord is optically tested for insertion loss to ensure high quality.

Specification:

Length Tolerance

---

Certification:

Our products are confirmed by these certifications

---

---

FAQ:

1. Are you the real factory?

Yes,we are the real factory more than 10 years

2. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.

3. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.

4. What is your delivery time?

Within 24 hours for normal kinds of fiber optic cable;

3~5 days for fiber optic patch cords with 10000 connectors.

5. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.

6. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.

7. Payment

For large orders: T/T, L/C
