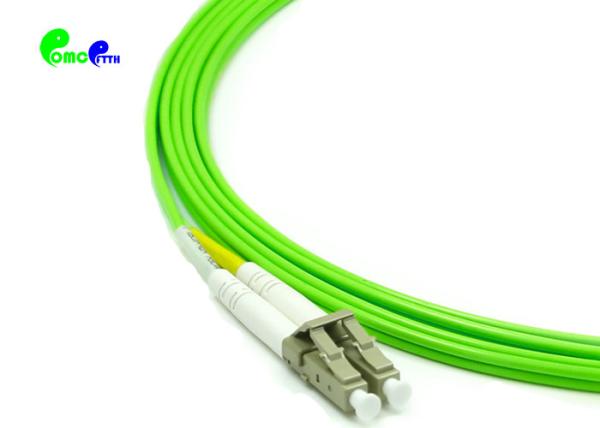

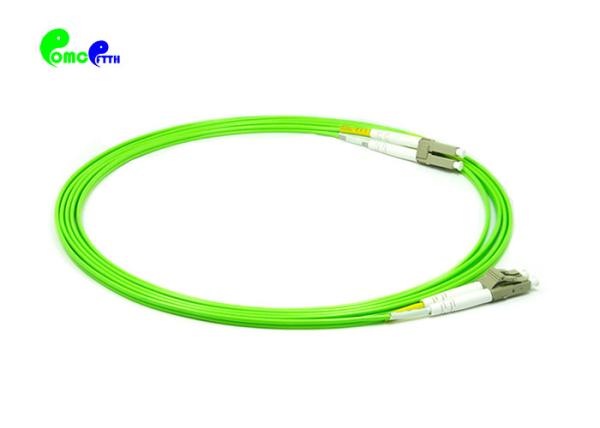

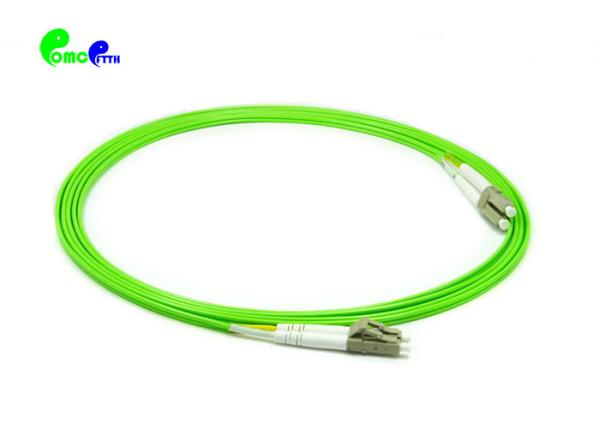

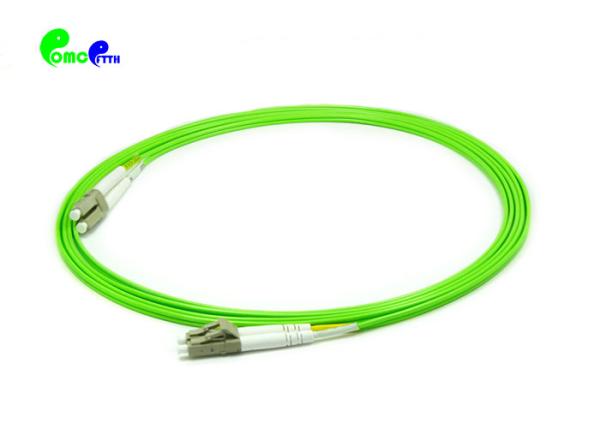

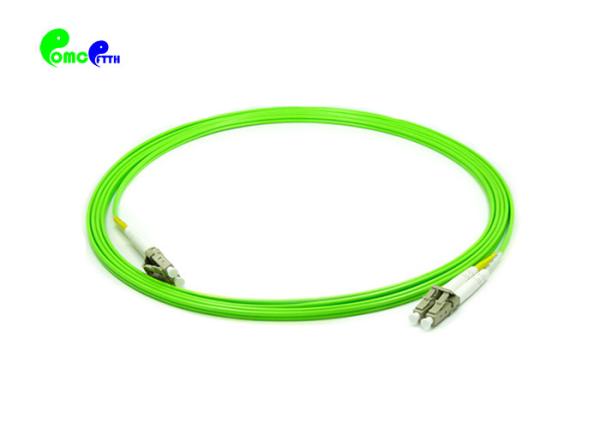

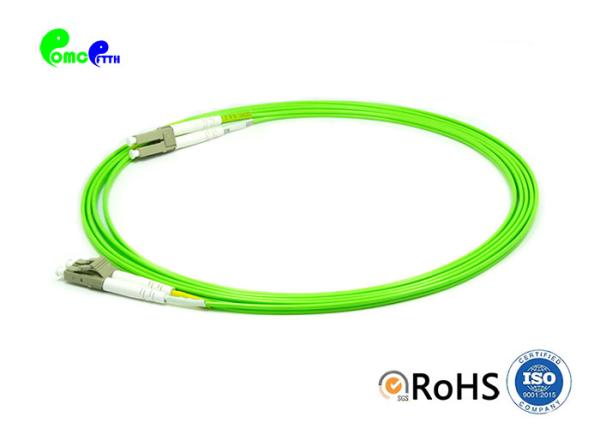

OM5 Fiber Optic Patch Cables LC PC To LC PC Duplex OM5 50 / 125 2M LSZH for 100Gig Data Center
OM5 Fiber Optic Patch Cables LC PC To LC PC Duplex OM5 50 / 125 2M LSZH for 100Gig Data Center
OM5 Fiber Optic Patch Cables LC PC To LC PC Duplex OM5 50 / 125 2M LSZH for 100Gig Data Center
OM5 Fiber Optic Patch Cables LC PC To LC PC Duplex OM5 50 / 125 2M LSZH for 100Gig Data Center
OM5 Fiber Optic Patch Cables LC PC To LC PC Duplex OM5 50 / 125 2M LSZH for 100Gig Data Center
OM5 Fiber Optic Patch Cables LC PC To LC PC Duplex OM5 50 / 125 2M LSZH for 100Gig Data Center
OM5 Fiber Optic Patch Cables LC PC To LC PC Duplex OM5 50 / 125 2M LSZH for 100Gig Data Center
OM5 Fiber Optic Patch Cables LC PC To LC PC Duplex OM5 50 / 125 2M LSZH for 100Gig Data Center
OM5 Fiber Optic Patch Cables LC PC To LC PC Duplex OM5 50 / 125 2M LSZH for 100Gig Data Center
OM5 Fiber Optic Patch Cables LC PC To LC PC Duplex OM5 50 / 125 2M LSZH for 100Gig Data Center
OM5 Fiber Optic Patch Cables LC PC To LC PC Duplex OM5 50 / 125 2M LSZH for 100Gig Data Center
OM5 Fiber Optic Patch Cables LC PC To LC PC Duplex OM5 50 / 125 2M LSZH for 100Gig Data Center
Specifications
Brand Name :
OEM or OMC
Model Number :
LC PC To LC PC OM5 Fiber Optic Patch Cables
Certification :
ROHS and ISO
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
Western Union, T/T, Paypal
Supply Ability :
100000pcs per month
Delivery Time :
3-7days
Packaging Details :
One piece in a plastic bag, several pieces in the carton of 54*39*35cm carton
Products :
LC PC To LC PC Duplex OM5 50 / 125 LSZH
Connector Type :
MM PC
Fiber Count :
Duplex
Fiber Mode :
850 nm
Insertion Loss :
≤0.3dB
Return Loss :
≥30dB
Fiber Grade :
OM5 50/125 Bend InsensitiveFiber
Cable Diameter :
2.0mm
Cable Jacket :
LSZH
Operating Temperature :
-20~70°C
Description

OM5 Fiber Optic Patch Cables LC PC To LC PC Duplex OM5 50 / 125 2M LSZH for 100Gig Data Center

OM5 wideband multimode bend insensitive fiber optimized for multi-wavelengths transmission systems operating in the range of 850-950nm, enabling optimal support of emerging Shortwave Wavelength Division Multiplexing (SWDM) applications that reduce parallel fiber count by at least a factor of four to allow continued use of just two fibers (rather than eight) for transmitting 40 Gb/s and 100 Gb/s and reduced fiber counts for higher speeds.
OM5 meets TIA-492AAAE and draft IEC 60793-2-10 A1a.4 requirements while completely backward compatible with existing OM4 networks and applications. It meets RoHS compliant and the fiber patch cord is optically tested for insertion loss to ensure high quality.

Connector's Standard

LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.

Specification

Connector Type LC to LC Polish Type UPC to UPC
Fiber Mode OM5 50/125μm Wavelength 850/1300nm
40G Ethernet Distance 440m at 850nm 100G Ethernet Distance 150m at 850nm
Insertion Loss ≤0.3dB Return Loss ≥30dB
Fiber Grade Bend Insensitive Minimum Bend Radius 7.5mm
Attenuation at 850nm 3.0 dB/km Attenuation at 1300nm 1.0 dB/km
Effective Modal Bandwidth (at 850nm) ≥4700 MHz·km Effective Modal Bandwidth (at 953nm) ≥2470 MHz·km
Fiber Count Duplex Cable Diameter 2.0mm
Cable Jacket PVC Polarity A(Tx) to B(Rx)
Operating Temperature -20~70°C Storage Temperature -40~80°C

Physical Information:

OM5 Fiber Optic Patch Cables LC PC To LC PC Duplex OM5 50 / 125 2M LSZH for 100Gig Data Center

Length Tolerance

Overall Length(L)(m) length of tolerance(cm)
0<L<1 +5/-0
1<L<10 +10/-0
10<L<40 +15/-0
40<L +0.5% x L/-0

Custom option

OMC also provides a full set of OEM services, such as fiber connector, length, color, fiber grade, specification, material, package etc.

Bend Insensitive Fiber Optic Cable Structure

A unique refractive trench with low refractive index glass layer in BIF, which reduces in light dispersion upon twisting and bending, ensuring network transmission stably and fast.

OM5 Fiber Optic Patch Cables LC PC To LC PC Duplex OM5 50 / 125 2M LSZH for 100Gig Data Center

OM5 Multimode Fiber - Ready for Next-Generation Wideband Networks

As data rates increase in the data center, OM5 wideband multimode fiber (WBMMF) will allow use of Short Wavelength Division Multiplexing (SWDM) technology to transmit multiple signals (wavelengths) on one fiber, increasing the bandwidth of a single fiber by a factor of at least four.

OM5 Fiber Optic Patch Cables LC PC To LC PC Duplex OM5 50 / 125 2M LSZH for 100Gig Data Center

High Quality Fibre Optic Patch Cable Guarantee

Comprehensive performance testing makes sure the cable work more securely and data transmission more reliable and stable in your network.

OM5 Fiber Optic Patch Cables LC PC To LC PC Duplex OM5 50 / 125 2M LSZH for 100Gig Data Center

OM5 Fiber Optic Patch Cables LC PC To LC PC Duplex OM5 50 / 125 2M LSZH for 100Gig Data Center

Packaging

OM5 Fiber Optic Patch Cables LC PC To LC PC Duplex OM5 50 / 125 2M LSZH for 100Gig Data Center

Certification:

Our products are confirmed by these certifications

Company Information:

OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.

OM5 Fiber Optic Patch Cables LC PC To LC PC Duplex OM5 50 / 125 2M LSZH for 100Gig Data Center

OM5 Fiber Optic Patch Cables LC PC To LC PC Duplex OM5 50 / 125 2M LSZH for 100Gig Data Center

OM5 Fiber Optic Patch Cables LC PC To LC PC Duplex OM5 50 / 125 2M LSZH for 100Gig Data Center

OM5 Fiber Optic Patch Cables LC PC To LC PC Duplex OM5 50 / 125 2M LSZH for 100Gig Data Center

FAQ:

1. Are you the real factory?

Yes,we are the real factory more than 10 years

2. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.

3. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.

4. What is your delivery time?

Within 24 hours for normal kinds of fiber optic cable;

3~5 days for fiber optic patch cords with 10000 connectors.

5. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.

6. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.

7. Payment

For large orders: T/T, L/C

For small orders: T/T,Western Union and Paypal are acceptable.
