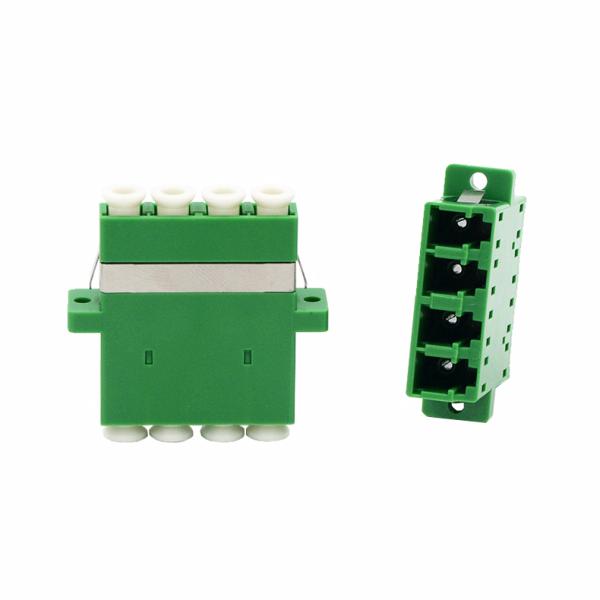

Fiber Optic Adapter LC Quad Single Mode SC Footprint Coupler LC Midcoupler

LC Quad SC footprint type Adapter are developed to couple and mate 8 LC connector plugs. Each LC adapter has receptacles on both ends to connect LC patch cords together. It has stainless steel mounting clips allowing it to be easily snapped into rectangular cut outs for duplex SC mount.

Our range of high-quality LC adapters have high precision alignment sleeves for reliability and improved reconnect ability. For single mode and multimode applications, a ceramic sleeve is supplied. The housing is available in different colors with options for flange or flangeless body, metal clips or inbuilt clips.

OMC Adapters design, material and manufacturing process assure long life and high repeatability of optical performances even for different brand connectors mating.

Features:

TIA/EIA-604 FOCIS-10 compatible; exceeds TIA/EIA-568-B.3 requirements

Complies with IEC 61754-4, Flammability UL94 V-0 standard

Available in Flanged and Flangeless options

Precision connection with sleeve

Low insertion loss, High Return loss

Good interchangeability and reliability

Meet IEC and ROHS standards

High precision of mechanical dimensions Accuracy

Specification

Material

Specifications

Application:

Patch panels, ODF and other optical connections.

Optical networks demarcation and monitoring point

Available for Simplex of SM UPC, SM APC, MM OM1 62.5/125, MM OM2 50/125

Packaging & Shipping

Several piece in one plastic box,
Several boxes then packed in a 54*39*35 carton paper box

Other size carton is available too

Company Information:

OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.

FAQ:

1. Are you the real factory?

Yes,we are the real factory more than 10 years

2. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.

3. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.

4. What is your delivery time?

Within 24 hours for normal kinds of fiber optic cable;

3~5 days for fiber optic patch cords with 10000 connectors.

5. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.

6. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.

7. Payment

For large orders: T/T, L/C

For small orders: T/T,Western Union and Paypal are acceptable
