FTTX Fiber Optic Distribution Cabinet FDH48A IP30 Max 48 Splices + 48 SCAPC Adapters
FTTX Fiber Optic Distribution Cabinet FDH48A IP30 Max 48 Splices + 48 SCAPC Adapters
FTTX Fiber Optic Distribution Cabinet FDH48A IP30 Max 48 Splices + 48 SCAPC Adapters
FTTX Fiber Optic Distribution Cabinet FDH48A IP30 Max 48 Splices + 48 SCAPC Adapters
FTTX Fiber Optic Distribution Cabinet FDH48A IP30 Max 48 Splices + 48 SCAPC Adapters
FTTX Fiber Optic Distribution Cabinet FDH48A IP30 Max 48 Splices + 48 SCAPC Adapters
Specifications
Brand Name :
OMC or OEM
Model Number :
Fiber Distribution Hub –FDH48A
Certification :
ROHS and ISO
Place of Origin :
China
MOQ :
20
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000/pcs/month
Delivery Time :
5 - 8 work days
Packaging Details :
Inner PE Bag and carton
Width :
450mm
Height :
180mm
Depth :
150mm
Net Weight :
3.2kg
No. of Splice Tray :
4
Protection Grade :
IP30
Maximum Capacity :
48 Splices + 48 SCAPC Adapters
No. of Splitters :
Maximum 4PCS 1:16
Description

Fiber Distribution Hub for FTTX

Fiber Distribution Hub –FDH48A

Products Profit:

Fiber Distribution Hub are designed to provide a high density wall-mountable solution for next generation fiber networks, it is used as terminal equipment of fiber optical cable for fiber patching, Splicing, Fiber splitting and management.

OMC’s FDH offers superior optical performance, high stability and high reliability, meet various application requirements in FTTX construction, ODN construction, LAN, Metro network and CATV.

Features:

Wall-mountable installation design

Integrated with splice cassette and cable management elements

Manages large quantities of fiber with high density design

Easy to maintain and extend fibers in the future

Fiber bend radius control more than 40mm

Maximum capacity up to 32 ports

Efficient space for cable management and storage

Dust and splash-proof level reaches IP30

ABS cassette type PLC Splitter can be placed for distribution

Products Specification:

Width 450mm
Height 180mm
Depth 150mm
Net Weight 3.2kg
No. of Splice Tray 4
Protection Grade IP30
Maximum Capacity 48 Splices + 48 SCAPC Adapters
No. of Splitters Maximum 4PCS 1:16
Color RAL7035
Working Temperature -25°C ~55°C (5 to 95% Relative Humidity)

Advantage:

Separate compartments for splicing and patching. Each compartment has a door closed by a triangle key system

Possible scalability depending on the number of operators addressing the building

Optical cable access left with lashing system

Standardized dimensions, according to TELEFONICA recommendations

Application:

FTTX Project

ODN system

Data center

PON system

Products Details:

FTTX Fiber Optic Distribution Cabinet FDH48A IP30 Max 48 Splices + 48 SCAPC Adapters

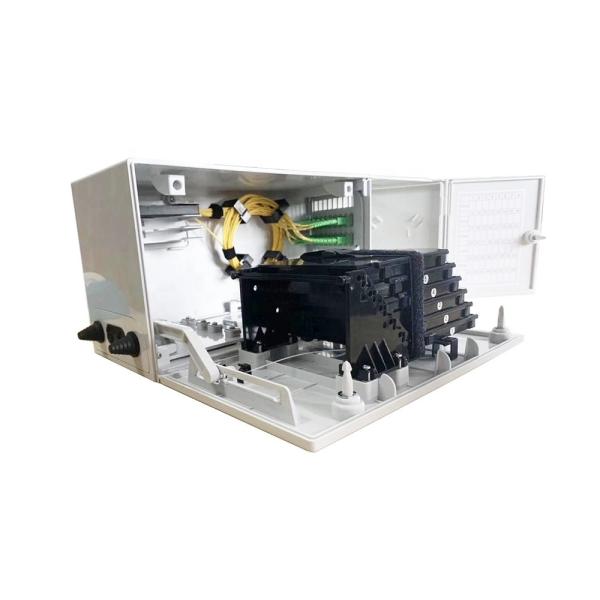

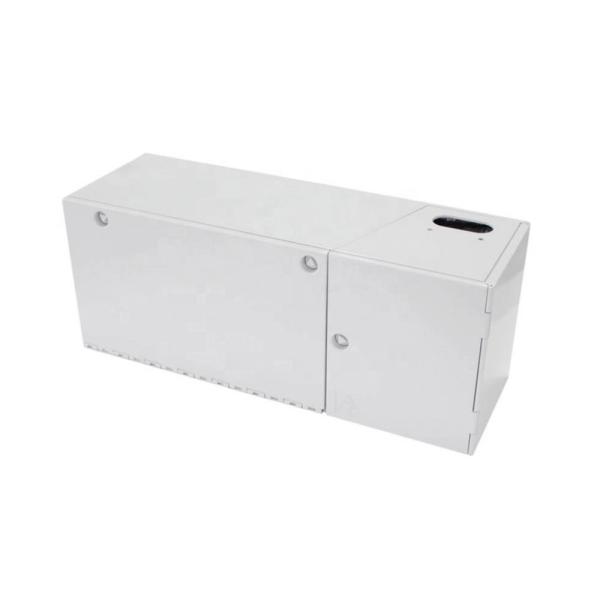

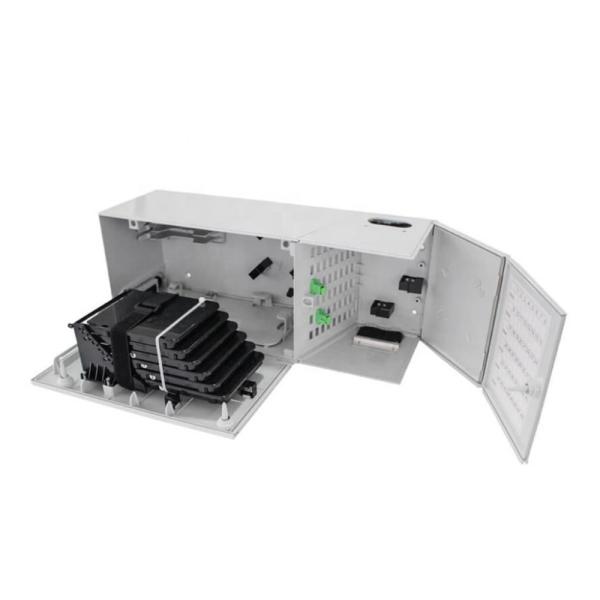

Product detail picture:

FTTX Fiber Optic Distribution Cabinet FDH48A IP30 Max 48 Splices + 48 SCAPC Adapters
