Duplex outdoor CPRI fiber patch cable for FTTA project Insertion Loss
Duplex outdoor CPRI fiber patch cable for FTTA project Insertion Loss
Duplex outdoor CPRI fiber patch cable for FTTA project Insertion Loss
Duplex outdoor CPRI fiber patch cable for FTTA project Insertion Loss
Duplex outdoor CPRI fiber patch cable for FTTA project Insertion Loss
Duplex outdoor CPRI fiber patch cable for FTTA project Insertion Loss
Specifications
Brand Name :
OMC or OEM
Model Number :
Duplex outdoor CPRI fiber patch cable for FTTA project
Certification :
ROHS and ISO
Place of Origin :
China
MOQ :
20
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000/pcs/month
Delivery Time :
5 - 8 work days
Packaging Details :
Inner PE Bag and carton
Fiber Count :
2
Cable Dimension mm :
7.0
Cable Jacket Material :
Dca level LSZH
Connector type :
LC,SC,FC,ST,E2000
Insertion Loss :
<0.3dB
Return Loss :
SM>50dB，APC>60dB，MM>35dB
Repeatability :
<=0.1
Interchangeability :
<=0.2dB
Description

Duplex outdoor CPRI fiber patch cable for FTTA project

Duplex outdoor CPRI fiber patch cable for FTTA project Insertion Loss<0.3dB

CPRI fiber patch cable for the new generation wireless base stations (WCDMA/TD-SCDMA/WiMax/GSM). Such products can be meet the FTTA(fiber to the top of the tower) program requirements for outdoor environment conditions and adverse weather conditions. Especially in the 3G, 4G, and WiMax base stations and fiber-optic distributed zoom technology, CPRI fiber patch cable are rapidly becoming the standard connector interface.

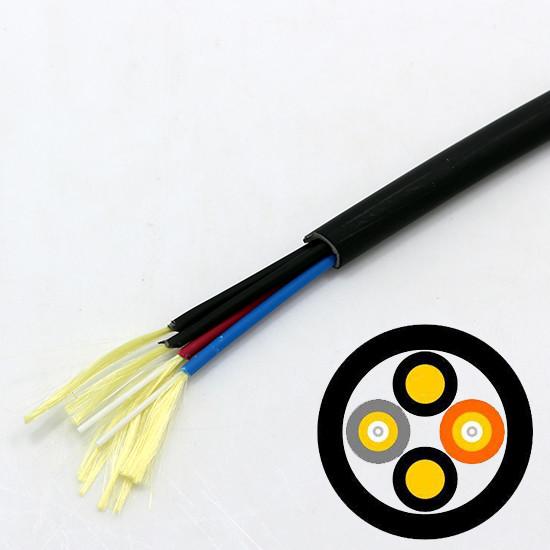

Cable Parameters-

Duplex outdoor CPRI fiber patch cable for FTTA project Insertion Loss<0.3dB

Fiber Count

Cable Dimension

mm

Cable Jacket Material

 Tensile (N)

Crush

(N/100mm)

Min. Bend Radius

(mm)

Range of Temperature
Long Term Short Term Long Term Short Term Dynamic Static
2 7.0

Dca level LSZH

black

 200 400 300 1000 20D 10D -20-+70

Note:

1. All the values in the table, which are for reference only, are subject to change without notice;

2. The cable dimension and weight are subject to the simplex cable of 2.0/1.6 outer diameter;

3. D is outer diameter of the round cable;

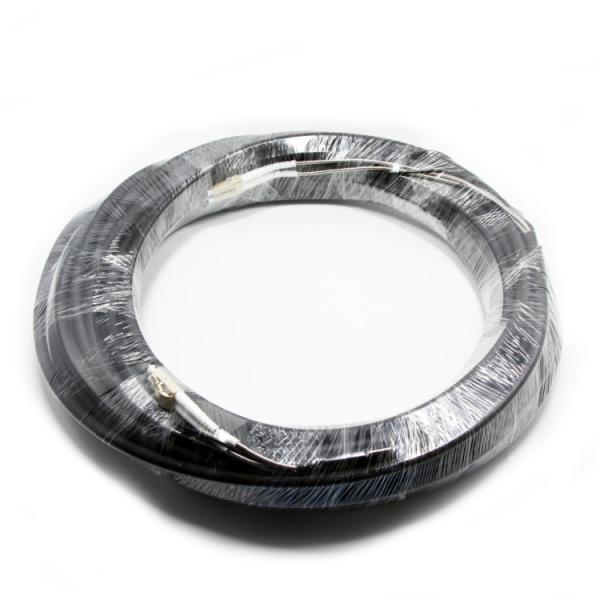

Products drawing

Duplex outdoor CPRI fiber patch cable for FTTA project Insertion Loss<0.3dB

Features

· Open bulkhead for easy access to SFP

· Positive mechanical feedback to operator when fully mated

· One-hand mating

· Plug has tolerance free design, fully free floating on Z-axis

· No Cable buckling during or after installation

· Cost effective metal die cast bulkhead

· Field installable version available

· Water proof, dust proof and corrosion resistant

· Good mechanical and environmental characteristics;

· Flame retardant characteristics meet the requirements of relevant standards;

· The mechanical characteristics of jacket meet the requirements of relevant standards;

· Soft, flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data transmission;

· Meet various requirements of market and clients

· Bulkhead cutout allows for removal of transceiver through the bulkhead (no need to open PRH for transceiver replacement)

· Robust bayonet locking for easy, fast, and secure mating

Specification

Specification

ITEM

 PARAMETER
Connector type LC,SC,FC,ST,E2000
Insertion Loss <0.3dB
Return Loss SM>50dB,APC>60dB,MM>35dB
Repeatability <=0.1
Interchangeability <=0.2dB
Durability <=0.2dB
Fiber Length 1m, 2m….. any length optional.
Length and tolerance 10cm
Operating Temperature -20C ~ +85C
Storage Temperature -20C ~ +85C

Application

· 3G,4G,5G base station cabling

· Aerospace & Defence

· Equipment diagnosis

· FTTA ,FTTP, FTTX,WIMAX

· BBU, RRU, RRH, LTE
