MPO LC Standard Harness Cable Assembly 12 Cores MPO Female To 6 LC Duplex
MPO LC Standard Harness Cable Assembly 12 Cores MPO Female To 6 LC Duplex
MPO LC Standard Harness Cable Assembly 12 Cores MPO Female To 6 LC Duplex
MPO LC Standard Harness Cable Assembly 12 Cores MPO Female To 6 LC Duplex
MPO LC Standard Harness Cable Assembly 12 Cores MPO Female To 6 LC Duplex
MPO LC Standard Harness Cable Assembly 12 Cores MPO Female To 6 LC Duplex
Specifications
Brand Name :
OMC or OEM
Model Number :
12F MPO-LC Standard harness Cables assemblies
Certification :
ROHS and ISO
Place of Origin :
China
MOQ :
20
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000/pcs/month
Delivery Time :
5 - 8 work days
Packaging Details :
Inner PE Bag and carton
Products :
12F MPO-LC Standard harness Cables assemblies
Insertion loss :
≤0.3dB Mean (Standard)
Return loss :
APC≥60dB; UPC≥50dB
Connector :
MPO Female Connectors;LC
Fiber Channel :
12 Fibers
Tensile strength :
>70N
Description

12 cores MPO Female to 6 LC Duplex( 6xLC uniboot;12 LC Simplex) Standard harness Cables assemblies.

MPO- LC/SC/FC/ST Standard harness Cables are terminated with MPO and LC/SC/FC/ST connector on both ends. The 12pcs(6pcs for LC uniboot;12 LC Simplex) fanout cables are optimized for 40G QSFP+ PLR4 to 10G SFP+ LR optics direct connection and high-density data center applications. have same length . It's specifically designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.

12F MPO- LC/SC/FC/ST Standard harness Cables designed for 40G LR4 PSM, 40GBASE-SR4, 40G QSFP+ PLR4 and high-density data center. It is optimized for 10/40/100G high-density data center applications.

All of OMC’s MPO Connectors are from Senko/Nissin/Sumitomo. MPO Patch cable/trunk cable is a kind of high density cable assemblies which is generally use in three areas.

1, The Data Center application with high dense degree environment

2, The optical fiber to the building

3, The internal connector application in fiber equipment.

MPO Connector’s Details:

Connector Fiber Channel
MPO LC Standard Harness Cable Assembly 12 Cores MPO Female To 6 LC Duplex MPO LC Standard Harness Cable Assembly 12 Cores MPO Female To 6 LC Duplex
MPO Female Connectors 12 Fibers
Note: Female connector need to connect with male connector type.

Connector Reference Housing Details
MPO Single Mode IEC 61754-7

SM APC: Green connectors+black boot (Standard Loss MPO)

SM APC: Yellow connectors+black boot (Super low loss MPO)
MPO Multimode IEC 61754-7

OM1&OM2 PC: Beige connectors+black boot (Standard Loss MPO)

OM3&OM4 PC: Aqua connectors+black boot (Standard&Super low loss MPO)

OM3&OM4 PC: Heather Violet connectors+black boot (Standard loss MPO)
  • Meets IEC Standard IEC-61754-7; IEC61755, Telcordia GR-1435-CORE, JIS C5982; TIA-604-5(FOCIS5) compliant
  • Structured cabling per TIA-568-C
  • 10G Fiber Channel Compliant
  • 40G and 100G IEEE 802.3

Other connectors’ Industrial Standard:

SC: TIA/EIA, FOCIS3, GR-326.NTT-SC IEC61754-4 and JIS C5973.

LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.

FC: EIA /TIA-604-04, FOCIS4, NTT-FC, GR-326. IEC61754-13 and JIS C5973

ST: TIA/EIA, FOCIS2, GR-326. IEC61754-2 and JIS C5973 Etc.

E2000: IEC61754-15

Available for

G657A1 MPO-LC, MPO-SC,MPO-FC,MPO-SC,MPO-ST,MPO-E2000

G657A2/B2 MPO-LC, MPO-SC,MPO-FC,MPO-SC,MPO-ST,MPO-E2000

G657B3 MPO-LC, MPO-SC,MPO-FC,MPO-SC,MPO-ST,MPO-E2000

OM1 62.5/125 MPO-LC, MPO-SC,MPO-FC,MPO-SC,MPO-ST,MPO-E2000

OM2 50/125 MPO-LC, MPO-SC,MPO-FC,MPO-SC,MPO-ST,MPO-E2000

OM3 50/125 MPO-LC, MPO-SC,MPO-FC,MPO-SC,MPO-ST,MPO-E2000

OM4 50/125 MPO-LC, MPO-SC,MPO-FC,MPO-SC,MPO-ST,MPO-E2000

OM5 50/125 MPO-LC, MPO-SC,MPO-FC,MPO-SC,MPO-ST,MPO-E2000

12 cores MPO Female to 6 LC Duplex( 6xLC uniboot;12 LC Simplex) Standard harness Cables assemblies.

’s Specification:

Spec items. Single mode (APC 8-degree polished) Multimode (PC Flat polish)

Insertion loss (MPO)

(IEC 61300-3-34)

Standard loss:≤0.75dB(max), ≤0.35dB(Typical)

Super Low loss:≤0.35dB(max), ≤0.20dB(Typical)

Standard loss:≤0.6dB(max), ≤0.35(Typical)

Super Low loss:≤0.35dB(max) , ≤0.20dB(Typical)

Insertion loss (LC/SC/FC/ST)

(IEC 61300-3-6)

 ≤0.3dB ≤0.3dB
Return loss(MPO) ≥60dB(8degree polishing) ≥25dB
Return loss(LC/SC/FC/ST) APC≥60dB; UPC≥50dB ≥35dB
Durability <0.3dBtypical change, 200 matings
Interchangeability ≤0.2dB
Tensile strength >70N
Operating Temperature -40 to + 85°C

MPO End-Face 3D Interference Index

Item (IEC-61300-3-30) Minimum Maximum
Radius of curvature (mm) ROC-X(ABS) 2000
ROC-Y(ABS) 50mm
Angle Angle-X -0.2° -0.2°
Angle-Y APC 7.85° 8.15°
PC -0.2° -0.2°
Fiber height (nm) 1000nm 3500nm
Max.DH.All Fiber: -300nm 300nm
DH.Adj: -300nm 300nm
DH.Ave Fiber: -300nm 300nm
Core Dip: SM N/A N/A
MM -200nm 300nm

LC/SC/FC/ST End-Face Geometry 3D Interference Index

Items Connector PC End-face APC End-face
Radius of Curvature SC/FC/ST 10~25 mm 5~12 mm
LC/MU 7~25 mm 5~15 mm
Apex Offset ≤50 um
Fiber Spherical Height +/- 100 nm
Angular Offset ------ 8°± 0.5°

LC/SC/FC/ST End-face Quality (SM)

Zone Range (μm) Scratches Defects Reference
A: Core 0 to 25 None None IEC 61300-3-35:2015
B: Cladding 25 to 115 None None
C: Adhesive 115 to 135 None None
D: Contact 135 to 250 None None
E: Rest of ferrule None None

LC/SC/FC/ST End-face Quality (MM)

Zone Range (μm) Scratches Defects Reference
A: Core 0 to 65 None None IEC 61300-3-35:2015
B: Cladding 65 to 115 None None
C: Adhesive 115 to 135 None None
D: Contact 135 to 250 None None
E: Rest of ferrule None None

Features:

  • 100% pre-terminated and tested in factory to ensure transfer performance.
  • Low insertion loss, high return loss
  • MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies
  • Economical solution for mass-termination of fiber
  • Designed for low loss and standard loss SM and MM applications
  • Ruggedized round cable, oval cable and bare ribbon options available
  • Color coded housings available to differentiate fiber type, polish type and/or connector grade
  • Good in repeatability and exchangeability

The merits of MTP/MPO Patch cable/trunk cable generally include:

High quality—MTP/MPO Patch cable/trunk cables are factory pre-terminated, tested and packaged along with the test reports. These reports serve as long-term documentation and quality control.

Decreasing cable volume—MTP/MPO Patch cable/trunk cables have very small diameters, which decrease the cable volume and improve the air-conditioning conditions in data centers.

Time saving—With the special plug and play design, MTP/MPO Patch cable/trunk cables can be incorporated and immediately plugged in. It greatly helps reduce the installation time.

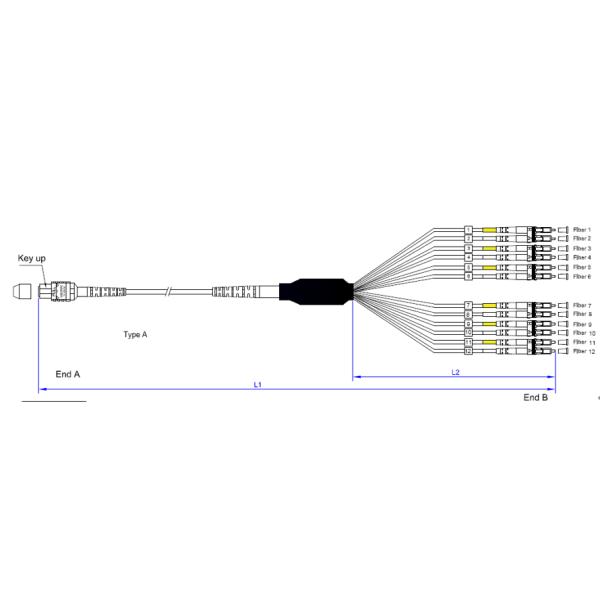

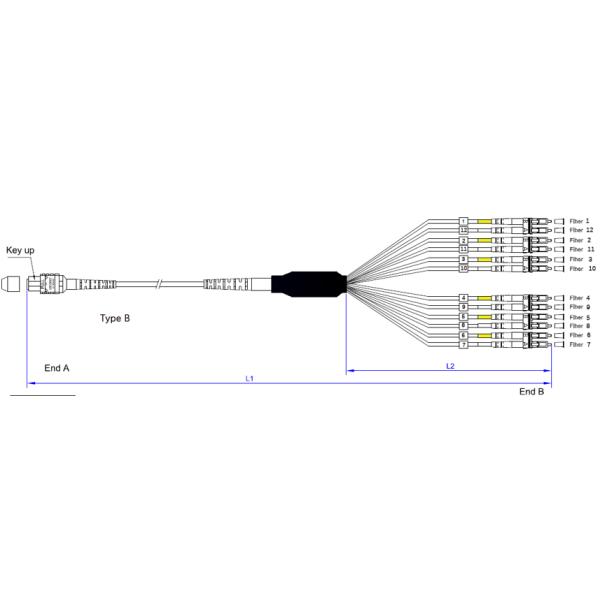

Cable Drawing

MPO LC Standard Harness Cable Assembly 12 Cores MPO Female To 6 LC Duplex

MPO LC Standard Harness Cable Assembly 12 Cores MPO Female To 6 LC Duplex

Length Tolerance

Overall Length(L)(m) length of tolerance(cm)
0<L<1 +5/-0
1<L<10 +10/-0
10<L<40 +15/-0
40<L +0.5% x L/-0
