Steel Tape Layer Loose Tube GYTS Outdoor Fiber Cable Single Mode G652 Multi Mode
Steel Tape Layer Loose Tube GYTS Outdoor Fiber Cable Single Mode G652 Multi Mode
Steel Tape Layer Loose Tube GYTS Outdoor Fiber Cable Single Mode G652 Multi Mode
Steel Tape Layer Loose Tube GYTS Outdoor Fiber Cable Single Mode G652 Multi Mode
Steel Tape Layer Loose Tube GYTS Outdoor Fiber Cable Single Mode G652 Multi Mode
Steel Tape Layer Loose Tube GYTS Outdoor Fiber Cable Single Mode G652 Multi Mode
Steel Tape Layer Loose Tube GYTS Outdoor Fiber Cable Single Mode G652 Multi Mode
Steel Tape Layer Loose Tube GYTS Outdoor Fiber Cable Single Mode G652 Multi Mode
Specifications
Brand Name :
OMC or OEM
Model Number :
GYTS
Certification :
ROHS and ISO
Place of Origin :
China
MOQ :
1KM
Price :
Negotiable
Payment Terms :
L/C, , D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000000 meter per month
Delivery Time :
7-9 DAYS
Packaging Details :
Drum
Product Name :
GYTS Outdoor Cable Steel Tape Layer Loose
Fiber brand :
YOFC, Corning, Fiberhome Fujikura, OFS etc
Sheath color :
Black ,can be required
The cable Size :
shall be in accordance with the table, can be required
Fibers Count :
24-144F
Other requirement :
can be negotiated
Description
GYTS Outdoor Cable Steel Tape Layer Loose Tube Single Mode G652,G655,G657, Multi Mode 50/125,62.5/125,OM3,OM4

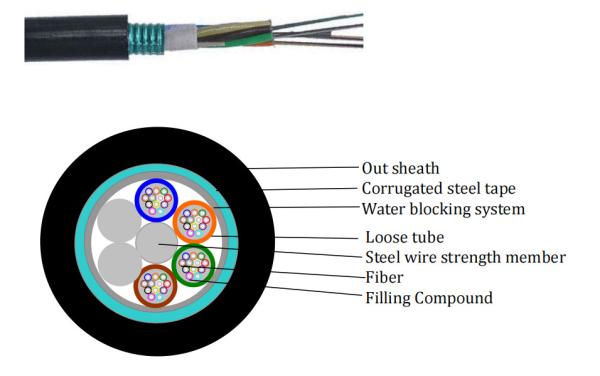

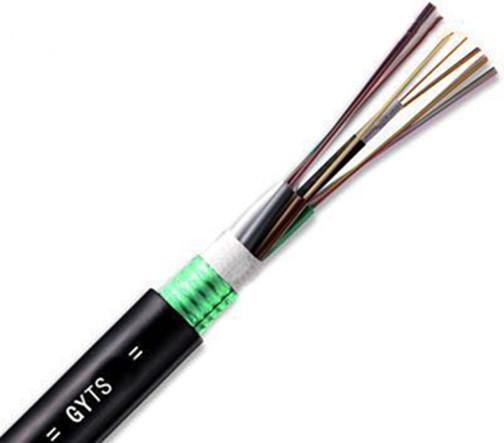

The fibers, single mode or muti mode, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The PSP is longitudinally applied over the cable core, which is filled with the filling compound to protect it from water ingress. The cable is completed with a PE sheath.
Steel Tape Layer Loose Tube GYTS Outdoor Fiber Cable Single Mode G652 Multi Mode
Steel Tape Layer Loose Tube GYTS Outdoor Fiber Cable Single Mode G652 Multi Mode
Specification:
Steel Tape Layer Loose Tube GYTS Outdoor Fiber Cable Single Mode G652 Multi Mode
Cable marking and cable reel marking
Cable marking:
The cable sheath shall be marked with white characters at intervals of one meter
with following information:
1. Purchaser’s name
2. Cable type
3. Fiber type and counts
4. Year of manufacture
5. Length marking
Notice: cable mark is available if requested by customer.
Cable reel:
Details given below shall be marked with a weather materials on both outer sides
of the reel flange :
1. Cable type and fiber counts
2. Length of cable in meters
3. Year of manufacture
Notice: shipping mark is available if requested by customer.
Packing Informations:
1. Packing material: Wooden drum
2. Packing length: standard length of cable shall be 2 km. Other cable length is
also available if required by customer
Our certificates :
1) ISO9002
2) SGS, ROHS
3) ULE329066
4) REACH
Company Information:

OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.

Steel Tape Layer Loose Tube GYTS Outdoor Fiber Cable Single Mode G652 Multi Mode

Steel Tape Layer Loose Tube GYTS Outdoor Fiber Cable Single Mode G652 Multi Mode

Steel Tape Layer Loose Tube GYTS Outdoor Fiber Cable Single Mode G652 Multi Mode

Steel Tape Layer Loose Tube GYTS Outdoor Fiber Cable Single Mode G652 Multi Mode

FAQ:

1. Are you the real factory?

Yes,we are the real factory more than 10 years

2. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.

3. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.

4. What is your delivery time?

Within 24 hours for normal kinds of fiber optic cable;

3~5 days for fiber optic patch cords with 10000 connectors.

5. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.

6. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.

7. Payment

For large orders: T/T, L/C

For small orders: T/T,Western Union and Paypal are acceptable
