Specifications
Brand Name :
OMC or OEM
Model Number :
SC APC Fiber Fusion-on Connector
Certification :
RoHS,SGS,ISO
Place of Origin :
China
MOQ :
100
Price :
US $ 0.4-0.45
Payment Terms :
L/C, T/T,Paypal
Supply Ability :
100000 Piece/Pieces per Month
Delivery Time :
3-5 working days
Packaging Details :
54*40*35cm
Product name :
SC APC Fiber Fusion-on Connector
Insertion Loss :
≤0.2dB
Return loss :
APC≥60dB
Repeatability :
<0.1dB(1000times
Interchangeability :
<0.2dB
Tensile strength :
60N(6KGS)
Working temperature :
-40℃-+80℃
Cable Diameter :
2.0/3.0mm or 3.0x2 drop cable
Description

SC FIBER FUSION-ON CONNECTOR

Fiber hot melt type Fast connector is a fusion splice on connector for 2mm and 3mm Round cable and 2.0*3.0 Bow type FTTH drop cable. Melting type fusion splice on connector uses mature melting technology, and transfers the traditional melting point from the Fiber Splice box or melting modular part to the inside of the connector.

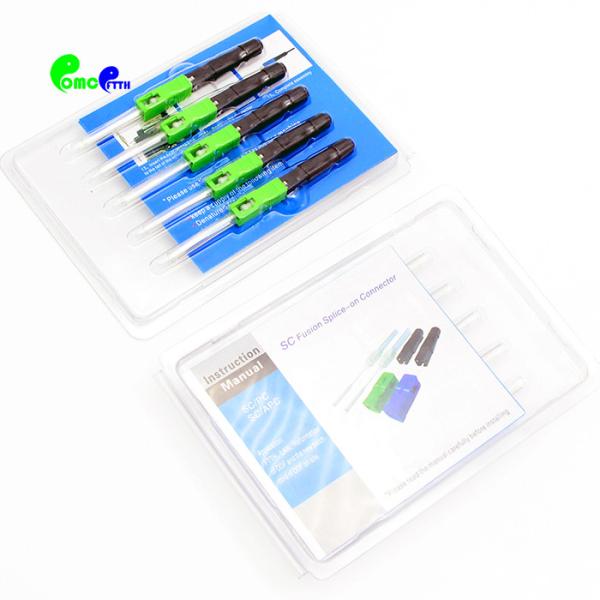

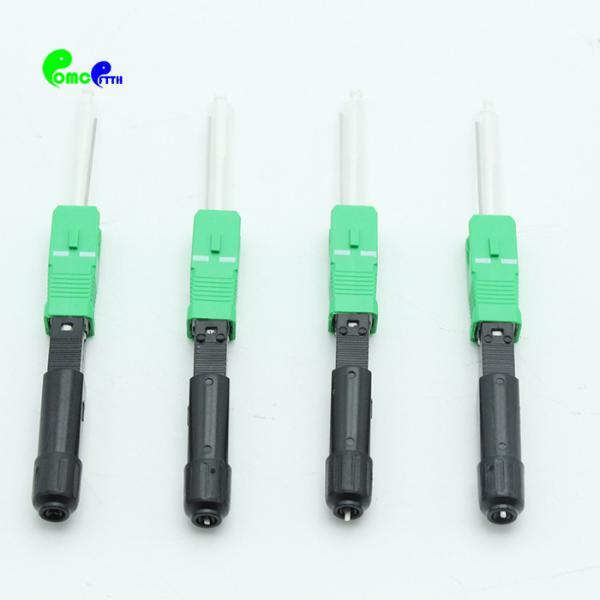

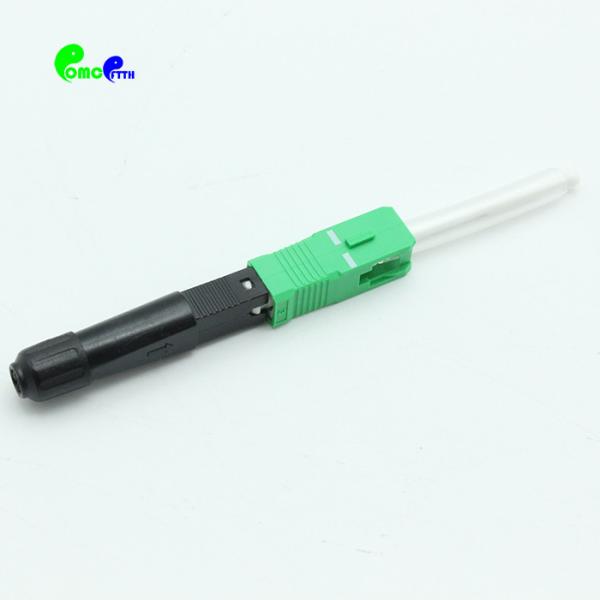

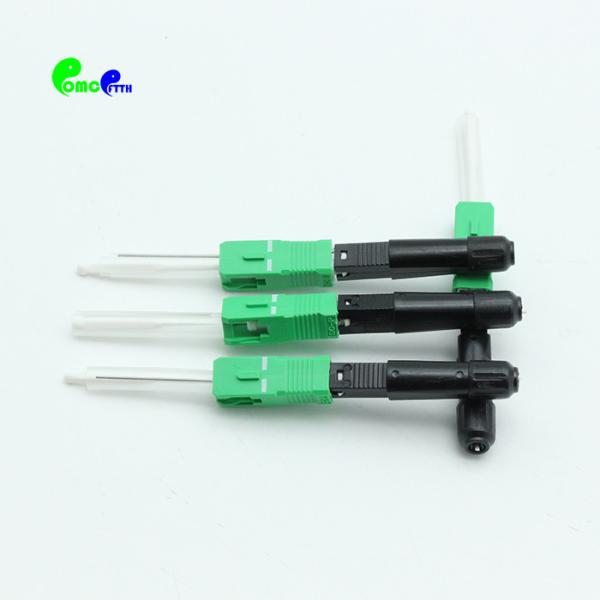

SC APC Fusion Splice Connectors FTTH Field Assembly Connector

Specification

Item Description
Cable Diameter 2.0/3.0mm or 3.0x2 drop cable
Insertion loss PC≤0.3dB,UPC≤0.2dB,APC≤0.2dB
Return los PC≥40dB,UPC≥50dB,APC≥60dB
Repeatability <0.1dB(1000times)
Interchangeability <0.2dB
Tensile strength 60N(6KGS)
Working temperature -40℃-+80℃

Features

1. Low insertion loss and back reflection loss

2. Ferrule end surface predoomed

3. Precision anti-rotation key and corrosion resistant body UL-rated plastic housing

4. Boots in a variety of colors

5. Telcordia style boots

6. Free-floating ceramic ferrule

Applications

1. CATV

2. Active device termination Telecommunication networks Metro

3. Local Area Networks (LANs) Data processing networks Test equipment

4. Premise installation

5. Wide Area Networks (WANs)

SC APC Fusion Splice Connectors FTTH Field Assembly Connector

Our Services

1, Free samples--- we can supply free products for testing .

2, Brand---OEM service acceptable

3, Payment terms---Nice payment. Like T/T, Western Union, Paypal etc.

4, Quality Level---High quality as per your requirements.

5, Competitive price---The manufacturer having our own factory has the advantage.

6, Delivery Time--- Usually 3 days. Less than a week.

8, Optical Network Project Consultant---Professional experts help you.

9, New Products development for customer---We can produce it for you with pattern.

10, logistic solution--- Cost-effective ways can be chosen for you.

Company Information

OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network’s needs.

Quality is life of OMC. Our firm commitment is to deliver world class product to our customers and forever exceed their expectations. We also offer Solid after sales support i.e. 3 years product warranty under no conditions

OMC treat our customers, suppliers, and employees as our respectable partners. We very happy to share our success with them. Offering best products to our customers, Long-term/Loyal partnership to our supplier and good salary/welfare to our employees. OMC also spare no effort to care our society and environment. With a grateful heart, OMC will go firmly to the bright way that we are longing for.

We hereby gather in OMC, with plentiful passion and professional techniques to service customers all over the world
