FHO5000 FTTH Fiber Optic Tools OTDR Manual Optical Time Domain Reflectometer

High quality of FHO5000 OTDR Manual Optical Time Domain Reflectometer FTTH with good price

FHO5000 series Optical Time Domain Reflectometer (OTDR) is an intelligent meter of a new generation for the detection of fiber communications systems. With the popularization of optical network construction in cities and countryside, the measurement of optical network becomes short and disperse; FHO5000 is specially designed for that kind of application. It’s economic, having outstanding performance.

FHO5000 is manufactured with patience and carefulness, following the national standards to combine the rich experience and modern technology, subject to stringent mechanical, electronic and optical testing and quality assurance; in the other way, the new design makes FHO5000 more smart and compact and multi-purpose.

Whether you want to detect link layer in the construction and installation of optical network or proceed efficient maintenance and trouble shooting, FHO5000 can be your best assistant.

Features

Integrated design, smart and rugged

IP65 protection level, outdoor enhanced

7-inch anti-reflection LCD screen

PON online test module (1625nm) is optional

MMF test module (850/1300nm) is optional

Support multi-language display and input

Application

FTTX test with PON networks

CATV network testing

Access network testing

LAN network testing

Metro network testing

Lab and Factory testing

Live fiber troubleshooting

Product Details

Ready for all kinds of environment.

FHO5000 series OTDR is specially designed for tough outdoor jobs. IP65 protection level, lightweight, easy operation, low-reflection LCD and more than 12 hours working period make it perfect in field testing. Meanwhile, optional PCB board with water-proof coating helps FHO5000 series OTDR get better protection performance.

What you need is all-in-one!

FHO5000 series OTDR is a highly integrated platform that features with four module slots, with a large 7-inch color screen (with a touchscreen option), a high-capacity Lithium-Ion battery, an optional microscope (through universal serial bus [USB] port), and built-in optical test functions, such as PON test module, visual fault locator (VFL), optional power meter and laser source, making it qualified in the installation, turn-up, and maintenance of FTTx/Access optical networks

Main functions

Multi-mode OTDR

Besides standard single mode (1310/1550nm), FHO5000 series OTDR supports multi-mode (850/1300m) test mode for option to analyze multi-mode fiber network.

VFL (visual fault locator)

The VFL, available as a standard module in FHO5000 series OTDR, offers built-in 650nm visual fault location on a FC/UPC connector.

PON ONLINE TEST

FHO5000 series OTDR uses 1625nm wavelength to scan and analyze the access point and proceed online testing with optical filter, and will not disturb the service.

PM (power meter)

FHO5000 series OTDR comes with optional built-in power meter that let technicians easily verify the presence of a signal.

LS (laser source)

FHO5000 series OTDR comes with optional built-in laser source through OTDR1 Port that let technicians easily verify the total loss of the local network with a power meter.

FM (fiber microscope)

The optional fiber inspection probe facilitates the inspection before the connection. FHO5000 series OTDR offers this capability through a USB port connection, which allows quick and easy inspection of connector end faces for contamination and also enables it capture and store the image.

Humanized Test Interface

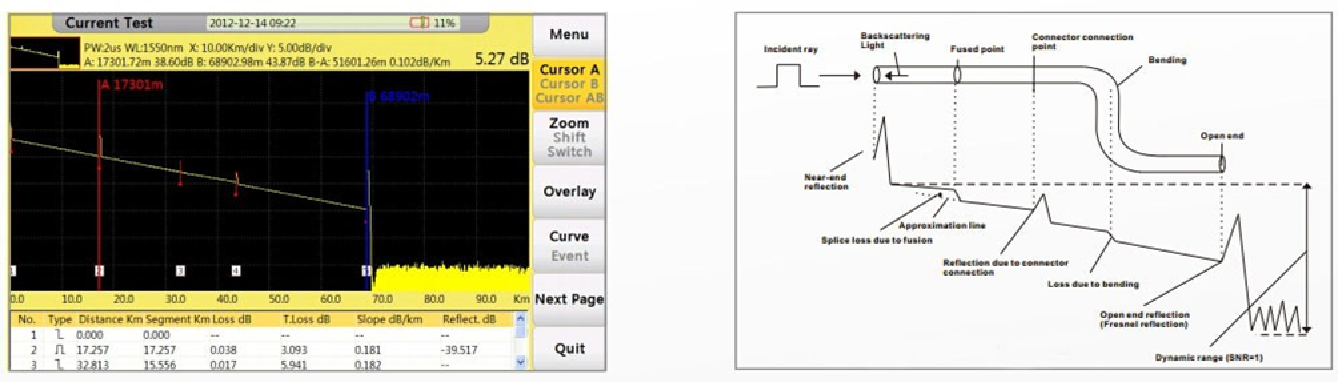

FHO5000 series OTDR could display Splice loss, Connector loss, Fiber attenuation, Reflection of points, Link optical return loss and distance to fiber events etc. With test information in a smart way, user could get detailed information immediately.

Quick fit in short time

Simplified display style and structured menus help effective in reducing the time of study.

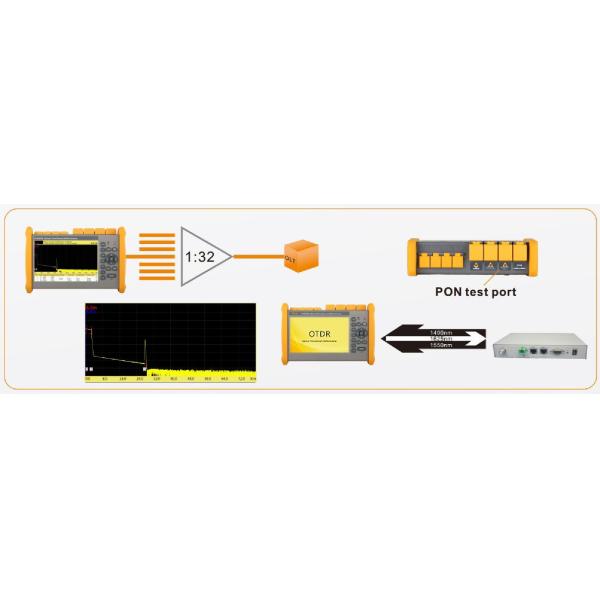

FTTH test within PON networks

FHO5000 series OTDR’s models, like T40F and T43F, are dedicated to the testing of PON network maintenance and troubleshooting without service disruption.

Last mile master

FHO5000 series OTDR could easily test through 1*32 PLC splitter in PON test (Model: FHO5000-T43F)

Fiber Microscope

Microscope is optional for FHO5000 series OTDR. 400X amplification and variety of accessories ensure perfect terminal condition before test.

The essential first step

Taking time to properly inspect connector end faces can prevent a slew of problems down the lines, saving you time, money and headaches.

Result transfer

Check test results on PC or PDA through USB; 4GB large internal memory space could store more than 40,000 groups of results.

Link in line

· Download reference traces and settings from database

· Send measurement results via email

· Ask for remote help

Data Manager

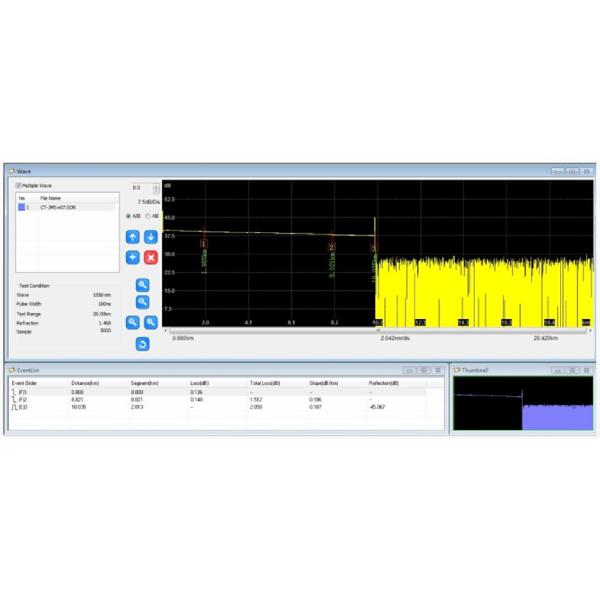

Use Data Manager to elaborate and print out result files on upper computer within a few steps.

High Compatibility

Support

- Windows Vista (32/64 bit system)

- Windows 7 (32/64 bit system)

- Windows 8 (32/64 bit system)

- Microsoft Office Excel 2007

- Microsoft Office Excel 2010

- Microsoft Office Excel 2013

Specification -General

Technical parameter

Test parameter
