Specifications
Brand Name :
OEM or OMC
Model Number :
LC UPC Attenuator
Certification :
RoHS,SGS,ISO
Place of Origin :
China
MOQ :
10
Price :
Negotiable
Payment Terms :
L/C, T/T,Paypal
Supply Ability :
100000 Piece/Pieces per Month
Delivery Time :
5-8 working days
Packaging Details :
54*40*35cm
Product name :
LC UPC Attenuator
Operating Bandwidth :
1310/1550nm
Return Loss :
UPC≥50db, APC≥60db
Attenuation Tolerance :
1~5db±0.5db &6~25db±10%
Vibration :
10~55hz(2hr)
Max Optical Input Power :
200mw
Description

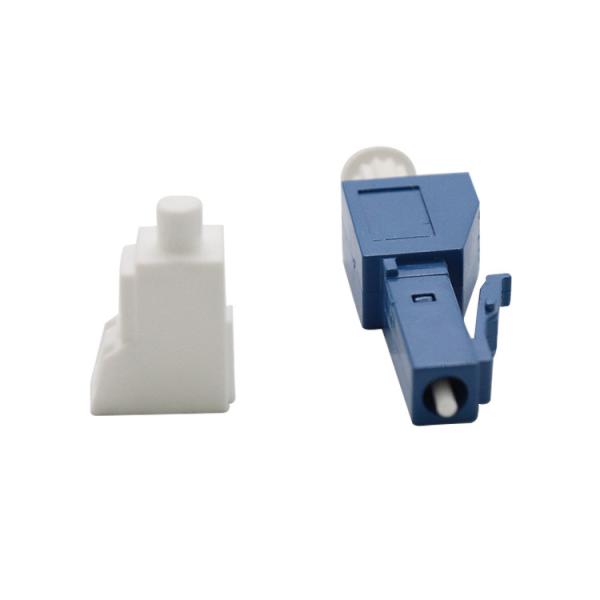

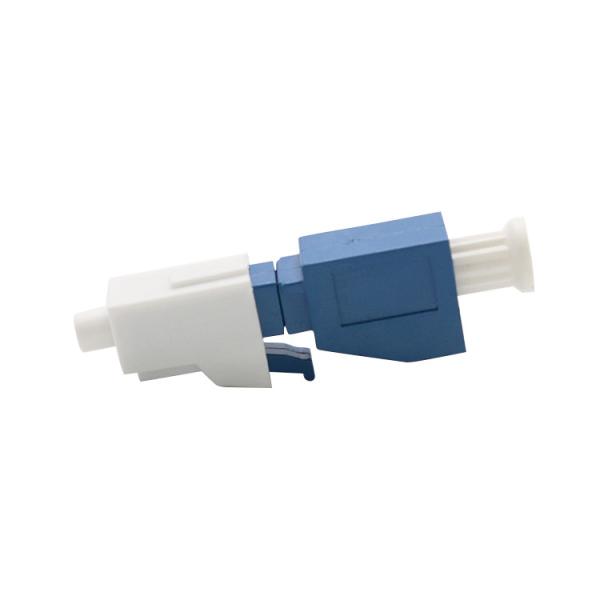

High Quality Fixed Fiber Optical Attenuator Male to Female LC UPC Attenuator

Optical attenuator is a passive device used to reduce the power level of an optical signal. It is generally used in single-mode long-haul applications to prevent optical overload at the receiver. Optical attenuator is widely used in CWDM&DWDM, CATV systems, data center networks, test equipment and other high-power applications. Though its applications range widely, fixed attenuators are most commonly used for test and measurement, optical sensors, and telecommunications applications.

Female to male Fixed attenuators from us offer defined control of optical signals in both integrated and add-on products.

Depending on the project or need, fixed attenuators can limit (attenuate) the amount of light passing through to the exact levels your project or application requirement. These precise attenuation levels provide for highly accurate performance.

OMC’s LC Female to male fixed attenuator are available for SM UPC(1-25dB), SM APC(1-25dB) and MM PC (1-25dB)

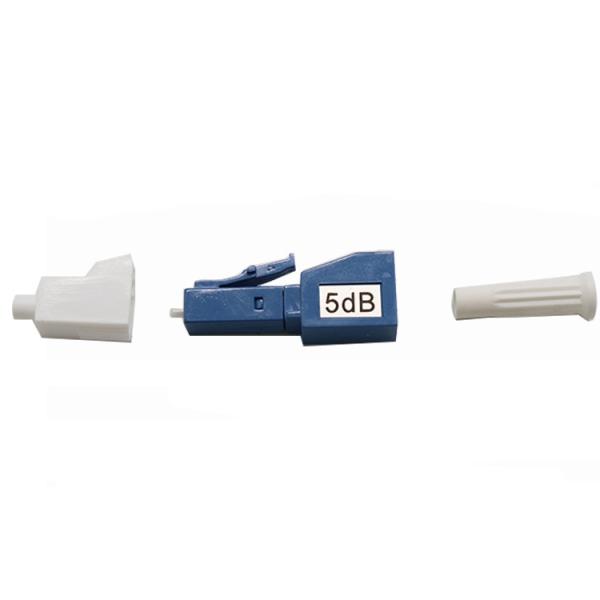

5dB Fixed Fiber Optical Attenuator Male To Female LC UPC

Attenuator Specifications

Items Parameters
Operating Bandwidth: SM MM
1310/1550nm(1200nm-1600nm) 850nm
Return Loss UPC≥50db, APC≥60db PC≥35db
Attenuation Tolerance 1~5db±0.5db &6~25db±10%
Vibration 10~55hz(2hr)
Max Optical Input Power 200mw
Operating temp - 40°C to +85°C

Applications

DWDM applications

Test & measurement

Optical sensors

Telecommunications applications

5dB Fixed Fiber Optical Attenuator Male To Female LC UPC

Features

Wide Attenuation Range

Low Return Loss

Low PDL

Polarization Insensitive

Various connector type

Highly Reliable

Complies with industry green initiative such as ROHS
