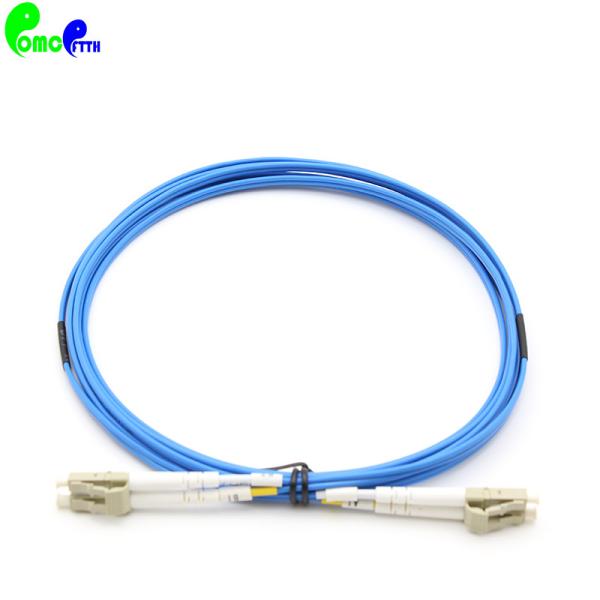

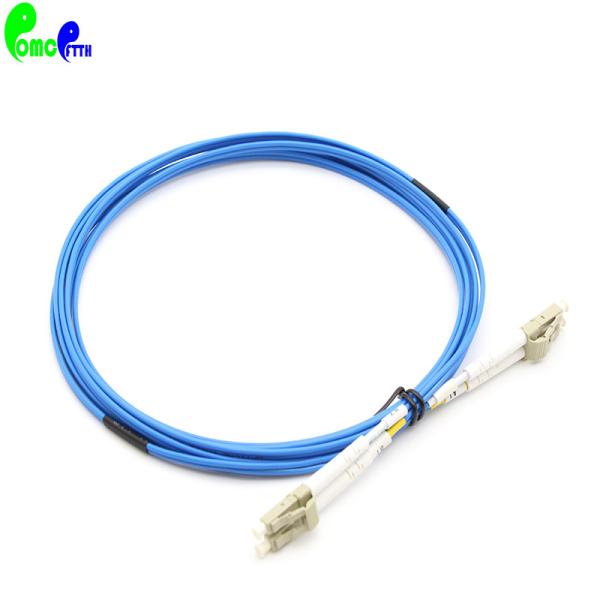

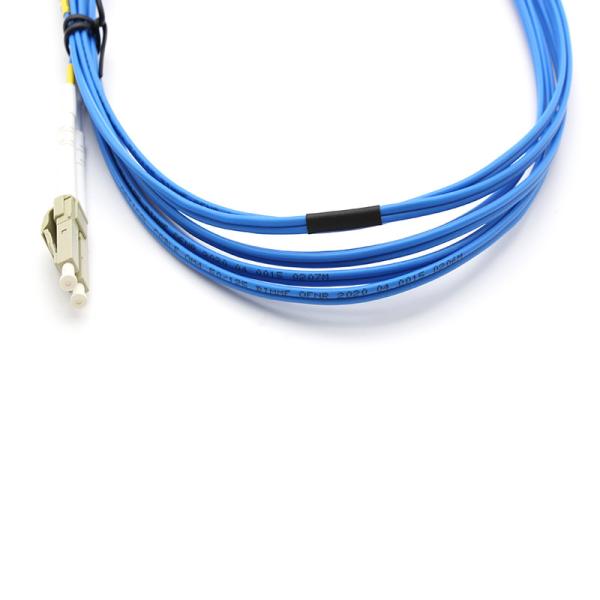

OM2 50 / 125 LC - LC duplex Fiber optic Patch Cable LSZH CPR Certification
OM2 50 / 125 LC - LC duplex Fiber optic Patch Cable LSZH CPR Certification
OM2 50 / 125 LC - LC duplex Fiber optic Patch Cable LSZH CPR Certification
OM2 50 / 125 LC - LC duplex Fiber optic Patch Cable LSZH CPR Certification
OM2 50 / 125 LC - LC duplex Fiber optic Patch Cable LSZH CPR Certification
OM2 50 / 125 LC - LC duplex Fiber optic Patch Cable LSZH CPR Certification
Specifications
Brand Name :
OMC or OEM
Model Number :
LC Duplex
Certification :
ROHS and ISO
Place of Origin :
China
MOQ :
50
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
5 - 8 work days
Packaging Details :
Inner PE Bag and carton
Product Name :
LC-LC Multimode Duplex Patch Cord
Connector :
LC
Polish Type :
UPC
Insertion loss :
≤0.3dB
Return loss :
MM PC ≥ 35dB(min)
Name :
Fiber Patch Cable
Description

OM2 50 / 125 LC - LC duplex Fiber optic Patch Cable LSZH CPR Certification

Patch Cords are used to provide optical connection for fiber optic electronics. The use of the patch cord provides a quick and easy method for routing fiber patches in data centers, head-ends, cellular hubs and central offices. The patch cord can be used in interconnect or cross-connect path connecting the incoming fibers to the electronic equipment and providing patching within the fiber paths. Patch Cords include simplex, duplex and Multi-fibers assemblies.

OMC’s Patch cables are manufactured and tested in compliance with TIA 604 (FOCIS), IEC 61754 and YD/T industry standards. OM1, OM2, OM3, OM4, OM5 or OS2 fiber types to meet the demand of Gigabit Ethernet, 10 Gigabit

Ethernet and high speed Fiber Channel. Every termination through rigorous parameter test to ensure the highest in network performance.

Connector

SC: TIA/EIA, FOCIS3, GR-326.NTT-SC IEC61754-4 and JIS C5973.

LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.

FC: EIA /TIA-604-04, FOCIS4, NTT-FC, GR-326. IEC61754-13 and JIS C5973

ST: TIA/EIA, FOCIS2, GR-326. IEC61754-2 and JIS C5973 Etc.

MU: TIA/EIA-604-3A, GR-326.NTT-MU, JIS and IEC.

MTRJ: TIA/EIA, FOCIS12, GR-326. IEC and JIS C5973.

DIN: IEC61754-3

E2000: IEC61754-15

Optical Specifications

Connector LC Jacket OD(mm)

1.2x2.5,1.6x3.3,1.73.5,1.8x3.7

2.0x4.1,2.44.9,2.6x5.3,2.8x5.7
Fiber Mode 50/125μm Jacket Color

OM1&OM2: Orange; OM3:Aqua;

OM4:Aqua/Violet/ Magenta

Customized
Polish PC,UPC,APC Wavelength

MM:850nm
Cable Type Zip-cord Duplex (Fig 8 Duplex) Jacket Material LSZH/PVC/OFNR/OFNP
Insertion loss ≤0.3dB(IEC Grade C) Insertion loss ≤0.12dB(IEC Grade B)
Return loss

MM PC ≥ 35dB(min)

 Interchangeability &Vibration ≤0.2dB
Operating temperature -40~75°C Storage temperature -45~85°C

OM2 50 / 125 LC - LC duplex Fiber optic Patch Cable LSZH CPR Certification

Geometric Specification (For special request)

Items Connector PC End-face APC End-face
Radius of Curvature LC 7~25 mm 5~15 mm
Apex Offset ≤50 um
Fiber Spherical Height +/- 100 nm
Angular Offset ------ 8°± 0.5°

OM2 50 / 125 LC - LC duplex Fiber optic Patch Cable LSZH CPR Certification

End-face Quality (SM)

Zone Range (μm) Scratches Defects Reference
A: Core 0 to 25 None None IEC 61300-3-35:2015
B: Cladding 25 to 115 None None
C: Adhesive 115 to 135 None None
D: Contact 135 to 250 None None
E: Rest of ferrule None None

End-face Quality (MM)

Zone Range (μm) Scratches Defects Reference
A: Core 0 to 65 None None IEC 61300-3-35:2015
B: Cladding 65 to 115 None None
C: Adhesive 115 to 135 None None
D: Contact 135 to 250 None None
E: Rest of ferrule None None

Length Tolerance

Overall Length(L)(m) length of tolerance(cm)
0<L<1 +5/-0
1<L<10 +10/-0
10<L<40 +15/-0
40<L +0.5% x L/-0

Application

50/125 OM2 multimode fiber optic cable is ideal for connecting 1000BASE-SX, SFP transceivers etc. for gigabit Ethernet and fiber channel applications.

1. Optical fiber communication systems engineering

2. Fiber optic data communication network

3. Connected with trunk cables on one end, equipment port on the other end.

4. Connected with transfer modules on one end, equipment port on the other end.
