Specifications
Brand Name :
OEM or OMC
Model Number :
1x8 LGX Cassette Type PLC Splitter
Certification :
RoHS,SGS,ISO
Place of Origin :
China
MOQ :
10
Price :
Negotiable
Payment Terms :
L/C, T/T,Paypal
Supply Ability :
100000 Piece/Pieces per Month
Delivery Time :
5-8 working days
Packaging Details :
54*40*35cm
Product name :
1x8 LGX Cassette Type PLC Splitter
Insertion Loss :
Max 10.3dB
Return Loss :
Min 50dB
Material :
Hytrel
Fiber Type :
G657A
Warranty :
2 Years
Wavelength :
1310/1550nm
Operating temperature :
-40~80℃
Description

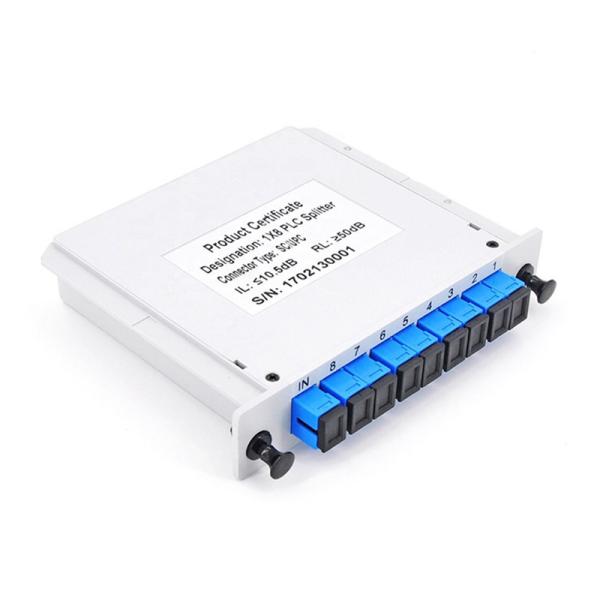

SC/UPC 1 x 8 Fiber Optic PLC Splitter Mini tube Type Splitter Plc Splitter waterproof SC UPC LGX box cassette type

Description

Planar lightwave circuit (PLC) splitter is an optical power distribution device based on the integrated waveguide of quartz plate. With the features of small size, wide range of operating wavelength, stable reliability and good uniformity, It’s widely used in PON,ODN,FTTX point to connect between termination device and central office to achieve the signal splitter.

OMC ‘s Mini Plug-in module Type PLC Splitter family has 1x2, 1x4, 1x8, 1x16, 1x32 PLC splitter, with specifications that are tailored for different applications and markets. Wide bandwidth, compact size. All products meets, ROHS, GR-1209-CORE-2001 and GR-1221-CORE-1999.

SC/UPC 1 x 8 Fiber Optic PLC Splitter Mini tube Type Splitter Plc Splitter waterproof SC UPC LGX box cassette type

Specification

Parameter Unit Specification (P Grade)
Operation Wavelength nm 1260~1650
Channel Number   1X2 1X4 1X8 1X16 1X32 1X64
Insertion Loss with Connector (Max) dB 4.1/4.4 7.4/7.9 10.5/11.0 13.8/14.1 17.1/17.4 20.4/21.0
Insertion Loss without Connector (Max) dB 3.8/4.1 7.1/7.6 10.2/10.7 13.5/13.8 16.8/17.1 20.1/20.7
Uniformity (Max.) dB 0.6 0. 7 0.8 1.0 1.5 2.0
Polarization Dependent Loss dB 0.2 0.2 0.2 0.3 0.3 0.3
Return Loss dB ≥45(PC);50(UPC);60(APC)
Directivity dB ≥55

Parameter Unit Specification (P Grade)
Operation Wavelength nm 1260~1650
Channel Number   2X2 2X4 2X8 2X16 2X32 2X64
Insertion Loss with Connector (Max) dB 4.4/4.6 7.7/8.1 10.8/11.3 14.1/14.4 17.4/17.7 20.6/21.3
Insertion Loss without Connector (Max) dB 4.1/4.3 7.4/7.8 10.5/11 13.8/14.1 17.1/17.4 20.3/21.0
Uniformity (Max.) dB 0.6 0. 7 0.8 1.0 1.5 2.0
Polarization Dependent Loss dB 0.2 0.2 0.2 0.3 0.3 0.5
Return Loss dB ≥45(PC);50(UPC);60(APC)
Directivity dB ≥55

Environmental Conditions

Operating Temperature -40~+85
Storage Temperature -40~+85
Operating Humidity %RH ≤93
Storage Humidity %RH ≤93

Cable Infor

Fiber type G657A1
Pigtail cable 900um
Connector SC, LC,FC,ST,…….
2xN Splitter Only Single Chip

Dimension (mm)

SC/UPC 1 x 8 Fiber Optic PLC Splitter Mini tube Type Splitter Plc Splitter waterproof SC UPC LGX box cassette type

Use range

SC/UPC 1 x 8 Fiber Optic PLC Splitter Mini tube Type Splitter Plc Splitter waterproof SC UPC LGX box cassette type

Our Services

1, Free samples--- we can supply free products for testing .

2, Brand---OEM service acceptable

3, Payment terms---Nice payment. Like T/T, Western Union, Paypal etc.

4, Quality Level---High quality as per your requirements.

5, Competitive price---The manufacturer having our own factory has the advantage.

6, Delivery Time--- Usually 3 days. Less than a week.

8, Optical Network Project Consultant---Professional experts help you.

9, New Products development for customer---We can produce it for you with pattern.

10, logistic solution--- Cost-effective ways can be chosen for you.

Company Information

OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network’s needs.

Quality is life of OMC. Our firm commitment is to deliver world class product to our customers and forever exceed their expectations. We also offer Solid after sales support i.e. 3 years product warranty under no conditions

OMC treat our customers, suppliers, and employees as our respectable partners. We very happy to share our success with them. Offering best products to our customers, Long-term/Loyal partnership to our supplier and good salary/welfare to our employees. OMC also spare no effort to care our society and environment. With a grateful heart, OMC will go firmly to the bright way that we are longing for.

We hereby gather in OMC, with plentiful passion and professional techniques to service customers all over the world
