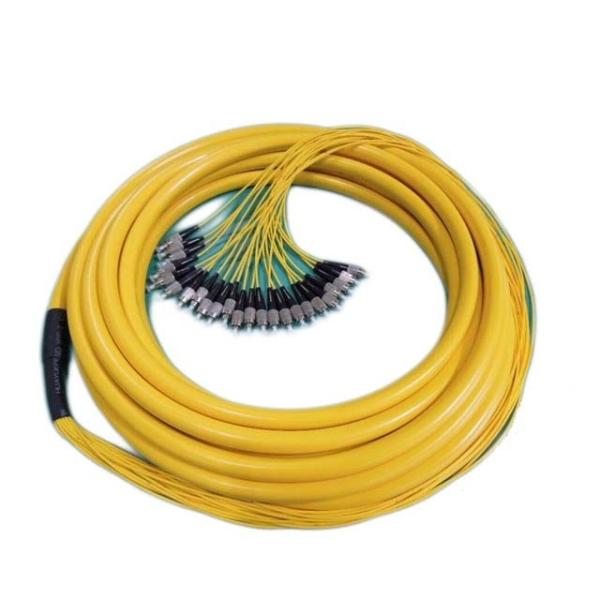

High Power Pigtail Patch Cord FC UPC 24 Fiber Bundle 24 Colors With FC Connector
High Power Pigtail Patch Cord FC UPC 24 Fiber Bundle 24 Colors With FC Connector
Specifications
Brand Name :
Blueto
Model Number :
FC bundle 24fibers SM
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
5pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
15000 Pieces per Week
Delivery Time :
3-5workig days
Packaging Details :
Neutral packing
Color :
24colors
Fiber count :
24
Conector type :
UPC or APC
Fiber type :
SM or MM
Connector model :
SC ,ST,FC,LC,etc
Description

Fiber optic 24fiber bundle 24colors FC UPC pigtails single SM

Application:
Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication system
Telecommunication

Specification:

Parameter Unit FC, SC, LC ST, MU MT-RJ, MPO E2000
SM MM SM MM SM MM SM
PC UPC APC PC PC UPC PC PC UPC PC PC APC
Insertion loss(typical) dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.3
Return loss dB ≥45 ≥50 ≥60 ≥30 ≥45 ≥50 ≥30 ≥45 ≥50 ≥35 ≥55 ≥75
Operating wavelength nm 1310, 1510 1310, 1510 1310, 1510 1310, 1510
Exchangeability dB ≤0.1 ≤0.1 ≤0.2 ≤0.2
Vibration dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Operating temperature °C -40~80 -40~80 -40~80 -40~80
Storage temperature °C -45~85 -45~85 -45~85 -45~85
Cable diameter mm φ3.0, φ2.0, φ0.9 φ3.0, φ2.0, φ0.9 φ3.0, φ2.0, φ0.9 φ3.0, φ2.0, φ0.9

Ordering Information:
FC/ UPC–SM-12Core-0.9mm-Ribbon 30cm-3meter Ribbon Pigtail.

1 2 – 3 - 4 - 5 - 6 - 7
1 Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
2 Ferrule End-face: PC, UPC, APC
3 Fiber Type: Single-mode (SM: 9/125um-G652), Multimode (MM: 50/125um-OM2 or 62.5/125um-OM1), OM3, OM4….;
4 Core Type: 1/2/4/6/8/12 Core optional…
5 Ribbon cable Diameter: 2.0mm, 0.9mm
6Ribbon cable Length: 20cm, 30cm,50cm…or customized
7 Cable Length: 1m,2m,3m or customized

8 type: PVC, LSZH, OM3, OFNR, OFNP

High Power Pigtail Patch Cord FC UPC 24 Fiber Bundle 24 Colors With FC Connector

High Power Pigtail Patch Cord FC UPC 24 Fiber Bundle 24 Colors With FC Connector

High Power Pigtail Patch Cord FC UPC 24 Fiber Bundle 24 Colors With FC Connector
