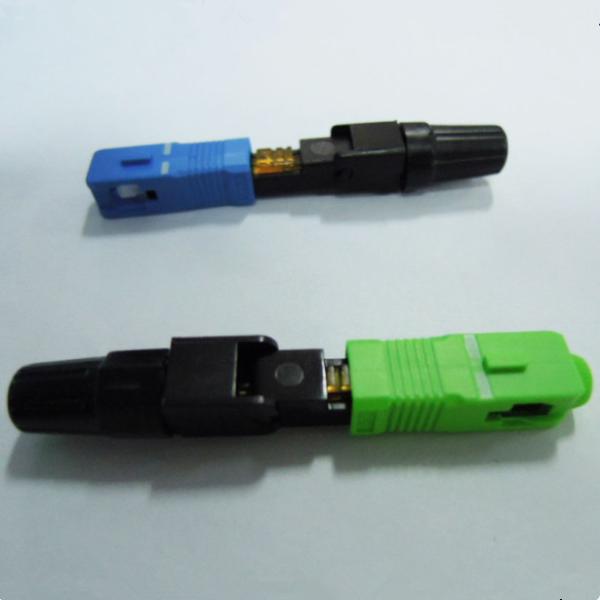

Embedded Type Fiber Optic Connectors SC/APC SC/UPC , Optical Fiber Quick SM Connector
Embedded Type Fiber Optic Connectors SC/APC SC/UPC , Optical Fiber Quick SM Connector
Specifications
Brand Name :
Blueto
Model Number :
SC/APC UPC Embedded type
Certification :
ROHS
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Delivery Time :
3-5working days
Packaging Details :
Neutral packing
Type :
SC/UPC,SC/APC
Color :
Blue,green
Model :
Single model,multi model
Description

Fiber Optic SC/APC SC/UPC Embedded type Fast Connector,

Specifications

  1. SC/APC Field Assembly Connector, body length:59mm
  2. No need splice machine, easy operation
  3. Front push type lock. Pre-polish type.

Description

  1. Based on unique box-building crimping technology
  2. Axially firm fitting of optical fibers,reducing any performance degradation due to loss in the matching gel.
  3. Uninterrupted fitting and connecting technology,hence signals are free of impact from external force
  4. The naked fiber,tight buffer and cable,etc, can fully meet the enviromental requirments from the terminals customer.
  5. Integrated protection of the casing to withstand harsh outdoor environment
  6. High success rate and easiness in installation with average splicing time of 30sec
  7. Applicable for FTTx optical fiber splicing and for repairing any damaged lines to realize firm and reliable splicing of fibers.

Parameter

ITEM Technical Parameters
Applicable for 3.1*2.0mm Drop cable&250um&900um Fiber
Optical fiber diameter 125Um(G652D,657A&657B)
Tight buffer diameter(um) 250um
Fiber mode Single mode
Operation time About 30s(no fiber cut)
Average Insert loss ≦0.30dB(1310nm&1550nm)
Return loss ﹥45dB
Fastening strength of naked fiber ﹥5N
Fastening strength of naked fiber holder ﹥8N
Tensile strength ﹥50N
Using temperature -40~+75℃
On-line tensile strength(50N) IL≦0.2Db RL≦5dB
Repeatability(10times) IL≦0.2Db RL≦5dB
