FBT 1×2 2mm 3mm SC APC Fiber Optic Splitter For CATV Links
FBT 1×2 2mm 3mm SC APC Fiber Optic Splitter For CATV Links
Specifications
Model Number :
FBT SC/APC
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
2pcs
Price :
CE/ROHS/ISO9001
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
10000pcs per week
Delivery Time :
4-6working days
Packaging Details :
Neutral packing
Model :
FBT
Connector :
SC/APC
Input&output :
1x2
Fiber model :
Single model
Cable color :
Yellow
Description

Fiber Optic FBT 1×2 Splitter/Coupler With Plastic Box 2mm,3mm SC/APC connectors

Introduction:

Optical coupler is an optical device that combines or splits power from optical fibers. Optical splitter divides light from a single fiber into two or more fiber channels.

Compliance :

Telcordia GR-1209-CORE

Telcordia GR-1221-CORE

RoHS

Features:

Low Insertion loss

Low PDL

Compact Design

Good channel-to-channel uniformity

Wide Operating Wavelength:1310/1490/1550

Wide Operating Temperature:From -40°C to 85°C

High Reliability and Stability

Application:

FTTX Systems

PON Networks

CATV Links

Optical Signal Distribution

Specifications

1×N FBT Splitter

Parameters 1×2 1×4 1×8 1×16 1×32
Operating Wavelength (nm) 1310/1490/1550
Fiber Type G657A1 or customer specified
Insertion Loss (dB)(P/S Grade) 3.8/4.0 7.1/7.3 10.2/10.5 13.5/13.7 17/17.4
Loss Uniformity (dB) 0.4 0.6 0.8 1.2 1.5
Polarization Dependent Loss(dB) 0.2 0.2 0.2 0.25 0.3
Return Loss (dB) (P/S Grade) 55/50 55/50 55/50 55/50 55/50
Directivity (dB) 55 55 55 55 55
Wavelength Dependent Loss (dB) 0.3 0.3 0.3 0.5 0.5
Temperature Stability (-40~85 °C)(dB) 0.4 0.4 0.4 0.5 0.5
Operating Temperature (°C) -40~85
Storage Temperature (°C) -40~85
Device Dimension (mm) 40×4×4 40×4×4 40×4×4 50×4×4 50×7×4
Module Dimension (mm) 100×80×10 100×80×10 100×80×10 120×80×18 140×115×18
Mini-Module Dimension (mm) 50×7×4 50×7×4 50×7×4 60×12×4

80×20×6

Image:

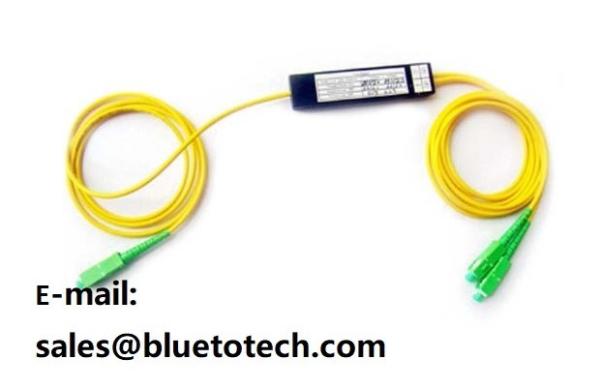

FBT 1×2 2mm 3mm SC APC Fiber Optic Splitter For CATV Links
