RDC Connector FTTA BBU Base Station Fiber Optic Cable
RDC Connector FTTA BBU Base Station Fiber Optic Cable
RDC Connector FTTA BBU Base Station Fiber Optic Cable
RDC Connector FTTA BBU Base Station Fiber Optic Cable
RDC Connector FTTA BBU Base Station Fiber Optic Cable
RDC Connector FTTA BBU Base Station Fiber Optic Cable
RDC Connector FTTA BBU Base Station Fiber Optic Cable
RDC Connector FTTA BBU Base Station Fiber Optic Cable
Specifications
Brand Name :
Rosenberger
Model Number :
RDC
Certification :
ROHS
Place of Origin :
China
MOQ :
2pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union,Paypal
Delivery Time :
6-8working days
Packaging Details :
Neutral packing
Connector :
Rosenberger
Model :
SM or MM
Fiber count :
2
Description

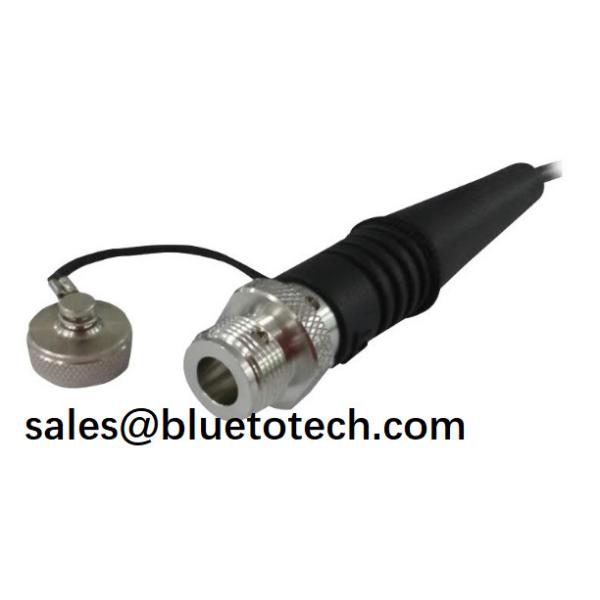

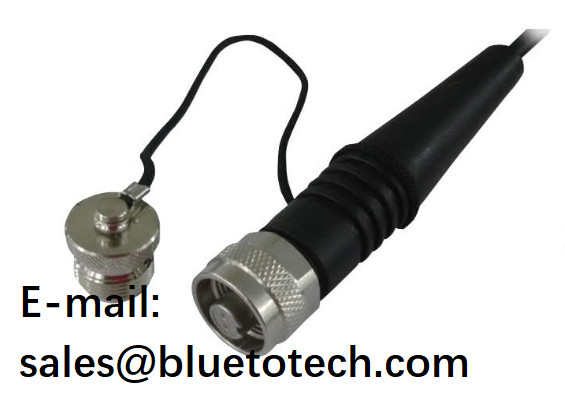

Waterproof Rosenberger RDC Connector FTTA BBU Base Station Outdoor Fiber Optic Cable 2fiber Connector

Using as flexible connection joint in fiber optic network, where there is device with a fiber optic interface installed in outdoor or harsh environment. Typical is for mobile communication (FTTA), broadcast, smart-grid cabling application.

Standard IEC 61753-1 Cat. E
Housing Material Nickel-plated brass
Ferrule Material Zirconia ceramic
Operating Temperture -40°C~+125°C (dependent on cable type)
Imgress Protection IP67 (IEC 60529)
Mechnical Resistance >600N
Mating Cycles ≥1000
Suitable Cable (mm) D4-D7 (Mini) breakout or D1.7 Simplex cable
Fiber Types SM, OM1, OM2, OM3, OM4
2011/65 /EU(RoHs) Compliant

Features:

•2 fibers connector
•Support singlemode and multimode
•Robust connector system with screwed locking mechanism
•Components of the N coaxial connector according to MILPRF-39012 enable a conversion
•With the standard panel cutout, the receptacle can easily replace a coaxial connector type
•Mated or with attached protection cap, plug and receptacle are sealed according to IEC 60529 IP67
•Captive protection cap, plastic dust cap and metal cap without rope are available
•PC and APC are available

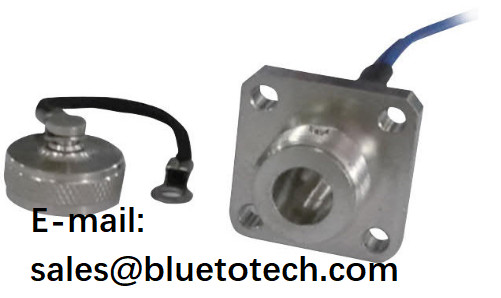

•Cable connector (male/female) and flange connector (female) are available

Images:

RDC Connector FTTA BBU Base Station Fiber Optic CableRDC Connector FTTA BBU Base Station Fiber Optic Cable

RDC Connector FTTA BBU Base Station Fiber Optic CableRDC Connector FTTA BBU Base Station Fiber Optic Cable

RDC Connector FTTA BBU Base Station Fiber Optic Cable

RDC Connector FTTA BBU Base Station Fiber Optic Cable

RDC Connector FTTA BBU Base Station Fiber Optic Cable
