LC/APC Fiber Optic Attenuator Plastic Housing For Testing Equipment Female To Male LC Attenuatr
LC/APC Fiber Optic Attenuator Plastic Housing For Testing Equipment Female To Male LC Attenuatr
LC/APC Fiber Optic Attenuator Plastic Housing For Testing Equipment Female To Male LC Attenuatr
LC/APC Fiber Optic Attenuator Plastic Housing For Testing Equipment Female To Male LC Attenuatr
LC/APC Fiber Optic Attenuator Plastic Housing For Testing Equipment Female To Male LC Attenuatr
LC/APC Fiber Optic Attenuator Plastic Housing For Testing Equipment Female To Male LC Attenuatr
Specifications
Brand Name :
Blueto
Model Number :
LC UPC APC male to female
Certification :
ROHS
Place of Origin :
China
MOQ :
5
Price :
Negotiation
Payment Terms :
T/T, Western Union,Paypal
Delivery Time :
2-4working days
Packaging Details :
Plastic bag
Material :
Plastic housing
Housing color :
Blue,agreen
Model :
SM or MM
Packing :
PE bag
Description

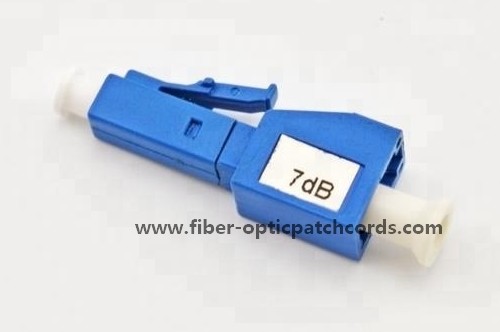

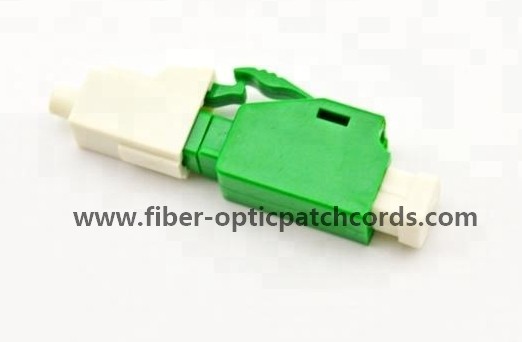

LC/APC Male to Female Fiber Optic Attenuator

Fiber Optic Attenuator is a component installed in a fiber optic transmission system that reduces the power in the optical signal.

It is often used to limit the optical power received by the photo detector to within the limits of the optical receiver.

Features:

Low back reflection and Low PDL

High precision attenuation value

Precision control of attenuation range

Wide attenuation range

Precision ceramic ferrule

FC, SC, ST, LC … optional

Plastic or metal housing material

Application:

Fiber optical telecommunication system

Fiber optical CATV

Fiber optical sensor

Testing equipment

Specification:

Item Unit Parameter
Operating Wavelength nm SM:1310/1550nm MM: 850 /1300nm
Attenuation Range dB 1-10dB(1dB step), 15, 20, 25, 30dB
Return Loss dB PC:≥50 UPC: ≥55 APC: ≥60
Attenuation Tolerance dB ≤+/-0.5(1-10dB) or ≤+/-1.0(11-30dB)
Working Temperature °C -25°C~+75°C
Storage Temperature °C

-40°C~+ 85°C

LC/APC Fiber Optic Attenuator Plastic Housing For Testing Equipment Female To Male LC AttenuatrLC/APC Fiber Optic Attenuator Plastic Housing For Testing Equipment Female To Male LC AttenuatrLC/APC Fiber Optic Attenuator Plastic Housing For Testing Equipment Female To Male LC Attenuatr
