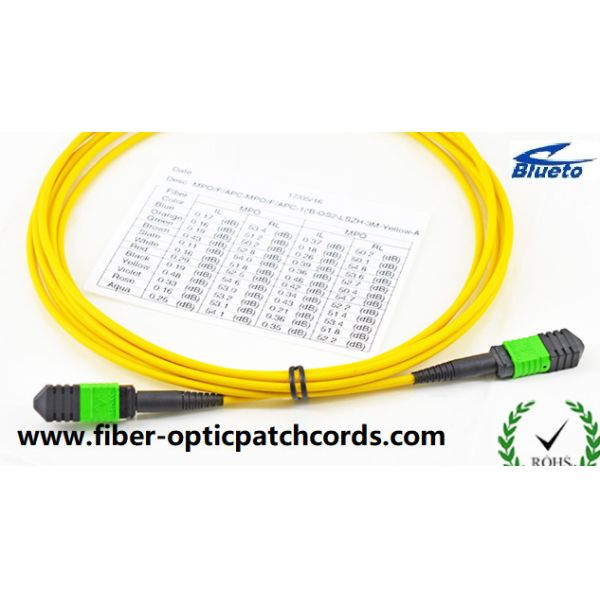

MTP MPO Fiber Optic Patch Cord LSZH Dia 3mm Data Fiber Cable
MTP MPO Fiber Optic Patch Cord LSZH Dia 3mm Data Fiber Cable
MTP MPO Fiber Optic Patch Cord LSZH Dia 3mm Data Fiber Cable
MTP MPO Fiber Optic Patch Cord LSZH Dia 3mm Data Fiber Cable
Specifications
Model Number :
MTP/MPO-MTP/MPO
Certification :
ROHS
Place of Origin :
China
MOQ :
1pc
Price :
Negotiation
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
1000pcs/week
Delivery Time :
3-5working days
Packaging Details :
Neutral packing
Materila :
LSZH
Fiber Count :
8,12,24,48
Model :
SM
Cable Color :
Yellow
MTP/MPO Connector Color :
Green
Cable diameter :
3mm
Description

MPO to MPO MTP to MTP 8fiber 12fiber 24fiber 48fiber Optical Fiber Patch Cord, 8/12/24/48 MTP MPO Data Fiber Cable

MPO/MTP ribbon and trunk mulitcore cable assemblies facilitate rapid deployment of high density backbone cabling in data centers and other high fiber environment, reducing network in stallation or reconfiguration time and cost. It is used to interconnect cassettes, panels, or fan outs, it offered in fiber types in standard 8 , 12 ,24 ,or 48 cores

Features:

● Low Insertion loss;
● Low PDL;
● Compact Design;
● Good channel-to-channel uniformity;
● Wide Operating Temperature:From -40℃ to 85℃;
● High Reliability and Stability.

Parameters:

Model Single Mode Multi Mode
Fiber Count 8/12/24 cores
Polish UPC /APC
Housing Colors Standard (green),Elite (Yellow) Standard(Beige)Elite(Auqa)
Insertion Loss Standard Type ≤0.7dB ≤0.5dB
Insertion Loss Elite Type ≤0.35dB ≤0.3dB
Return Loss UPC >50dB, APC>60dB >30dB
Durability (500 matings) ≤0.2dB
Test Wavelength 1310/1550nm 850/1300nm

Images:

MTP MPO Fiber Optic Patch Cord LSZH Dia 3mm Data Fiber Cable

MTP MPO Fiber Optic Patch Cord LSZH Dia 3mm Data Fiber Cable
