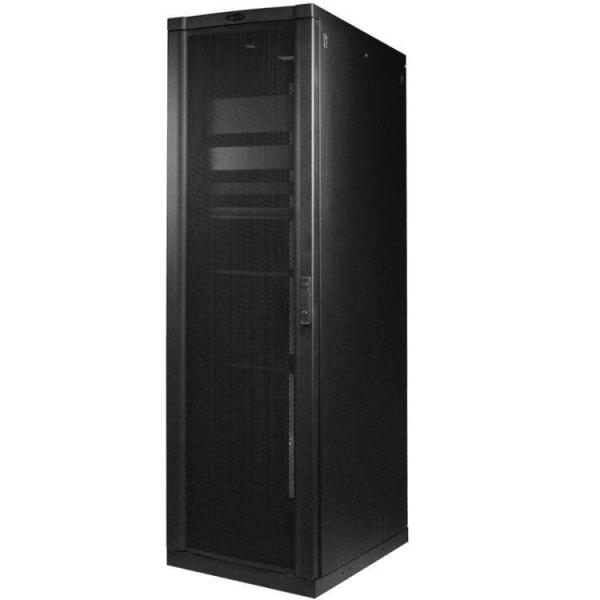

19 Inch Server Rack Cabinet , DDF Network Server Rack Enclosure Cabinet
19 Inch Server Rack Cabinet , DDF Network Server Rack Enclosure Cabinet
Specifications
Place of Origin :
China
Brand Name :
XunliComm
Certification :
CE,ROHS,ISO9001
MOQ :
10PCS
Price :
Negotiable
Packaging Details :
By standard export package.
Delivery Time :
3-15 Days
Payment Terms :
T/T, Western Union, MoneyGram/Paypal
Supply Ability :
1000 Pieces per Day
Material :
Cold-rolled steel
Color :
Black
Feature :
Environmental friendly
Finish :
Powder coating, painting, etc
Structure :
Rigid and standing
Size :
600*600*1000
Description

19inch Server Rack Cabinet DDF Network Cabinet

Product Specification

standing column Frame Side Door
60cm High Server Tower Cabinet 1.2mm thickness 0.9mm thickness 0.8mm thickness
100-120cm High Server Tower Cabinet 1.5mm thickness 1.0mm thickness 1.0mm thickness

Standard Specification

  • ANSI/EIA RS-310-D
  • IEC60297-2
  • DIN41494: PARTI
  • DIN41494: PART7

Product Description

  • All cold-rolled steel sheets have gone through acid pickling silanization treatment, which is environmental friendly.
  • There are various cable laying channels, which can be open and closed according to your requirements. The frame is specially designed with routing holes, making the wires perfectly invisible, which looks elegant and gracious.
  • Removable left/right side doors and front/rear doors, easy to operate.
  • High strength bearing angle gauge, so the depth direction can be adjusted back and forth.
  • The fan unit is installed from the top, so it is easy to disassemble and maintain during use.
  • Earthing holes and earthing posts are reserved in the cabinet to meet the needs of field use.

Product Accessories

Product Name Product Information
Lock Long handle lock for front door; small padlock for rear door
Tray 1.2m and below cabinet 1 piece
1.6m and above cabinet 2 pieces
Screw and nut 1m and above cabinet M6 * 20 sets
0.6m cabinet M6 * 10 sets
Radiator fan 600mm depth 1 fan unit * 1 set
800mm depth 2 fan unit * 1 set
Castor and shelf M12 adjustable shelf * 4; 2’’ heavy duty castor * 2; brake castor
PDU 6-bit universal power socket(the server cabinet is exclusive of PDU)
Other accessories Star-shaped plum wrench; wire slot * 2 for 800 wide sever cabinet

Related products

Product Profile Model Number Product size (mm)
12U network cabinet HB-6612 600x600x600
18U network cabinet HB-6618 600x600x1000
23U network cabinet HB-6623 600x600x1200
23U server cabinet HB-6823 600x800x1200
23U server cabinet HB-6923 600x900x1200
23U server cabinet HB-6023 600x1000x1200
32U network cabinet HB-6632 600x600x1600
42U network cabinet HB-6642 600x600x2000
42U server cabinet HB-6842 600x800x2000
42U server cabinet HB-6942 600x900x2000
42U server cabinet HB-6042 600x1000x2000

All of our cabinet is equipped with glass front door and iron rear door. If you want to order, please note: letter “F” for flat door, “W” for wave-shaped door, “G” for glass door. For general configuration, the “G” can be omitted. For example: HB-6642WF means 2000*600*600 cabinet with wave-shaped front door and flat rear door.
