OEM LC LC Duplex Patch Cord Yellow Color Excellent Environmental Adaptability
OEM LC LC Duplex Patch Cord Yellow Color Excellent Environmental Adaptability
OEM LC LC Duplex Patch Cord Yellow Color Excellent Environmental Adaptability
OEM LC LC Duplex Patch Cord Yellow Color Excellent Environmental Adaptability
Specifications
Brand Name :
XunliComm
Model Number :
XLC-FOPC-01
Certification :
CE,ROHS,ISO9001
Place of Origin :
China
MOQ :
10PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram/Paypal
Supply Ability :
1000 Pieces per Day
Delivery Time :
3-15 Days
Packaging Details :
By standard export package.
Length :
3 Meters or Customized
Feature :
waterproof
Type :
Single Mode
OEM :
Provided
Insertion Loss :
<0.2dB(Typical), <0.3dB(max)
Return Loss :
APC>60dB; UPC>50dB
Mode Of Fiber :
SM OM1 OM2 OM3 OM4
Type Of Fiber :
657A1 657A2 G657B3 G652D
Description

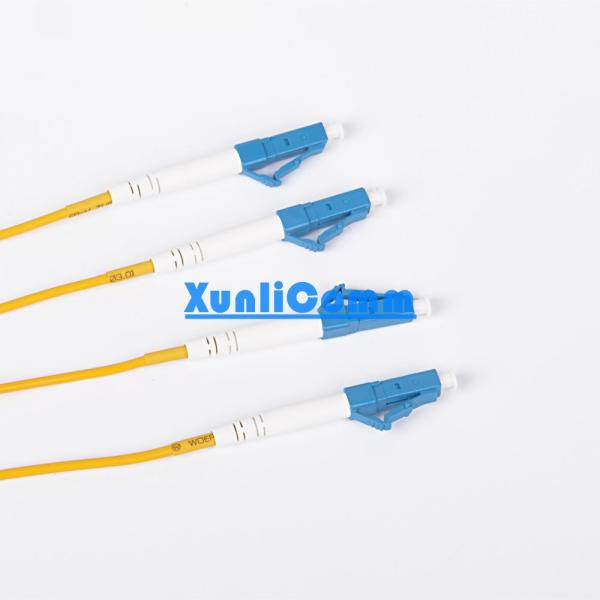

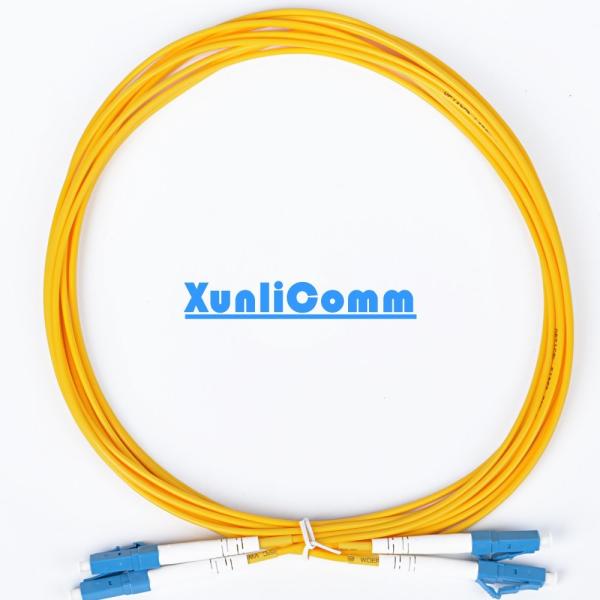

Single Mode Duplex Fiber Optic Patch Cord LC - LC yellow color

Product Description

Fiber Optic Patch Cord is important of optical network. They have same or different connectors which are installed on the end of fiber optic cable. Fiber optic patch cables are used in two major application areas: computer work station to outlet and patch panels or optical cross connect distribution center. The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.

Feature

1). Low Insertion loss

2). High return loss

3). Good Repeatability

4). Good Interchange

5). Excellent Environmental Adaptability

Specification

Type Standard,Master
Style LC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC,FC/APC,LC/APC.MU/APC
Fiber Singlemode/Multimode
50/125, 62.5/125 (Multimode) OM2&OM1
50/125, 10G (Multimode) OM3
Cable Simplex, Duplex
Φ3.0mm, Φ2.0mm, Φ0.9mm
PVC or LSZH
Polishing Manner UPC,SPC,APC (8°& 6°)
Insertion Loss ≤ 0.1dB (For Singlemode Master)
≤ 0.25dB (For Singlemode Standard)
≤ 0.25dB (For Multimode)
Tested by JDS
Return Loss
(Singlemode)		 UPC ≥ 50dB
SPC ≥ 55dB
APC ≥ 60dB (typ.65dB)
Tested by JDS RM3750
Repeatability ±0.1dB
Operating temperature -400C to 850C
Geometry Requirement
( Singlemode)		 Ferrule Endface Radius
7mm ≤ R ≤ 12mm (For APC)
10mm ≤ R ≤ 25mm (For Standard)
Apex Offset ≤ 30 μm (For Master)
Apex Offset ≤ 50 μm (For Standard)
Undercut -50nm ≤ U ≤ 50nm
Tested by DORC
Geometry Requirement
( Singlemode)		 Ferrule Endface Radius
7mm ≤ R ≤ 12mm (For APC)
10mm ≤ R ≤ 25mm (For Standard)
Apex Offset ≤ 30 μm (For Master)
Apex Offset ≤ 50 μm (For Standard)
Undercut -50nm ≤ U ≤ 50nm
Tested by DORC

Application

1). Communication rooms

2). FTTH (Fiber to The Home)

3). LAN (Local Area Network)

4). FOS (fiber optic sensor)

5). Fiber Optic Communication System

6). Optical fiber connected and transmitted equipment

7). Defense combat readiness
