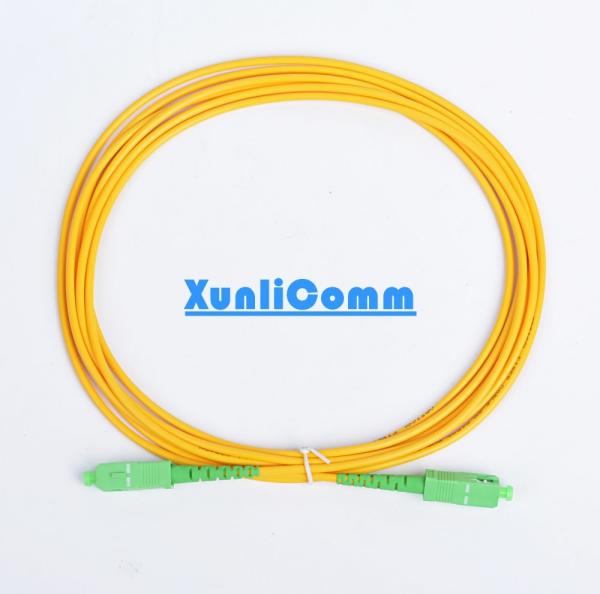

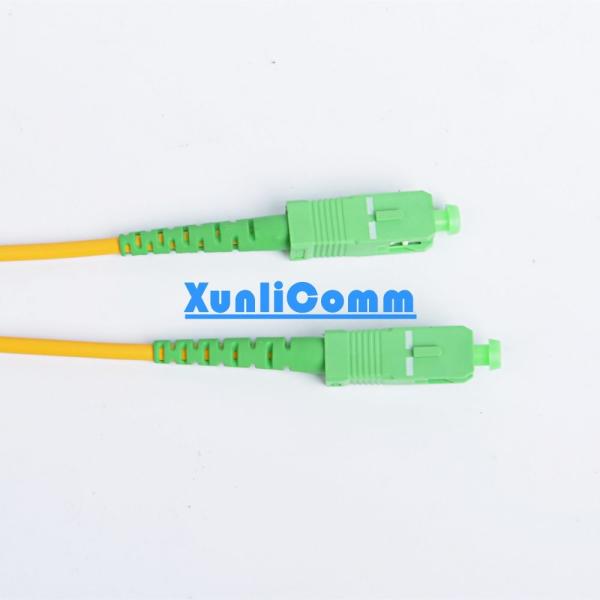

Eco Friendly Optical Fiber Jumper SC / APC - SC / APC Low Insertion Loss
Eco Friendly Optical Fiber Jumper SC / APC - SC / APC Low Insertion Loss
Eco Friendly Optical Fiber Jumper SC / APC - SC / APC Low Insertion Loss
Eco Friendly Optical Fiber Jumper SC / APC - SC / APC Low Insertion Loss
Specifications
Brand Name :
XunliComm
Model Number :
XLC-FOPC-01
Certification :
CE,ROHS,ISO9001
Place of Origin :
China
MOQ :
10PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram/Paypal
Supply Ability :
1000 Pieces per Day
Delivery Time :
3-15 Days
Packaging Details :
By standard export package.
Name :
Single Mode Simplex Fiber Optical Patch Cord
Length :
3 Meters or Customized
Fiber Type :
Single Mode G652D
Color :
Yellow
Material :
PVC or LSZH
Insertion Loss :
<0.30dB
Return Loss :
>50.0dB
Repeatability :
<0.10dB
Exchangeability :
<0.20dB
Application :
FTTH,FTTB,FTTX,Network
Description

sc/apc-sc/apc single mode simplex fiber patch cord

Product Description

Features

1. Price-Competitive

2. Low Insertion Loss & PDL

3. Factory-terminated and Tested

4. Fiber Options: G.652 /G.657/OM1/OM2/OM3 and PM Panda Fiber

5. Connector Options: FC/SC/LC/ST/MU/E2000/MT-RJ/MPO/MTP

6. Polishing Options: PC/UPC/APC

7. Feature Connector with Ceramic Ferrules

Specification​

Item Single Mode Multi Mode
Insertion Loss <=0.2dB <=0.3dB
Return Loss PC≥50dB,UPC≥55dB,APC≥60dB
Insert-pull Test 1000 times
Repeatability ≤0.1
Tensile strength ≥10KG
Operating Temperature -40℃~+85℃
Ceramic Ferrule Specification 125.5um concentricity deviations:≤1um 127um concentricity deviation:≤3um
Suitable Fiber 9/125um 50/125um,62.5/125um

Applications

  1. Local Area Network (LAN)
  2. Data communication network
  3. Telecommunication optical transmission network
  4. Optical access network(OAN)
  5. Active device termination
  6. Fiber optics data transmission(FODT)
  7. Test Equipment
  8. CATV
Product tags

st multimode fiber jumper

,

fiber optic sc apc jumper

,

sc apc fiber jumper
