Fast Connector Fiber Optic SC / UPC 60mm 1260nm To 1650nm Wavelength
Fast Connector Fiber Optic SC / UPC 60mm 1260nm To 1650nm Wavelength
Fast Connector Fiber Optic SC / UPC 60mm 1260nm To 1650nm Wavelength
Fast Connector Fiber Optic SC / UPC 60mm 1260nm To 1650nm Wavelength
Specifications
Brand Name :
OTOP
Model Number :
SC / UPC 60mm
Certification :
ROHS, CE, ISO
Place of Origin :
China
MOQ :
1000pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
200000 pcs per month
Delivery Time :
5-8 working days
Packaging Details :
Carton
Name :
Fiber Fast Connector
Connector :
SC/APC
Wavelength: :
1260nm To 1650nm
Insertion Loss :
< 0.3 dB
Return Loss :
> 50 dB
Length :
50mm / 60mm
Description

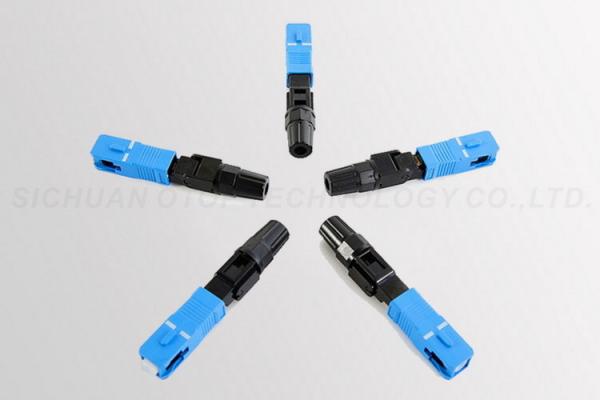

Fast Connector Fiber Optic SC / UPC 60mm 1260nm To 1650nm Wavelength

♦ Specification:


- Model UPC model
- Connector Type SC/UPC
- Fiber diameter 0.125mm
- Fiber Mode Single
- Insertion Loss <0.5dB (typical 0.2dB)
- Return Loss >50dB
- Tensile strength >20N
- Temperature -40ºC-+70ºC
- Temperature cycling IL<0.3dB,RL<5dB

Application:


(1). Insertion loss:≤0.35dB ,Return loss:≥60dB.
(2). Mechaincal Durability:1000matings
(3). Storage temperature:-40℃to+85℃
(4). Operation temperature:- 40 ~ + 85 ℃
(5). Tensile Strengh:>30N
(6). Number of repeated use:5 times above
(7). SC connector according to IEC 61754-4 .
(8). Suitable for cable outer diameter 0.9 mm, 2.0 mm and 3.0 mm, 2 * 3.0 mm.

Fiber Optic connector Description
Quick connector with other on-site comparison
This product is embedded optical fiber, to ensure a controlled factory ceramic polishing face, the radius of
curvature, apex offset, optical fiber end surface polishing projection height and the ceramic mass
The use of high concentricity of the ceramic ferrule embedded fiber ensures a low insertion loss and high return loss
optical performance accuracy of the V-groove to be cut on site slide locking mechanism fixed to the fibers have the
V-groove of the fiber core center the combination of precise fiber core with matching refractive index matching cream
can guarantee quick connectors with high stability and high performance bare fiber, coating, pigtails, skin quadruple
cable clamp, special assembly fixtures to meet the requirements, the operator simple and quick.

Product name Fiber optic Fast Connector Connecter SC/UPC
Insertion Loss ≤0.3dB Reflection Loss ≥50dB
Inner Box Size 200*160*90mm Inner Box Quantity 200pcs
Mother Carton 480*350*240mm/10.5kg Mother Carton Quantity 2000pcs

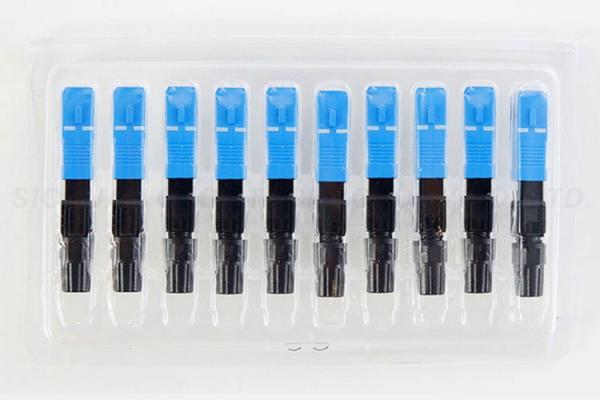

♦ Packing


- Blister & Carton

Fast Connector Fiber Optic SC / UPC 60mm 1260nm To 1650nm Wavelength
