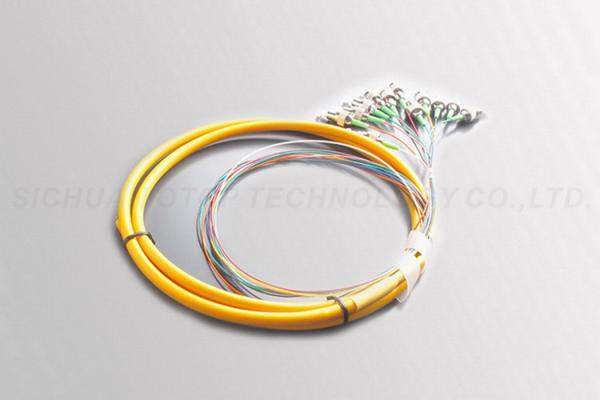

FC / APC Multimode Pigtail G652D G657A Customized Cable Length Yellow Color
FC / APC Multimode Pigtail G652D G657A Customized Cable Length Yellow Color
Specifications
Brand Name :
OTOP
Model Number :
FC/APC
Certification :
ISO9001
Place of Origin :
China
MOQ :
1000pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
400000pcs per month
Delivery Time :
5-8 working days
Packaging Details :
Plastic bag and Carton
Connector :
LC/APC
Application :
FTTH FTTB FTTX Network
Connector type :
FC / APC
Color :
Colorful
Cable diameter :
0.9/2.0/3.0mm
Cable length :
Customized
Jacket material :
PVC.LSZH
Description

FC / APC Multimode Pigtail G652D G657A Customized Cable Length Yellow Color

♦ Features

Reliable performance, universal used
Anti-pulls, corrosion protected, the harsh conditions in the wild used
Construction of convenience, the optical fiber is fixed when twist the joints

- Price-Competitive

- Low Insertion Loss & PDL

- Factory-terminated and Tested

- Fiber Options: G652D /G657A/OM1/OM2/OM3 and PM Panda Fiber

♦ Applications

1. Telecommunication networks

2. Optical fiber access networks

3. Optical Switch Interframe Connection

4. Optical fiber data communication

5. Optical fiber test equipment

6. Premise installations

7. FTTH FTTX applications

- Access Network

- Telecom/CATV Systems

- FTTx

♦ Specification

Parameters Standard Fiber Cable Assemblies
Fiber Type SM(G.652/G.657A) MM(OM1/OM2/OM3/OM4/OM5)
Jacket Materials LSZH/OFNR/PVC
Connector Type SC/LC/ST/LC/MU/DIN/SMA/MTRJ/MPO/E2000
Ferrule Materials Ceramic
Testing Wavelengths 1310±30/1550±30nm 850±30/1300±30nm
Insertion Losss(dB)
TIA/EIA-455-107		 ≤ 0.25dB
(PC/UPC/APC)		 ≤ 0.3dB
(PC/UPC)
Return Loss(dB)
TIA/EIA-455-107		 ≥50dB(PC/UPC)
≥60dB(APC)		 ≥40dB(PC/UPC)
Exchangeability ≤ 0.2dB
Cable Assemblies Pigtail/Simplex/Duplex/Fan-out Patchcord
Operating Temperature (° C) -10~ + 70
Storage Temperature (° C) -40 ~ +85
Package 1unit/bag
*All values specified are with connectors.

♦ Packing

Plastic & carton
