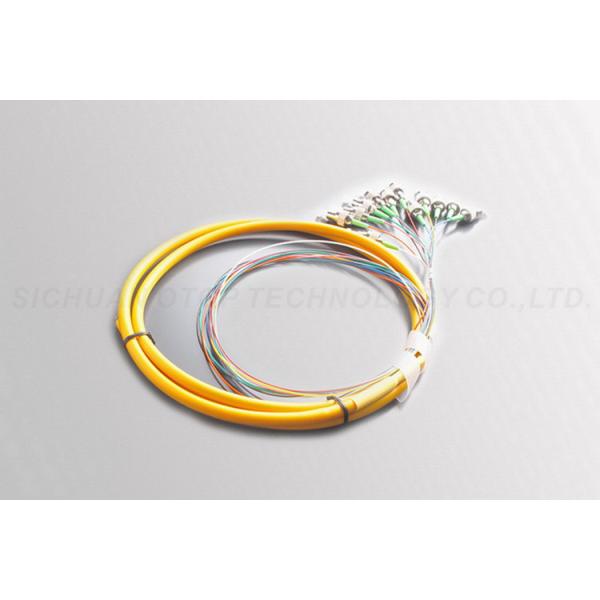

Colorful FC APC Pigtail Customized Length Return Loss >/=55 dB
Colorful FC APC Pigtail Customized Length Return Loss >/=55 dB
Specifications
Brand Name :
OTOP
Model Number :
FCAPC
Certification :
ROHS, SGS, Telcordia GR-1209 & GR-1221
Place of Origin :
China
MOQ :
1000pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
400000pcs per month
Delivery Time :
5-8 working days
Packaging Details :
Plastic bag and Carton
Product name :
fiber optic pigtail
Length :
1.5m or customized
Connector type :
FC/APC
Color :
yellow
Return loss :
>/=55 dB
Wavelength :
1310nm/1550nm/850nm/1300nm
Cable length :
can be customized
Operating temperature :
-40~85 ℃
Description

Colorful FC APC Pigtail Customized Length Return Loss >/=55 dB

♦ Features

Single mode and multi mode SC fiber optic patch cables, SC-LC, SC-ST, SC-FC, SC-MU, SC-MTRJ, SC-E2000, 9/125μm, 50/125μm, 62.5/125μm, SM, MM, simplex, duplex, UPC, APC, PC. Customized design cables are available.

The SC fiber optic patch cord is one of the earliest type and one of the most commonly used fiber optic cable, it is convenient to use and cost saving, It is the most cheapest type fiber optic patch cable. SC fiber patch is widely uesed in fiber optic networks. SC fiber patch cable is with zirconia sleeve and plastic housing.

- Price-Competitive

- Low Insertion Loss & PDL

- Factory-terminated and Tested

- Fiber Options: G652D /G657A/OM1/OM2/OM3 and PM Panda Fiber

- Connector Options: FC/SC/LC/ST/MU/DIN/SMA/E2000/MT-RJ/MPO/MTP

- Polishing Options: PC/UPC/APC

- Feature Connector with Ceramic Ferrules

♦ Applications

- Access Network

- Telecom/CATV Systems

- FTTx

♦ Specification

Parameters Standard Fiber Cable Assemblies
Fiber Type SM(G.652/G.657A) MM(OM1/OM2/OM3/OM4/OM5)
Jacket Materials LSZH/OFNR/PVC
Connector Type SC/LC/ST/LC/MU/DIN/SMA/MTRJ/MPO/E2000
Ferrule Materials Ceramic
Testing Wavelengths 1310±30/1550±30nm 850±30/1300±30nm
Insertion Losss(dB)
TIA/EIA-455-107		 ≤ 0.25dB
(PC/UPC/APC)		 ≤ 0.3dB
(PC/UPC)
Return Loss(dB)
TIA/EIA-455-107		 ≥50dB(PC/UPC)
≥60dB(APC)		 ≥40dB(PC/UPC)
Exchangeability ≤ 0.2dB
Cable Assemblies Pigtail/Simplex/Duplex/Fan-out Patchcord
Operating Temperature (° C) -10~ + 70
Storage Temperature (° C) -40 ~ +85
Package 1unit/bag
*All values specified are with connectors.

♦ Packing

Plastic & carton
