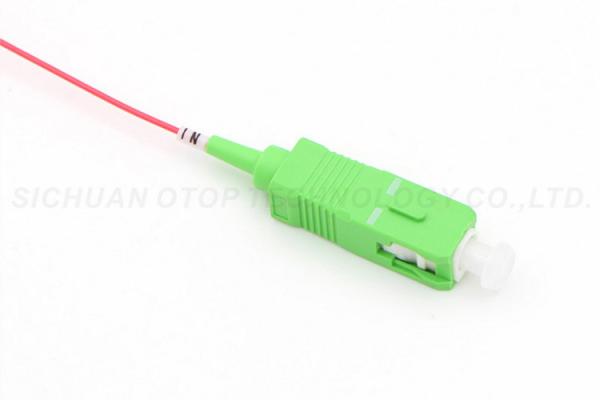

FTTX Steel Tube Wdm In Optical Communication 1x2 SC / APC Telcordia GR-1209
FTTX Steel Tube Wdm In Optical Communication 1x2 SC / APC Telcordia GR-1209
FTTX Steel Tube Wdm In Optical Communication 1x2 SC / APC Telcordia GR-1209
FTTX Steel Tube Wdm In Optical Communication 1x2 SC / APC Telcordia GR-1209
Specifications
Brand Name :
OTOP / OEM Accepted
Model Number :
1x2 SC/APC WDM
Certification :
RoHS, Telcordia GR-1209 & GR-1221, ISO9001,ISO14000, OHSAS18001
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
10000 pcs per month
Delivery Time :
10 working days
Packaging Details :
Carton
Wavelength :
1310/1490/1550nm
Directivity :
55 dB
Structure Type :
Steel Tube Type/ABS Box Type
Connectors :
SC / APC Connector
Warranty :
2 Years
Name :
1x2 SC / APC WDM Splitter
Description

FTTX Steel Tube Wdm In Optical Communication 1x2 SC / APC Telcordia GR-1209

♦ Feature

1. Optical fiber data transmission.

2. CATV

3. Optical fiber communication systems.

4. Building network access.

5. FTTX applications.

6. Cabling system, ODF.

- Good channel-to-channel uniformity
- Wide Operating Wavelength: From 1260nm to 1620nm
- Wide Operating Temperature: From -40ºC to 85ºC
- High Reliability and Stability

♦ Specification

Ceter Wavelength 1310/1490/1550nm
Bandwidth ± 20nm ± 40nm
Exess Loss ≤ 0.1dB (0.05dB Typ.)
Coupling Ratio 50/50 40/60 30/70 20/80
Typ. Insertion Loss(dB) 3.05 4.2/2.4 5.4/1.8 7.1/1.1
Max. Insertion Loss(dB) 3.4 4.4/2.5 5.6/1.8 7.4/1.1
Polarization Sensitivity 0.1 0.1 0.15/0.1 0.15/0.1
Directivity (1*2) ≥55dB, (2*2) ≥60dB
Operating Temperature -40 ~ +80 °C
Storage Temperature -20 ~ +70 °C
Thermal Stability ≤ 0.1dB over -40 ~ +80 °C
Lead Length 1m, others on request
Lead Type Bare fiber, 0.9mm, 2.0mm, 3.0mm

♦ Advanced aluminum house with good heat Dissipation

♦ Full-GaAs MMIC application with low noise. Digital signal is received -18dBm at lowest and analogy signal -9dBm at lowest.

♦ AGC control range: 0~-9dBm, output level keep unchanged.

♦ Low power consumption, high-efficiency switch power can make sure the high reliability and stability of power supply. Power consumption less than 2W. It adopts optical detecting circuit.

♦ Multi-stage anti-thunder devices (TVS transient suppression diode), strictly anti-thunder system to ensure the safe operation of the equipment

♦ Built-in WDM,single-fiber to the home (1490/1310/1550nm) triple-play application can be realized.

♦ Built-in isolator can split the two optical waves (1490nm and 1310nm)

♦ Output gain adjustable (0~18dB),output level >80dBuV.It can realize the power supply of 8V input port feeding.

♦ One output or two outputs.

FTTX Steel Tube Wdm In Optical Communication 1x2 SC / APC Telcordia GR-1209
