1x8 PLC Optical Cable Splitter ABS Black Box Cassette 2.0mm / 3.0mm Pigtail
1x8 PLC Optical Cable Splitter ABS Black Box Cassette 2.0mm / 3.0mm Pigtail
Specifications
Brand Name :
OTOP / OEM Accepted
Model Number :
2.0mm, 3.0mm FC ABS Box PLC Splitter
Certification :
ROHS, SGS, Telcordia GR-1209 & GR-1221, ISO9001,ISO14000, OHSAS18001
Place of Origin :
China
MOQ :
5
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
50000 pcs / Month
Delivery Time :
5-10 working days
Packaging Details :
Carton box
Type :
1xN, 2xN, ABS Fiber Optic Splitter
Pigtail Color :
Yellow
IL :
Max. 10.4dB
Wavelength :
1260 - 1650nm
Port :
Shanghai, Guangzhou, Chengdu
Description

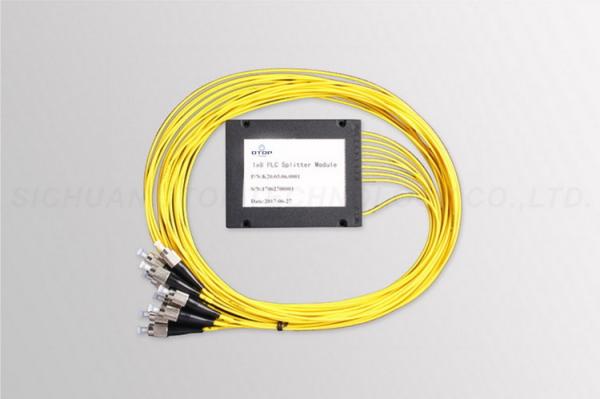

1x8 PLC Fiber Optic Splitter ABS Black Box Cassette 2.0mm, 3.0mm Pigtail



♦ Fiber Optic Splitter Introduction


Optical coupler is an optical device that combines or splits power from optical fibers.
Optical splitter divides light from a single fiber into two or more fiber channels.

Fiber optic PLC splitters offer excellent performances over wide wavelength range (1260~1620nm) at a temperature range
of -40~+85C. They feature low insertion loss and PDL, high return loss and directivity, and very good uniformity.
Applications include FTTx systems, PON and CATV networks.

According to application occasions, PLC splitter can be divided into,
Bare Device type PLC splitter,
Mini Module PLC splitter,
Modular (ABS Case) type PLC splitter,
Slot Box Type PLC Splitter,
ODF Tray type PLC splitter,
and Rack-mount type PLC splitter.



♦ Fiber Optic Splitter Specification

ITEM 1X2 1X4 1X8 1X16 1X32 1X64 2X2 2X4 2X8 2X16 2X32
Operating Wavelength(nm) 1260~1650
Insertion Loss (dB) Max. ≤4.0 ≤7.0 ≤10.4 ≤13.5 ≤17.0 ≤20.5 ≤4.0 ≤7.3 ≤10.6 ≤13.9 ≤17.2
Loss Uniformity (dB) Max. ≤0.6 ≤0.6 ≤0.8 ≤1.2 ≤1.5 ≤1.8 ≤0.8 ≤1.0 ≤1.0 ≤1.5 ≤2.0
PDL (dB) Max. ≤0.2 ≤0.2 ≤0.2 ≤0.3 ≤0.3 ≤0.3 ≤0.2 ≤0.2 ≤0.2 ≤0.3 ≤0.3
Directivity (dB) ≥55
Fiber Length (m) 1.2±0.1 , (Other Requirements Can Be Provide)
Fiber Type Corning SMF-28e, (Other Requirements Can Be Provide)
Operation Temperature℃ -40~+85


















♦ Application

- Optical communication system
- System and signal monitoring
- CATV Systems & Fiber Sensors
- Fiber to the home (FTTH)
- Network redundancy
- Laser splitting


♦ Environmental requirement


- Working temperature : -40℃~+85℃
- Relative humidity : ≤85% (+30℃)
- Atmospheric pressure : 70Kpa~106Kpa
- Main technical datasheet
- Insertion loss : ≤0.2dB
- UPC return loss : ≥50dB
- APC return loss : ≥60dB
- Life of insertion and extraction : >1000 times

Fiber optic PLC splitter technical specifications
Model name PLCS-65
Wavelength(nm) 1260-1650nm
Free Sample YES
Material PVC;ABS
Design OEM & ODM
Specifications A (2.4.8 port) : 60L*7W*4H mm
B (16 port ) : 60L*12W*4H mm
C (32 port ) : 80L*20W*6H mm
Connectors

FC, SC, ST , LC, LC/APC, SC/APC, MU and FC/APC
fiber optic connectors are available
Parameters 1x2 1x4 1x8 1x16 1x32 1x64 1x128
Insertion Loss (dB) ≤4.2 ≤7.4 ≤10.7 ≤13.9 ≤17.2 ≤21.5 ≤24
PDL (dB) ≤0.2 ≤0.2 ≤0.3 ≤0.3 ≤0.3 ≤0.4 ≤0.5
Uniformity (dB) ≤0.6 ≤0.8 ≤0.8 ≤1.0 ≤1.5 ≤2.0 ≤2.0
Return Loss (dB) ≥50
Directivity (dB) ≥55
Temperature Range (°C) -40~+75
Storage Temperature (°C) -40~+85
NOTE: The above parameter is for splitter with connector, if w/o connector, insertion loss will reduce by 0.2dB.


♦ Packing and Shipment

- Standard blister packing
- DHL, UPS and FEDEX or by ship.
