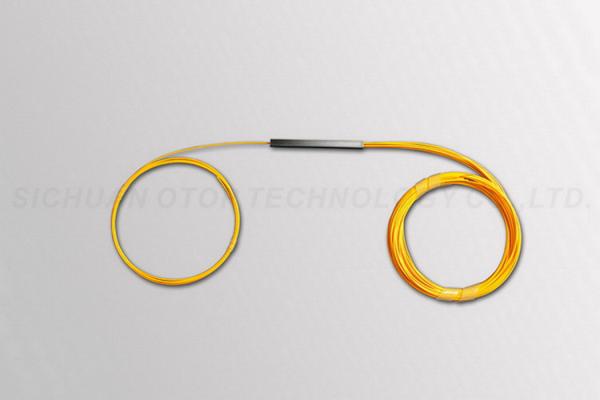

Mini Type Fiber Optic Splitter LSZH 1x8 PLC Coupler Max 10.4dB Insertion Loss
Mini Type Fiber Optic Splitter LSZH 1x8 PLC Coupler Max 10.4dB Insertion Loss
Specifications
Brand Name :
OTOP / OEM Accepted
Model Number :
2.0mm without connectors
Certification :
ROHS, SGS, Telcordia GR-1209 & GR-1221, ISO9001,ISO14000, OHSAS18001
Place of Origin :
China
MOQ :
5
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
10000 PCS per month
Delivery Time :
5-10 working days
Packaging Details :
Carton box
Origin :
China
Cable Type :
G657A or Customized
Insertion Loss :
Max. 10.4dB
Type :
1xN, 2xN, Fan-out PLC Splitter
Return loss (dB) :
≥ 55 / 60(dB)
Color :
yellow or Customized
Description

Mini Type Fiber Optic Splitter LSZH 1x8 PLC Coupler Max 10.4dB Insertion Loss


♦ Details


Optical coupler is an optical device that combines or splits power from optical fibers.
Optical splitter divides light from a single fiber into two or more fiber channels.

PLC Splitters offer excellent performances over wide wavelength range (1260~1620nm) at a temperature range
of -40~+85C. They feature low insertion loss and PDL, high return loss and directivity, and very good uniformity.
Applications include FTTx systems, PON and CATV networks.


♦ Fiber Optic Splitter Specification

ITEM 1X2 1X4 1X8 1X16 1X32 1X64 2X2 2X4 2X8 2X16 2X32
Operating Wavelength(nm) 1260~1650
Insertion Loss (dB) Max. ≤4.0 ≤7.0 ≤10.4 ≤13.5 ≤16.8 ≤20.5 ≤4.0 ≤7.3 ≤10.6 ≤13.9 ≤17.2
Loss Uniformity (dB) Max. ≤0.6 ≤0.6 ≤0.8 ≤1.2 ≤1.5 ≤1.8 ≤0.8 ≤1.0 ≤1.0 ≤1.5 ≤2.0
PDL (dB) Max. ≤0.2 ≤0.2 ≤0.2 ≤0.3 ≤0.3 ≤0.3 ≤0.2 ≤0.2 ≤0.2 ≤0.3 ≤0.3
Directivity (dB) ≥55
Fiber Length (m) 1.2±0.1 , (Other Requirements Can Be Provide)
Fiber Type Corning SMF-28e, (Other Requirements Can Be Provide)
Operation Temperature℃ -40~+85


















♦ Application

- FTTX networks
- PON networks
- CATV links
- Data Communication


♦ Insertion Loss

- Test Wavelength: 1310-1550 nm
- Required Value: P Grade
- Test can be performed on any channel


♦ Return Loss

- Test Wavelength: 1310-1550 nm
- Required Value:>50dB
- Test can be performed on any channel


♦ Directivity

- Test wavelength: 1310-1550 nm
- Required Value:>55 dB



♦ Packing and Shipment

- Standard blister packing
- DHL, UPS and FEDEX or by ship.

Mini Type Fiber Optic Splitter LSZH 1x8 PLC Coupler Max 10.4dB Insertion Loss



Fiber Optic PLC (planar lightwave circuit) splitter is fabricated by using silica optical waveguide technology. It features wide operating wavelength range, good channel-to-channel uniformity, high reliability and small size, and is widely used in PON networks to realize optical signal power management. We provide a whole series of 1 x N and 2 x N splitters that are tailored for specific applications. All products meet Telcordia 1209 and 1221 reliability requirements and are certified by TLC for network development requirement.
