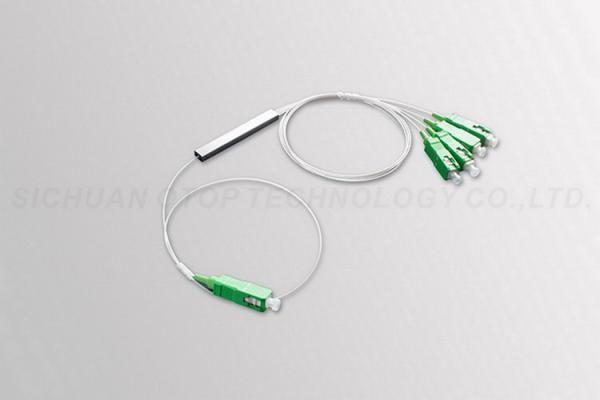

Passive Four Way Fiber Optic Splitter 900um Loose Tube For FTTH Network
Passive Four Way Fiber Optic Splitter 900um Loose Tube For FTTH Network
Passive Four Way Fiber Optic Splitter 900um Loose Tube For FTTH Network
Passive Four Way Fiber Optic Splitter 900um Loose Tube For FTTH Network
Specifications
Brand Name :
OTOP / OEM ODM Accepted
Model Number :
1xN Micro Type Fiber Optic Splitter
Certification :
ROHS, Telcordia GR-1209 & GR-1221, ISO9001,ISO14000, OHSAS18001
Place of Origin :
China
MOQ :
5
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
10000 PCS per month
Delivery Time :
5-10 working days
Packaging Details :
Carton box
Endface of Connector :
SC, FC, LC
Fiber Length :
1m
Mode :
Single Mode
Wavelength :
1260 - 1650nm
Trade Mark :
Otop
Description

Passive Four Way Fiber Optic Splitter 900um Loose Tube For FTTH Network

♦ FIber Optic Splitter Details

According to application occasions, PLC splitter can be divided into
- Bare Device type PLC splitter,
- Mini Module PLC splitter,
- Modular (ABS Case) type PLC splitter,
- Slot Box Type PLC Splitter,
- ODF Tray type PLC splitter,
- and Rack-mount type PLC splitter.

Otop provides a whole series of 1xN and 2xN splitters that are tailored for specific applications. All products meet YD/T1117-2001 All optical fiber branching device technical conditions, YD-T 2000-209 PLC Integrated optical devices PLC optical power splitter, etc., and are certified by TLC for network deployment.

♦ Specification

ITEM 1X2 1X4 1X8 1X16 1X32 1X64 2X2 2X4 2X8 2X16 2X32
Operating Wavelength(nm) 1260~1650
Insertion Loss (dB) Max. ≤4.0 ≤7.0 ≤10.4 ≤13.5 ≤17.0 ≤20.5 ≤4.0 ≤7.3 ≤10.6 ≤13.9 ≤17.2
Loss Uniformity (dB) Max. ≤0.6 ≤0.6 ≤0.8 ≤1.2 ≤1.5 ≤1.8 ≤0.8 ≤1.0 ≤1.0 ≤1.5 ≤2.0
PDL (dB) Max. ≤0.2 ≤0.2 ≤0.2 ≤0.3 ≤0.3 ≤0.3 ≤0.2 ≤0.2 ≤0.2 ≤0.3 ≤0.3
Directivity (dB) ≥55
Fiber Length (m) 1.2±0.1 , (Other Requirements Can Be Provide)
Fiber Type Corning SMF-28e, (Other Requirements Can Be Provide)
Operation Temperature℃ -40~+85

♦ PLC Splitter Application

- Splitting from OLT to building, each floor and single house.

- Passive optical networks

- Local Area Networks

- For net work of CATV.

- Test Equipment

♦ Fiber Optic Splitter Feature

- Low Insertion loss

- Low PDL

- Compact Design

- Good channel-to-channel uniformity

- Wide Operating Wavelength: 1260-1650nm

- Wide Operating Temperature: -40°C - 85°C

- High Reliability and Stability

♦ Our advantages


- As a world class manufacturer we can ensure you are getting world class quality at a competitive price.

- We pride ourselves on earning our clients repeat business. We ensure customer satisfaction by ensuring all out products meet world ISO 9001, SGS, CE standards and best manufacturing practices.

- We also pride ourselves by ensuring we give you our client the best service and experience dealing with a reputable manufacturer.

♦ Question and Answer

1.What is your MOQ?
Otop : Normally is 1pcs/item,could be coordinated if you have detail requirements.


2.How about your delivery date?
Otop: Delivery date is about 3-5days, it depends on the order quantity.


3.Can you supply sample for customers?
Otop: of course, however the delivery cost will be charged on customer's account


4.How about your price?
Otop: We are supplying products with very competitive price based on good performance.


5.Do you offer OEM Service ?
Otop: We accept OEM, ODM. The cable size and material are customized. Our own logo and own design are welcome. We will produce according to your requirment and description;

♦ Packing and Shipment

- Standard blister packing

- DHL, UPS and FEDEX or by ship.
