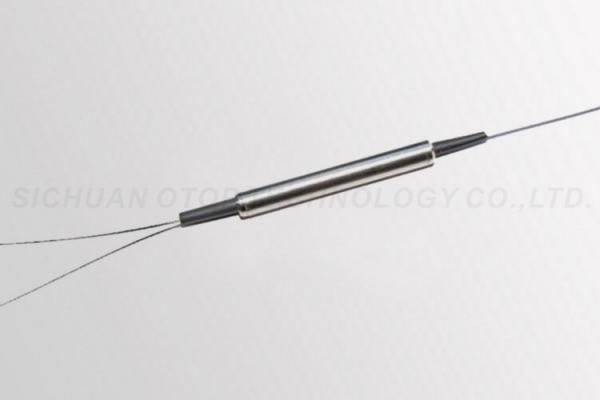

1490nm Splitter FBT Fiber Optic Splitter WDM Steel Tube for PON Networks
1490nm Splitter FBT Fiber Optic Splitter WDM Steel Tube for PON Networks
1490nm Splitter FBT Fiber Optic Splitter WDM Steel Tube for PON Networks
1490nm Splitter FBT Fiber Optic Splitter WDM Steel Tube for PON Networks
Specifications
Brand Name :
OTOP / OEM Accepted
Model Number :
WDM
Certification :
RoHS, Telcordia GR-1209 & GR-1221, ISO9001,ISO14000, OHSAS18001
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
10000 pcs per month
Delivery Time :
10 working days
Packaging Details :
Carton
Name :
FBT WDM
Wavelength :
1310/1490/1550nm
Directivity :
55 dB
Structure Type :
Steel Tube Type
Connectors :
SC FC LC / UPC APC Connector
Warranty :
2 Years
Description

1490nm Splitter FBT Fiber Optic Splitter WDM Steel Tube for PON Networks

♦ Feature
- Low Insertion Loss
- High Isolation
- Low PDL
- Compact Design
- Good channel-to-channel uniformity
- Wide Operating Wavelength: From 1260nm to 1620nm
- Wide Operating Temperature: From -40ºC to 85ºC
- High Reliability and Stability

♦ Applications

CWDM System

PON Networks

CATV Links

♦ Compliance

Telcordia GR-1209-CORE-2001

Telcordia GR-1221-CORE-1999

RoHS

♦ Specification

Ceter Wavelength 1310/1490/1550nm
Bandwidth ± 20nm ± 40nm
Exess Loss ≤ 0.1dB (0.05dB Typ.)
Coupling Ratio 50/50 40/60 30/70 20/80
Typ. Insertion Loss(dB) 3.05 4.2/2.4 5.4/1.8 7.1/1.1
Max. Insertion Loss(dB) 3.4 4.4/2.5 5.6/1.8 7.4/1.1
Polarization Sensitivity 0.1 0.1 0.15/0.1 0.15/0.1
Directivity (1*2) ≥55dB, (2*2) ≥60dB
Operating Temperature -40 ~ +80 °C
Storage Temperature -20 ~ +70 °C
Thermal Stability ≤ 0.1dB over -40 ~ +80 °C
Lead Length 1m, others on request
Lead Type Bare fiber, 0.9mm, 2.0mm, 3.0mm

♦ Advanced aluminum house with good heat Dissipation

♦ Full-GaAs MMIC application with low noise. Digital signal is received -18dBm at lowest and analogy signal -9dBm at lowest.

♦ AGC control range: 0~-9dBm, output level keep unchanged.

♦ Low power consumption, high-efficiency switch power can make sure the high reliability and stability of power supply. Power consumption less than 2W. It adopts optical detecting circuit.

♦ Multi-stage anti-thunder devices (TVS transient suppression diode), strictly anti-thunder system to ensure the safe operation of the equipment

♦ Built-in WDM,single-fiber to the home (1490/1310/1550nm) triple-play application can be realized.

♦ Built-in isolator can split the two optical waves (1490nm and 1310nm)

♦ Output gain adjustable (0~18dB),output level >80dBuV.It can realize the power supply of 8V input port feeding.

♦ One output or two outputs.
