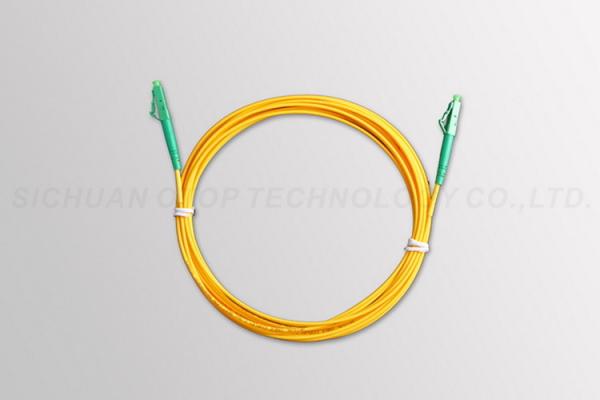

LZSH Lc To Lc Multimode Duplex Fiber Optic Patch Cable 1550nm Wavelength
LZSH Lc To Lc Multimode Duplex Fiber Optic Patch Cable 1550nm Wavelength
LZSH Lc To Lc Multimode Duplex Fiber Optic Patch Cable 1550nm Wavelength
LZSH Lc To Lc Multimode Duplex Fiber Optic Patch Cable 1550nm Wavelength
Specifications
Brand Name :
OTOP
Model Number :
LZSH LC - LC APC
Certification :
Telcordia GR-1209 & GR-1221, ISO9001,ISO14000, OHSAS18001
Place of Origin :
China
MOQ :
1000 pcs
Price :
Negotiable
Supply Ability :
200000pcs per month
Delivery Time :
5-8 working days
Packaging Details :
Carton
Name :
Fiber Optic Patch cord
Color :
Yellow
Mode :
Singlemode / Multimode
Application :
FTTH FTTB FTTX Network,For room equipment internal link,FTTH/Test equipments/TV/LAN/Telecommunication equipments
Wavelength :
1310nm or 1550nm
Quality control :
100% test before shipping
Description

LZSH Lc To Lc Multimode Duplex Fiber Optic Patch Cable 1550nm Wavelength


♦ Feature

Fiber Optic Patch Cord is important of optical network.they have same or different connectors which are installed on the end of fiber optic cable. The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.

Single mode and multi mode SC fiber optic patch cables, SC-LC, SC-ST, SC-FC, SC-MU, SC-MTRJ, SC-E2000, 9/125μm, 50/125μm, 62.5/125μm, SM, MM, simplex, duplex, UPC, APC, PC. Customized design cables are available.
The SC fiber optic patch cord is one of the earliest type and one of the most commonly used fiber optic cable, it is convenient to use and cost saving, It is the most cheapest type fiber optic patch cable. SC fiber patch is widely uesed in fiber optic networks. SC fiber patch cable is with zirconia sleeve and plastic housing.

(1) Ceramic Ferrule; (2) High return loss; (3) Low insertion loss; (4) Good repeatability and and exchangeability (5) Excellent Polished and 100% tested; (6) Complying with Telcordia ,GR-326-Core, IEC and RoHS Standard.


♦ Application

- FTTH
- Fiber optic data transmission
- Optical fiber communications system
- Optical fiber access networks(LAN)
- Optical fiber CATV
- Optical fiber test equipment
- Optical fiber data communication
- Optical fiber sensor

Fiber optic patch cord was widely used in all kinds of optical network solutions , such as Security , WAN, LAN, CATV, FTTH, Test Equipment.


♦ Specification

Parameters Standard Fiber Cable Assemblies
Fiber Type SM(G.652/G.657A) MM(OM1/OM2/OM3/OM4/OM5)
Jacket Materials LSZH/OFNR/PVC
Connector Type SC/LC/ST/LC/MU/DIN/SMA/MTRJ/MPO/E2000
Ferrule Materials Ceramic
Testing Wavelengths 1310±30/1550±30nm 850±30/1300±30nm
Insertion Losss(dB)
TIA/EIA-455-107		 ≤ 0.25dB
(PC/UPC/APC)		 ≤ 0.3dB
(PC/UPC)
Return Loss(dB)
TIA/EIA-455-107		 ≥50dB(PC/UPC)
≥60dB(APC)		 ≥40dB(PC/UPC)
Exchangeability ≤ 0.2dB
Cable Assemblies Pigtail/Simplex/Duplex/Fan-out Patchcord
Operating Temperature (° C) -10~ + 70
Storage Temperature (° C) -40 ~ +85
Package 1unit/bag
*All values specified are with connectors.



♦ Packing


- Plastic bag
